Pilots familiar with Digifly flight instruments love the sensitivity and speed of response of the our varios. All Digifly varios use "Intellivario Technology", a revolutionary system designed by Digifly which is based on the use of sophisticated digital filters to process information from the pressure sensor. This results in a a very sensitive vario which is also immune to radio interference. Uniquely, the Intellivario system is fully adjustable, allowing pilots to adjust the sensitivity their varios depending on the flying conditions.
The Archimede Plus' buttons are clearly labeled, so users new to Digifly will quickly feel at home navigating the setup menus and the three main display screens on this new vario. The large, clear LCD screen also makes for easy observation in flight and the new high power audio on the front panel means that pilots will have no difficulties hearing the loud vario tones.
Battery life on the Archimede Plus is excellent at over 200 hours on a single AA battery. The additional memory of the Archimede Plus provides a multi flight data logger of 100,000 data points. PC connectivity via the optional Digifly USB PC cable allows the download of your flight data to your PC for later analysis.
The Archimede Plus' software can also be updated via the USB PC cable allowing you to keep your flight instrument right up to date with the latest software improvements from Digifly. There is also extra peace of mind with an extended 3 year warranty.
NB. As photos of digital screens don't generally come out very well some of the images of Digifly Vario screens have been enhanced by Digifly which makes them look like they are back-lit, which they are not.
Digifly Archimede Plus Functions
STANDARD FUNCTIONS
- Impact resistant case (metal inside)
- Large clear LCD display

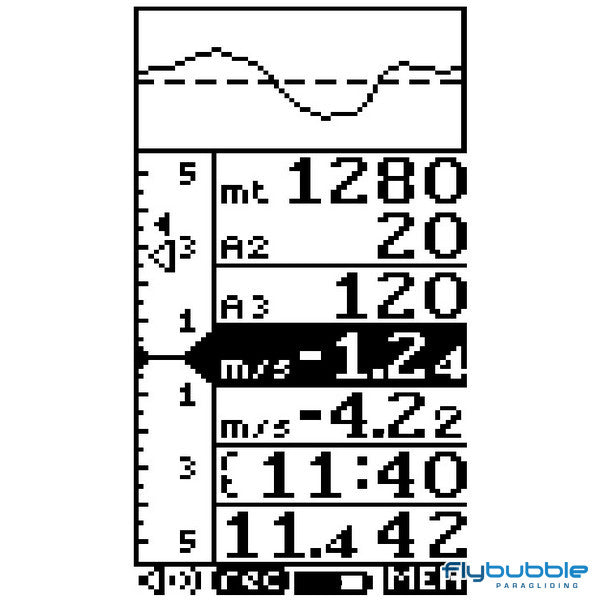

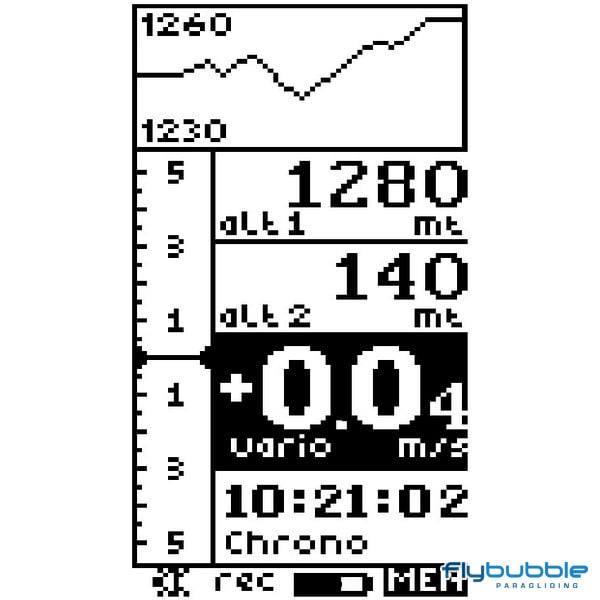

- Display screens: 3
- Contrast adjustment on display
- Multi function navigation buttons with silk screen help printing on buttons
- Multi language help menu
- Super fast vario
- IntelliVario dynamic filter
- Adjustable vario sensitivity
- High power audio on front panel
- Adjustable audio levels, volume & tone
- Analogue vario display
- Vario averager function (integrator)
- Digital vario display
- Graphic altimeter display
- Thermal centering display
- Altimeters: 3
- Pressure adjustment on altimeters
- Total energy compensation
- Total energy compensation pre settable
- Air speed (requires optional ASI)
- Adjustable stall alarm - visual & acoustic (requires optional ASI)
- Time display
- Temperature
- Chronograph
- Peak values recorder number flights: 1000
- Adjustable metric or imperial units
- Battery level display
- Rechargeable AA battery compatibility
- Updatable software via internet via optional PC USB or PC serial cable
- Vario "simulator" mode
ADVANCED FUNCTIONS
- Recorded flights: 1000
- Recorded flights
- Data logger capacity: 1000 data points
- Recording capacity: 28 hours at 1 data point / second. 1500 hours at 1 data point / min.
- Flight playback function
- IGC compatible data output
- Auto zero thermal altimeter
- Thermal sniffer
- Polar recorder
- Adjustable polars: 3
- Netto vario
- McCready function
- Adjustable McCready equivalent
- Speed to fly
- Efficiency indicator
TECHNICAL SPECIFICATIONS
- LCD display resolution: 128 pixels x 64 pixels
- PC connection speed: 115 kbps
- Primary battery: Single AA (1.2 V or 1.5 V)
- Battery life: 200 hours
- Weight: 160 g
- Size: 144 mm x 72 mm x 25 mm
- Altimeter resolution: 1 m (3 ft)
- Altimeter range: 9,000 m (30,000 ft)
- Analogue vario range: +/- 12 m/s (2,400 ft/min)
- Digital vario range: +/- 25 m/s (5,000 ft/min)
- Analogue vario resolution: 0.2 m/s (40 ft/min)
- Digital vario resolution: 1 cm/s (2 ft/min)
- Barometer range with user calibration: 300 mB - 1200 mB
- Temperature resolution: 1 °C (1 °F)
- Temperature range: -30 °C to +70 °C (-22 °F to +158 °F)
- Air speed indicator range (requires optional ASI): 150 km/h (93 mph)
- Digifly extended warranty: 3 years
Digifly Archimede Plus Accessories
ACCESSORIES INCLUDED
- AA 1.5V non-rechargable battery
- hook and loop fastener leg strap

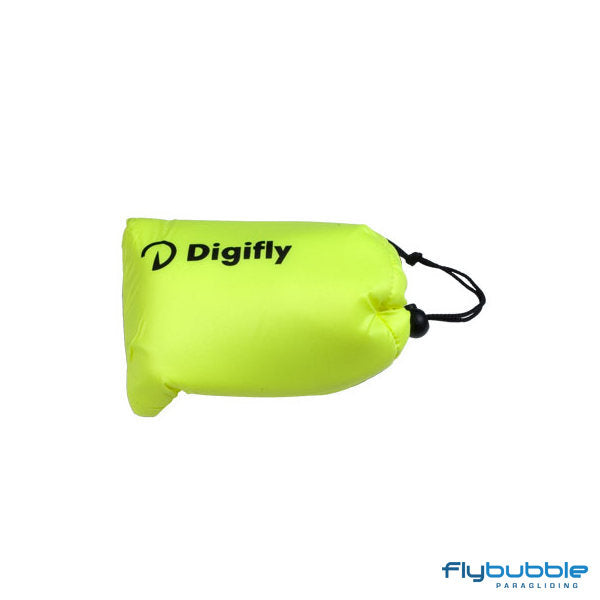

- Carrying case
OPTIONAL ACCESSORIES
- Paragliding mount
- Hang gliding mount
- Air speed indicator (bar/riser mount)
- Air speed indicator (trailing)
- USB PC cable
- Serial PC cable
