Ask about Gin Vantage 4
Product Details
Technical data
| SIZE | 22 | 24 | 26 | 28 |
|---|---|---|---|---|
| Weight range (kg) | 65-85 | 75-95 | 85-105 | 95-115 |
| Certified weight range (paramotor) (kg) | 85-110 | 95-120 | 105-135 | 115-150 |
| Extended weight (paramotor) (kg) | 120 | 130 | 145 | 160 |
| Flat area (m2) | 22.43 | 24.42 | 26.5 | 28.66 |
| Flat span (m) | 10.64 | 11.11 | 11.57 | 12.03 |
| Flat aspect ratio | 5.05 | 5.05 | 5.05 | 5.05 |
| Projected area (m2) | 19.29 | 21.00 | 22.79 | 24.65 |
| Projected span (m) | 8.46 | 8.84 | 9.20 | 9.57 |
| Projected aspect ratio | 3.72 | 3.72 | 3.72 | 3.72 |
| Chord (m) | 2.66 | 2.78 | 2.90 | 3.01 |
| Number of cells | 47 | 47 | 47 | 47 |
| Glider weight (kg) | 4.4 | 4.6 | 4.8 | 5.0 |
| Extended weight (kg) | - | 100 | 110 | 120 |
| Certification | EN B | EN B | EN B | EN B |
| Certification (paramotor) (kg) | DGAC | DGAC | DGAC | DGAC |
Colours
Standard colours: Red, Green
Package
- Wing
- Inner bag
- Compression strap
- GIN stickers
- Repair kit
Optional extras
- Tandem Spreaders
- Paragliding Backpacks
- Concertina Packing Bags
- Fast Packing Bags
- Speed Systems
- Clothing

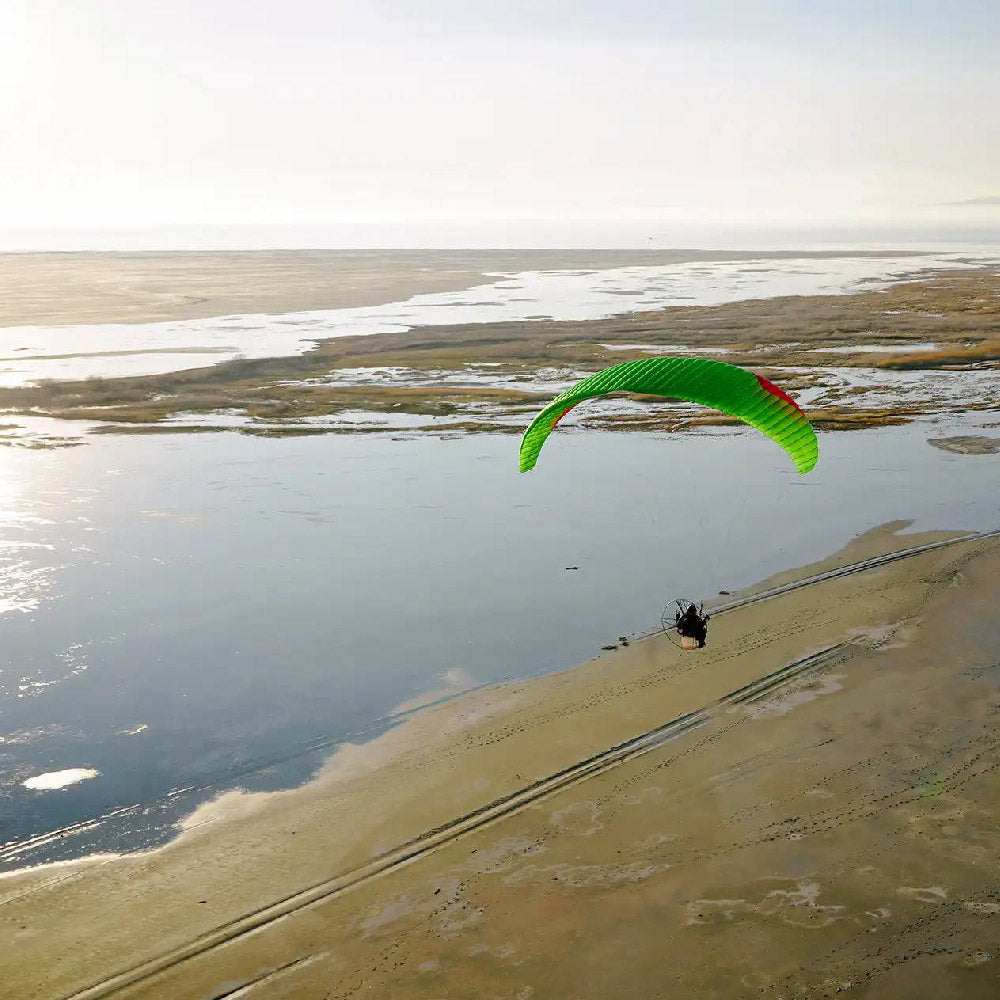

Vantage 4: THE ADVENTURE STARTS HERE
The Vantage, upgraded
Compared to its predecessor, the Vantage 4 has a new half rib Rigifoil construction, lighter Nitinol rods and optimised internal pressure. This has resulted in improvements in several areas: take-off, performance at speed, handling and roll stability.
Outstanding take-off
Due to the incredibly clean leading edge achieved with the new Rigifoil, the take-off behaviour is first class. The wing comes up easily in all conditions and configurations with no overshooting. Short take-offs and tricky wind conditions are handled with confidence and composure.
Improved performance at speed
The cleaner leading edge also contributes to greater performance, especially at speed.
Direct and precise handling
The optimised internal pressure supports a direct and precise feeling on the brakes, making it simple to co-ordinate efficient turns. The wing offers a lot of fun despite its accessibility.
Increased roll stability
The Vantage 4 features an updated line configuration which helps significantly reduce unwanted roll behaviour with a wider range of set-ups.
Light, compact and durable
The Vantage 4 features Nitinol rods which are light, compact and able to be bent easily. The canopy fabric and line materials are intelligently mixed according to function and wear at different points.
Upgraded trim riser
The new trim riser now features an 85 mm range, providing maximum versatility in all conditions.
Free-flight ready
As the Vantage 4 is based on our free flying wing the Calypso 2, it can also be used as a confidence-inspiring wing for free flying where national regulations allow. It’s perfect for paramotor pilots taking their first steps without a motor and learning to thermal and even go XC. Additionally, it includes a system for replacing the trim webbing, ensuring greater convenience and durability. Its length has been shortened compared to its predecessor, allowing for easier handling both on the ground and in the air.
Light-trike ready
The easy inflation and take-off characteristics also make the Vantage 4 ideal for light trike use.
Features
- Half rib Rigifoil for enhanced stability and performance
- 3 line risers, 2 lines spanwise for simplicity and performance
- Easy Big Ears system
- Re-designed risers with 85mm trimmer way
- Combination of unsheathed and sheathed aramid and dyneema lines
- Lightweight mini-ribs on the trailing edge
Materials
Canopy cloth
Upper surface leading edge: Dominco 30DMF
Upper surface: Myungjin Textile MJ32 MF
Lower surface: Myungjin Textile MJ29 MF
Risers
Aramid / Polyester Cousin 02-/2mm BLK
Lines
Upper: Dyneema DSL 70 | PPSL120 | PPSL65
Middle: Dyneema PPSL 160 | 200
Main: Dyneema | Aramid PPSL 275 | 350 TGL220
