Product Details
Technical data
| Sizes | 22 | 24 | 26 | 28 | 31 | |
|---|---|---|---|---|---|---|
| Certified takeoff weight | kg | 50-80 | 60-95 | 70-110 | 85-125 | 100-145 |
| Ideal weight range | kg | 58-68 | 68-80 | 80-95 | 95-110 | 110-130 |
| Paramotor takeoff weight | kg | 50-120 | 60-135 | 70-155 | 85-180 | 100-210 |
| Flat surface | m2 | 21.57 | 23.66 | 25.86 | 28.36 | 31.85 |
| Projected surface | m2 | 18.63 | 20.44 | 22.13 | 24.26 | 27.25 |
| Weight (8 DLS) | kg | 3.60 | 3.85 | 4.15 | 4.50 | 4.95 |
| Flat span | m | 10.26 | 10.75 | 11.23 | 11.76 | 12.47 |
| Projected span | m | 8.25 | 8.64 | 8.93 | 9.35 | 9.91 |
| Aspect ratio | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | |
| Projected aspect ratio | 3.7 | 3.7 | 3.7 | 3.7 | 3.7 | |
| Max. chord | m | 2.59 | 2.71 | 2.83 | 2.97 | 3.14 |
| Number of cells | 38 | 38 | 38 | 38 | 38 | |
| Certification * | EN/LTF A | EN/LTF A | EN/LTF A | EN/LTF A | EN/LTF A | |
*All five sizes of the ALPHA 8 Classic are EN/LTF A certified for paragliding and also DGAC certified for paramotoring.
Seamless weight ranges
The Seamless Weight Ranges of the ALPHA make a clear transition from one wing size to the next, so that any pilot suits only one ideal take-off weight range. In this way, the ALPHA guarantees the optimum balance of useful airspeed and climb performance in all flying conditions. Like its predecessor, the ALPHA Series also has an extended weight range of up to 15 kg in each size.
Colours

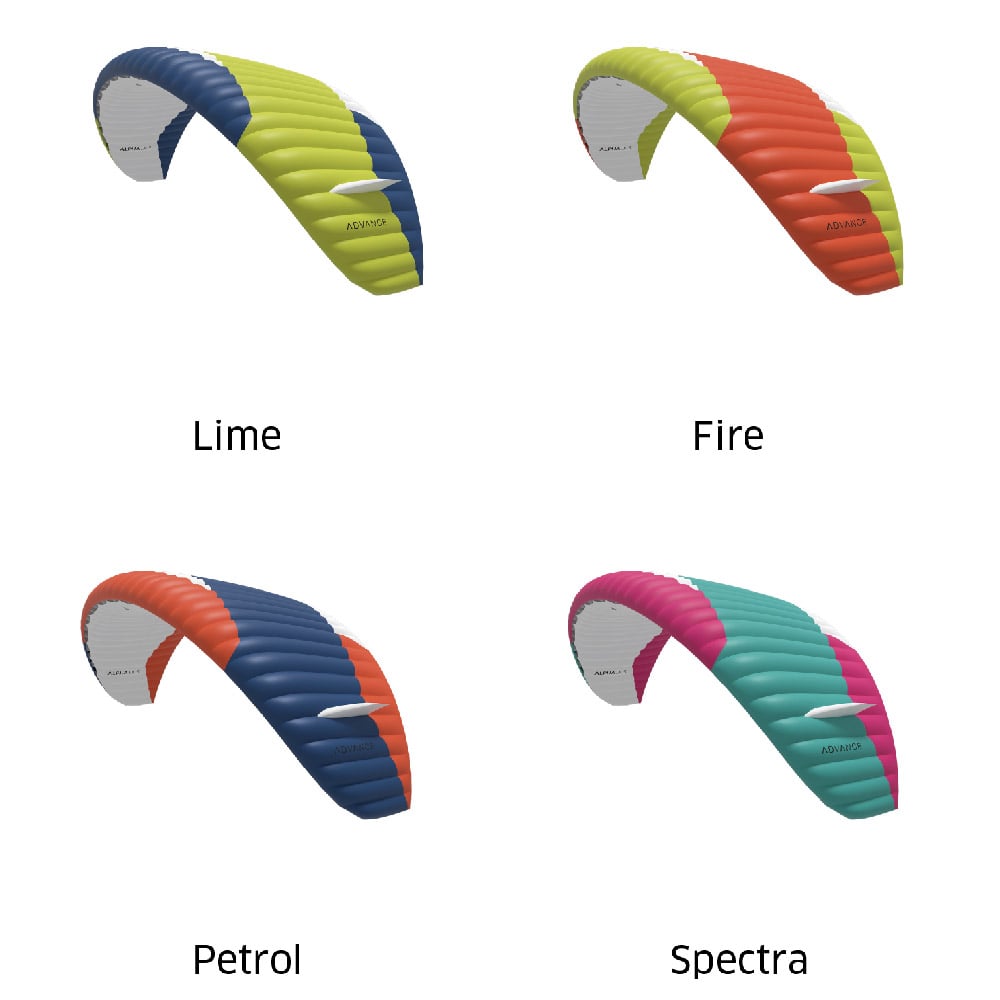

Standard colours: Lime, Fire, Petrol, Spectra
Custom colours: Choose your colours and email us the colour reference with your order. Include a screenshot if you can. Full payment required upfront to confirm your order after which it cannot be cancelled.
Package
- Wing
- COMPRESSBAG DLS inner bag
- Mini windsock
- Repair kit
Related Products (optional extras)
- Advance LIGHTPACK DLS
- Advance FLATBAG DLS
- Fast Packing Bags
- Speed Systems
- Clothing

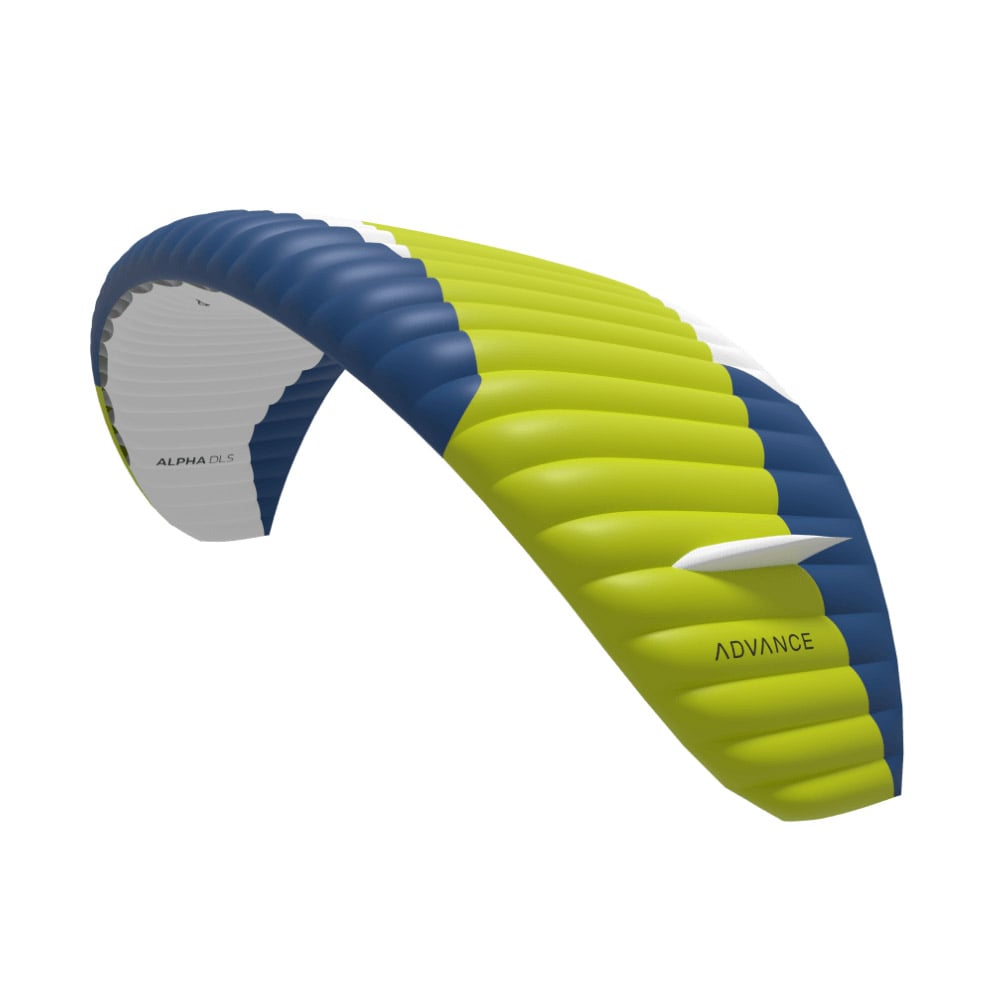

ALPHA 8: a light and compact DLS version
EASY - Lift off with ease

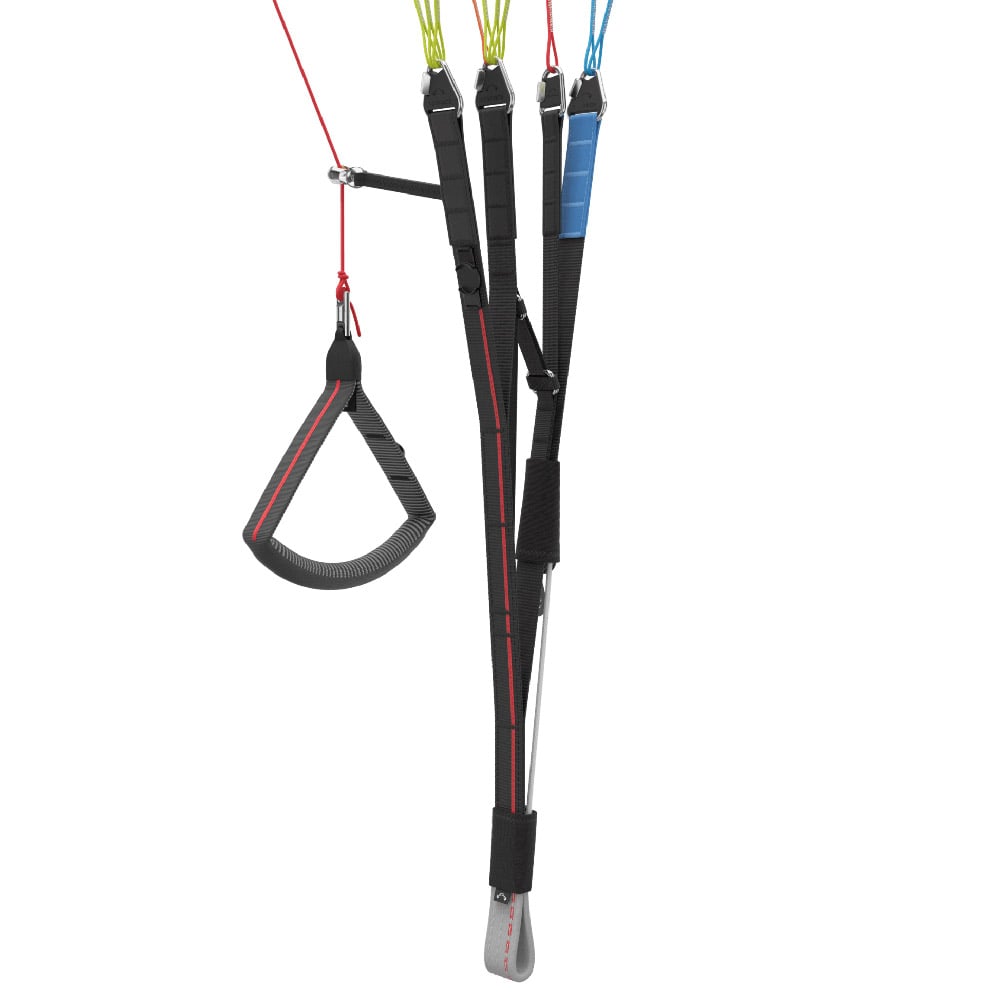

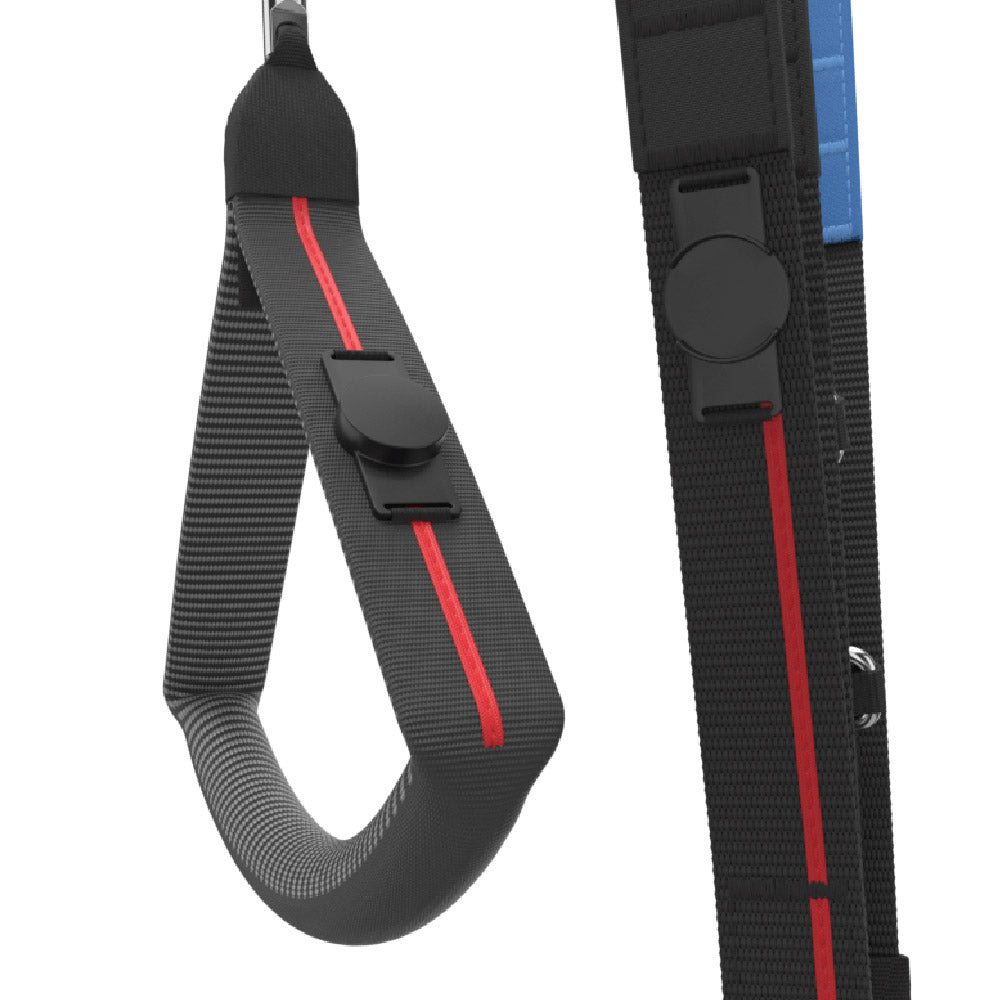

The ALPHA series stands out with its clear line setup and colour-coded risers and brake handles, making ground handling especially intuitive. The wing launches effortlessly and is exceptionally easy to fly, thanks to its balanced pitch and roll behaviour.
SAFE - Total confidence
With features like extended brake travel, the ALPHA series offers exceptional safety margins. This allows you to gradually explore new manoeuvres and tackle challenges with ease. Thanks to its high turbulence absorption, you’ll enjoy a smooth and steady flight every time.
FUN - Joy of flying
The responsive, dynamic handling combined with high passive safety makes flying pure fun. With the versatile ALPHA DLS, you can embark on Hike & Fly adventures and travel with confidence and ease.
Technology & features
LIGHT AND VERSATILE

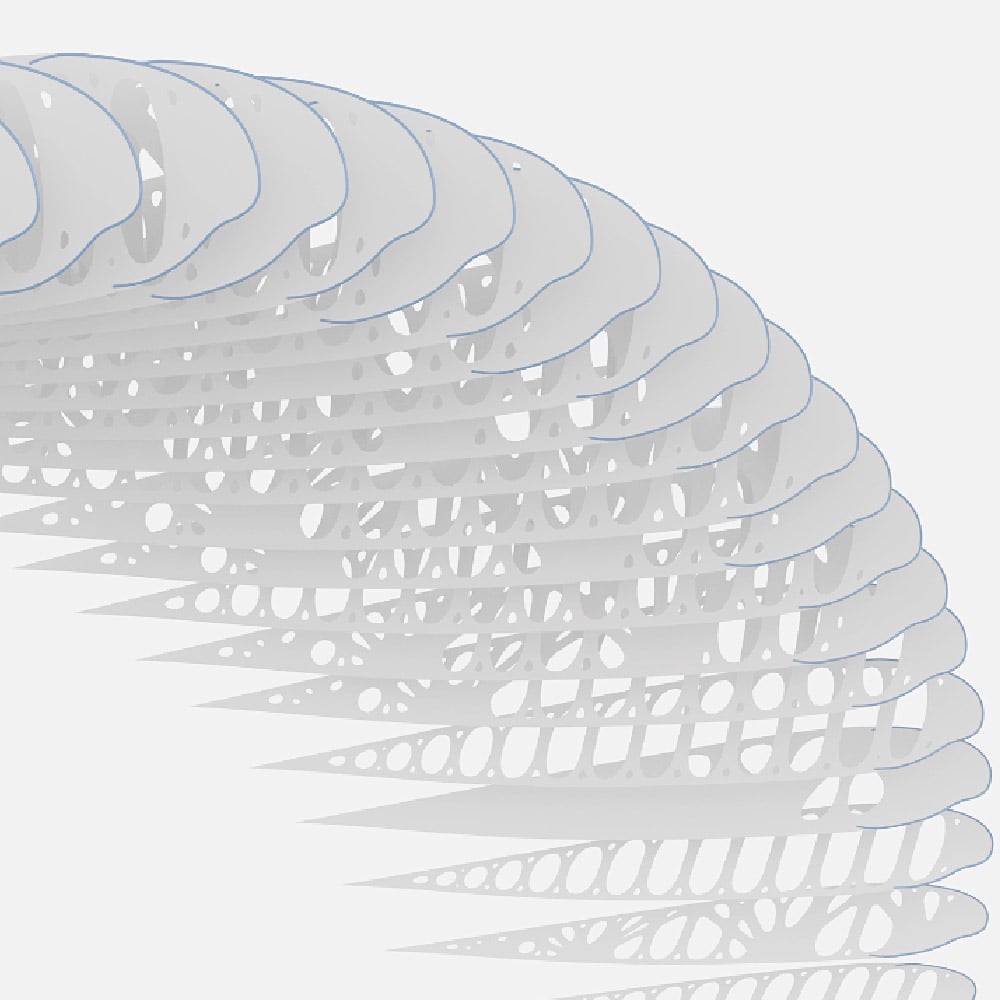

DLS combines structural innovations with a unique material mix. This development philosophy includes a range of small yet crucial measures that collectively result in a significant weight reduction. Robustness and durability remain at the consistently high standard you expect.
MAXIMUM PASSIVE SAFETY
The profile has state-of-the-art Air Scoop technology, offering higher maximum lift, which delays airflow separation. Progressive brake pressure provides a clear and noticeable warning as you approach the stall point.
ENHANCED PERFORMANCE

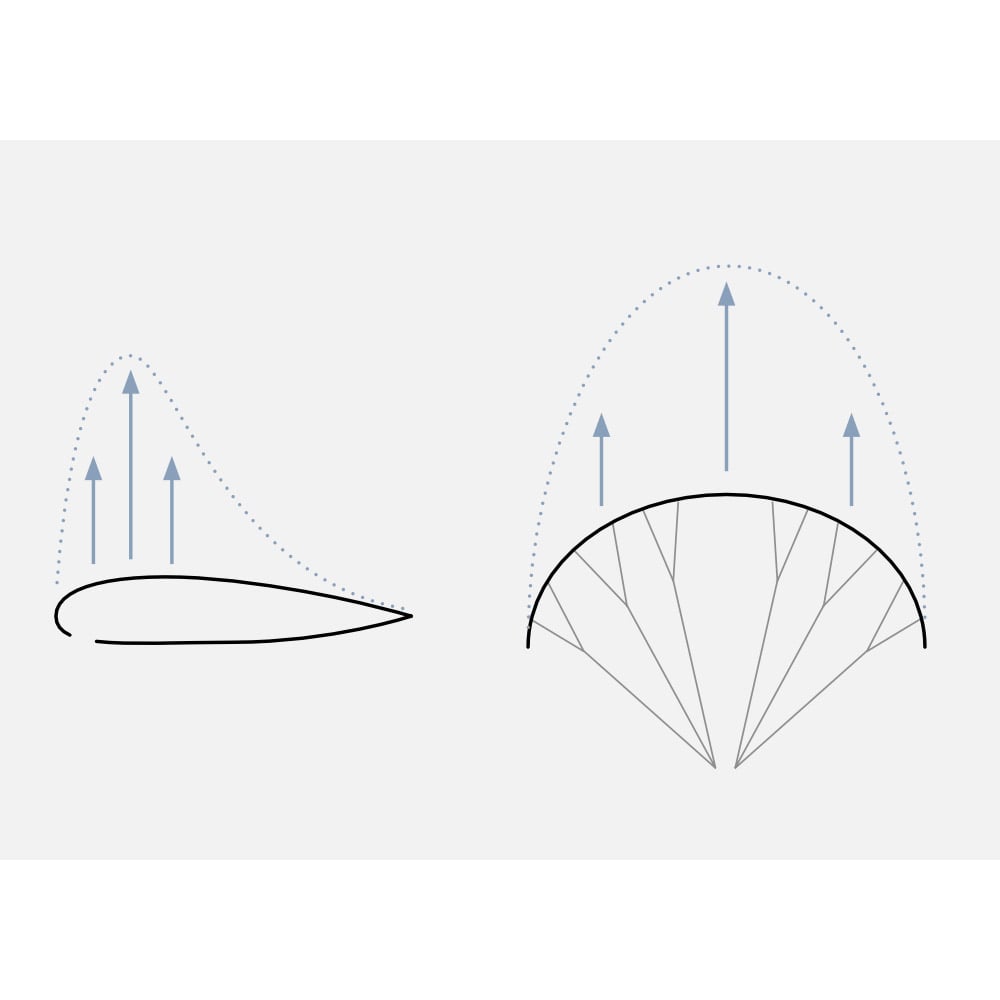

The new profile gives the ALPHA series a performance boost of up to 15 %. With improved pressure distribution along the chord, it delivers optimal pitch behaviour and increased efficiency. The DLS version takes this even further, achieving even better glide performance through further drag reduction compared to the classic version.
TAILORED HIGH-END MATERIAL MIX

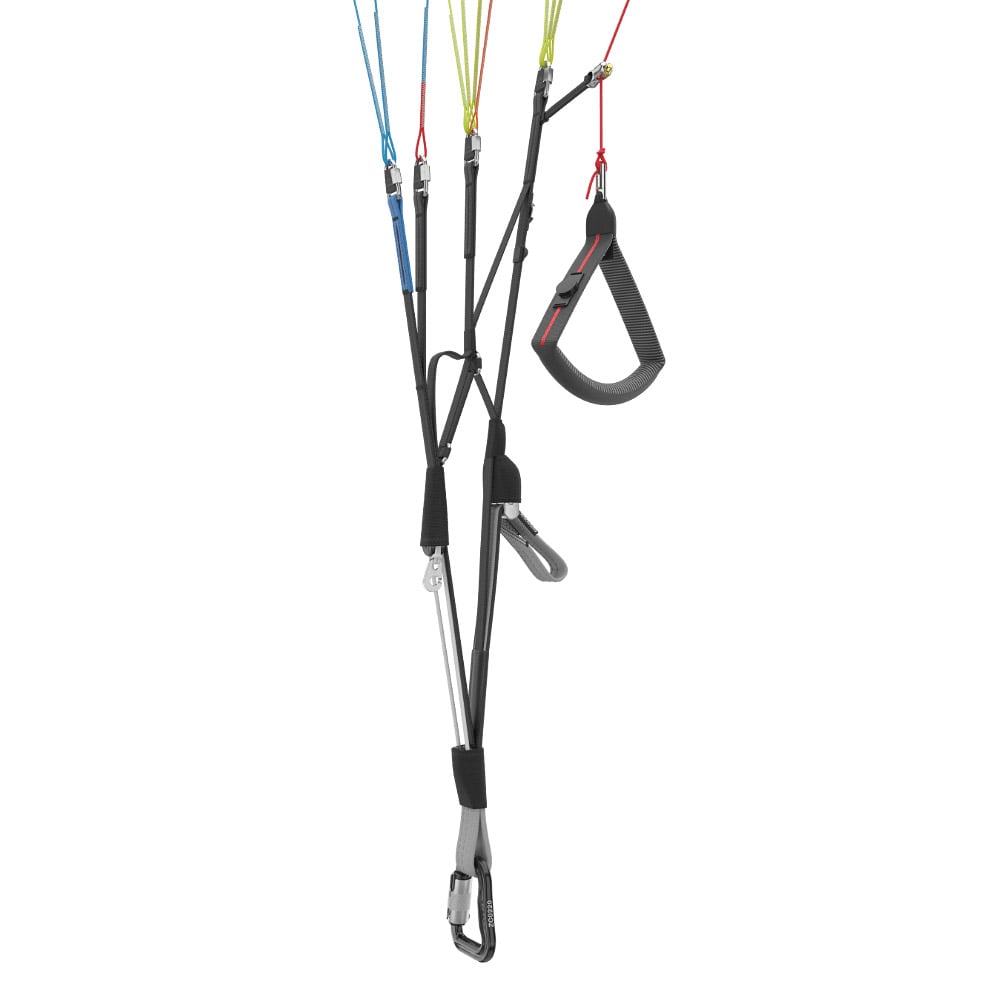

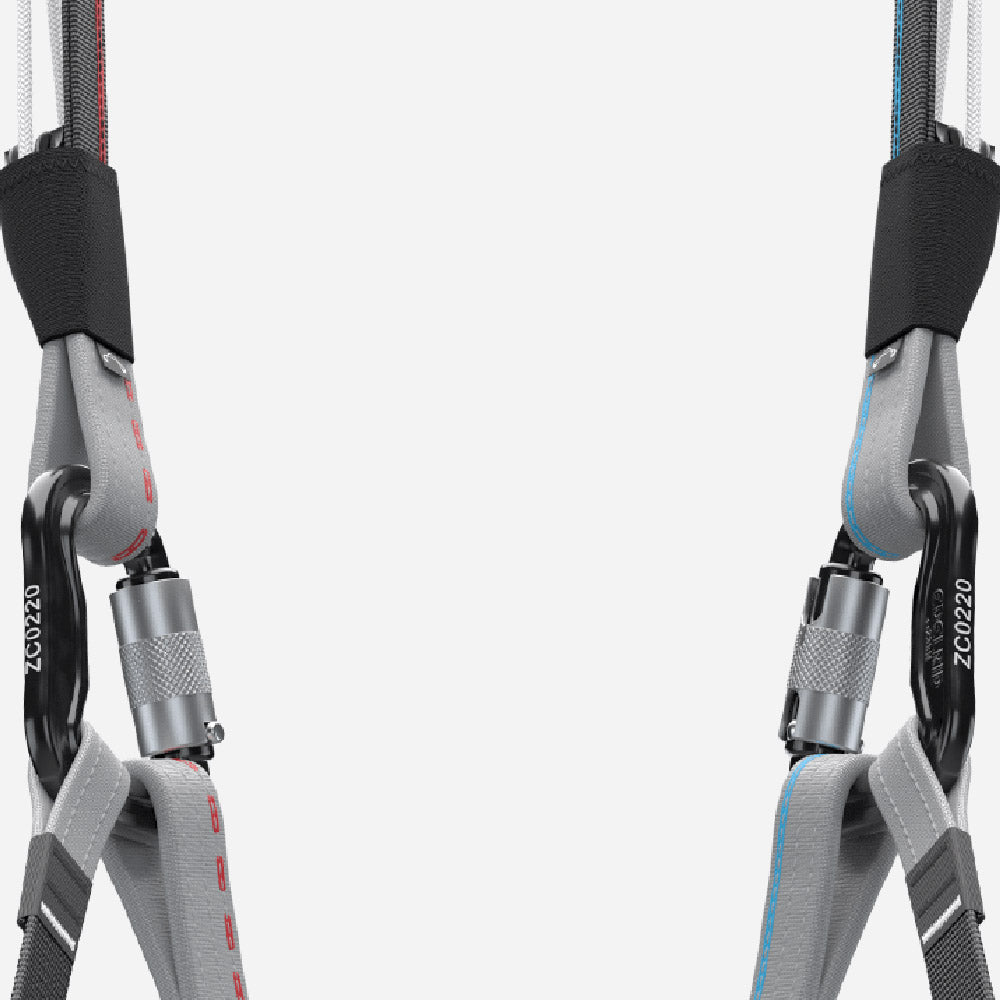

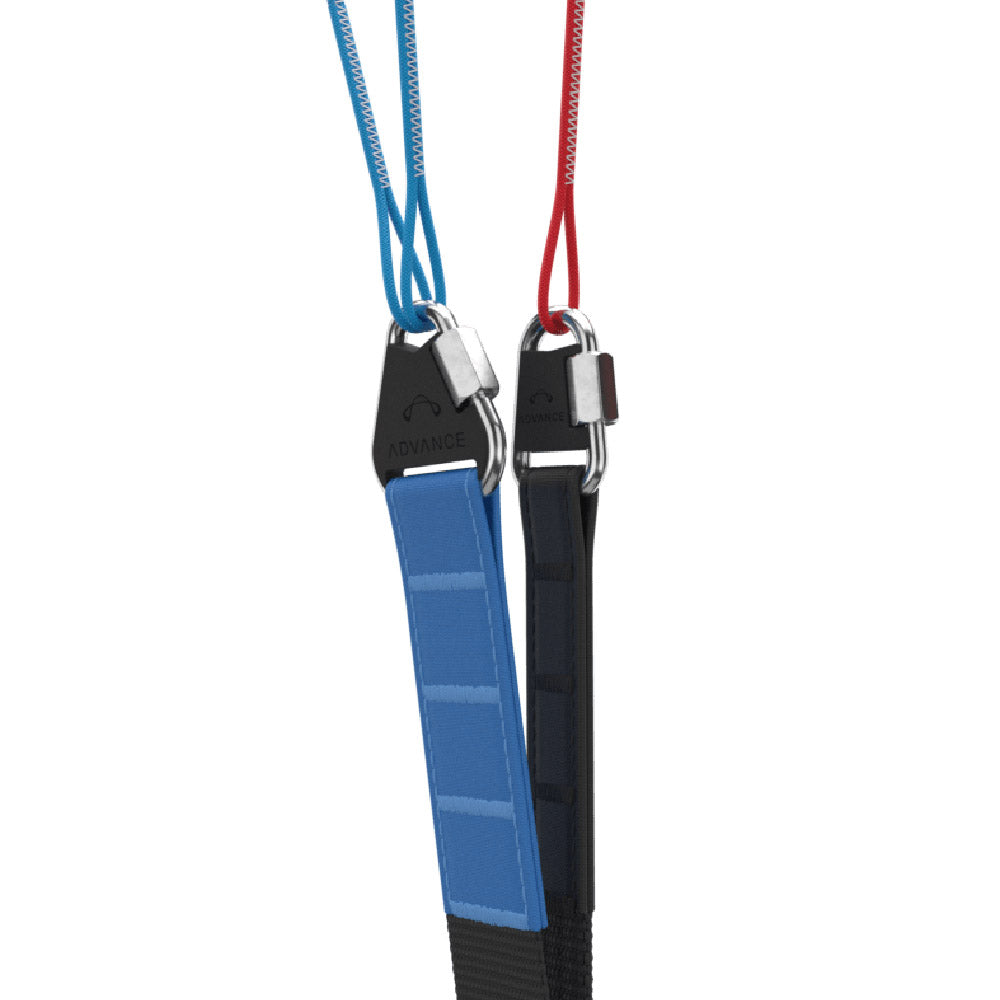

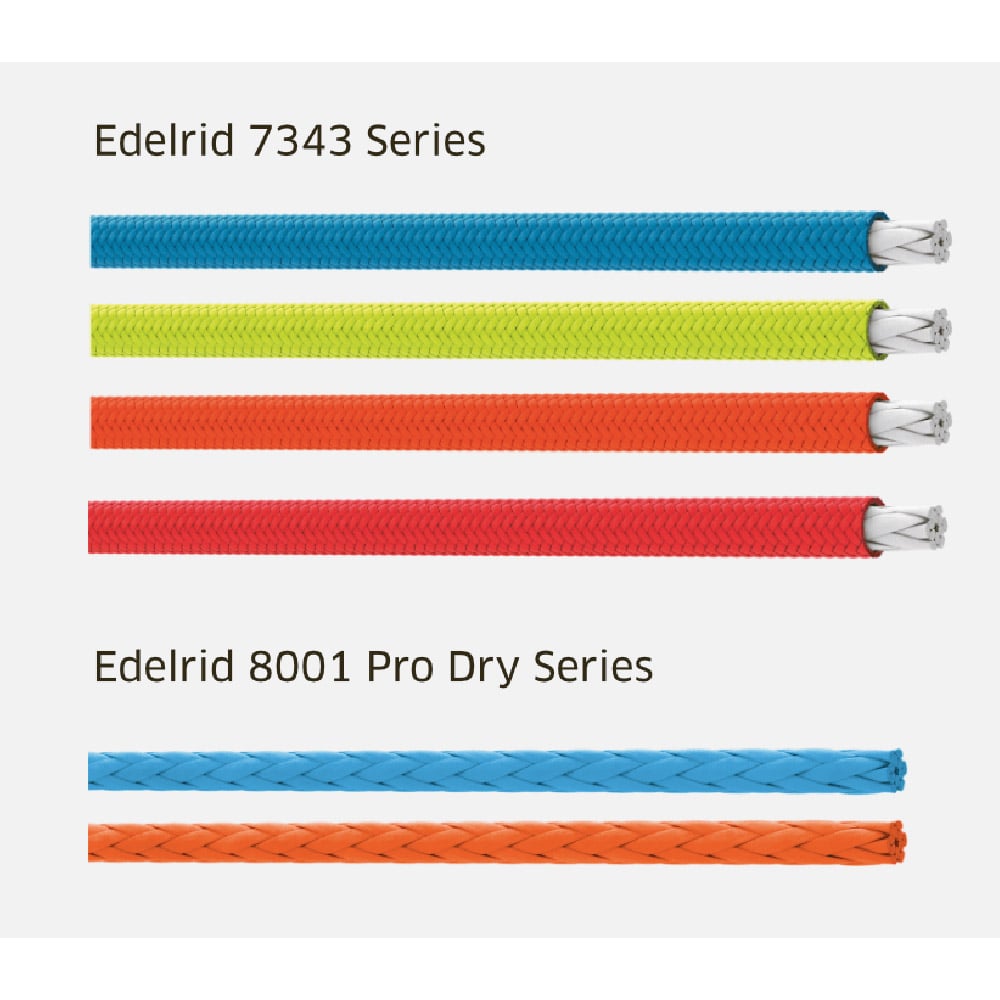

The ALPHA DLS uses slimmer risers and high-quality unsheathed ProDry lines in the gallery. The different coloured lines are extremely stable in length, extremely water-repellent and offer above-average tear resistance even after long periods of use.
Materials
Wing materials
| Leading edge | Skytex 38 universal |
|---|---|
| Upper surface | Skytex 38 universal |
| Lower surface | Skytex 27 classic II |
| Designstripe | Skytex 32 universal |
| Trailing edge | Skytex 32 universal |
| Profiles | Skytex 40 hard finish, Skytex 32 hard finish |
| Unsuspended profiles | Skytex 40 hard finish, Skytex 32 hard finish |
| Diagonals | Skytex 40 hard finish, Skytex 32 hard finish |
| Tension tapes | Skytex 40 hard finish, Skytex 32 hard finish |
Line and riser materials
| Main lines | A-7343-340, -280, -230, -190, -140 |
|---|---|
| Gallery lines | A-8001-190, -130, -090, -070, -050 |
| Brake lines | DSL 070, DFL 115 |
| Steering lines | A-7850-240 |
| Stabilo | A-7343-140 |
| Risers | PES/Technora 12mm |

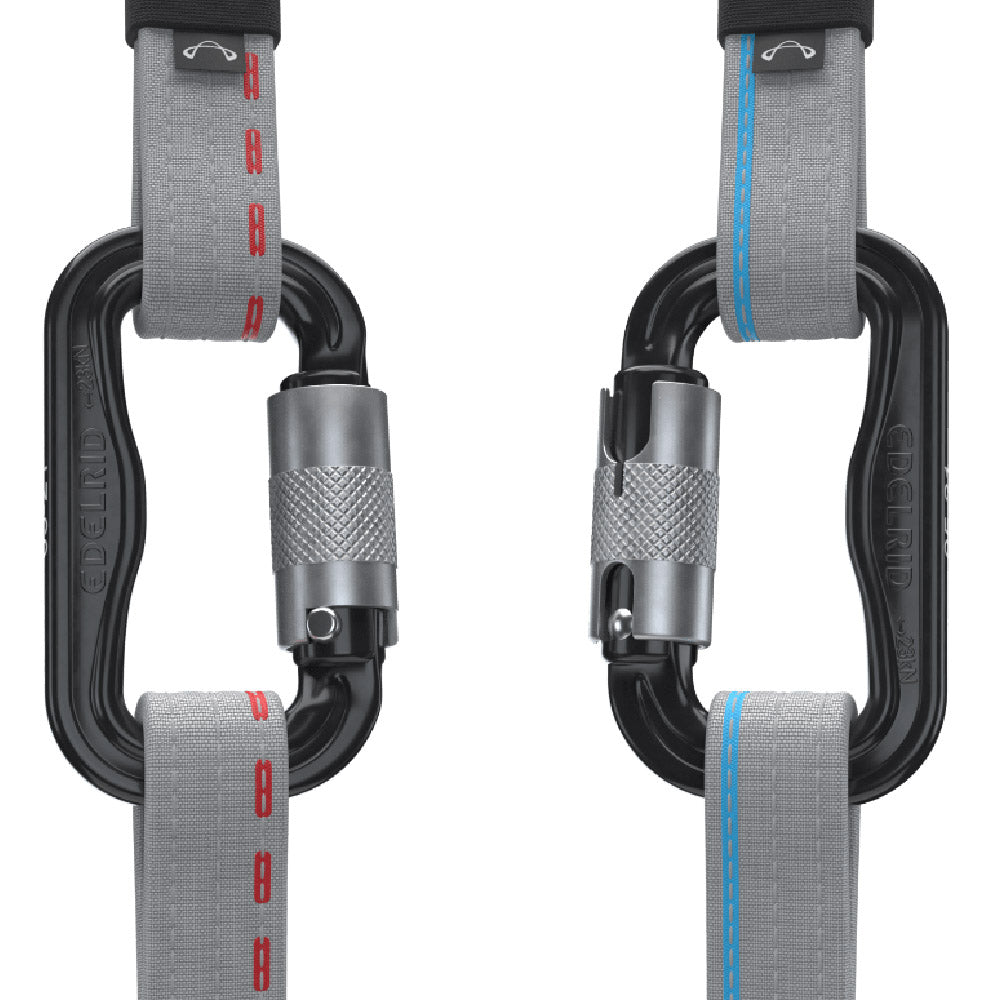

| Quick links | MR Delta 3.5mm / S12 |
Advance product registration
Register your Advance product here.
Downloads
See Advance downloads.
