Ask about Ozone Dragonfly
Product Details
Technical data
| sizes | 14 | 16 | 18 |
|---|---|---|---|
| In-flight Weight Range (kg) | 50 - 105 | 50 - 120 | 50 - 120 |
| Number of cells | 27 | 27 | 27 |
| Projected area (m2) | 12.50 | 14.23 | 16.31 |
| Flat Area (m^2) | 14 | 15.98 | 18.32 |
| Projected Span (m) | 6.20 | 6.62 | 7.09 |
| Flat Span (m) | 7.36 | 7.86 | 8.42 |
| Projected Aspect Ratio | 3.10 | 3.09 | 3.1 |
| Flat Aspect Ratio | 3.87 | 3.87 | 3.87 |
| Root Chord (m) | 2.29 | 2.44 | 2.61 |
| Glider Weight (kg) * | - | 3.0 | 3.3 |
| Load test (8g) | EN-926 | EN-926 | EN-926 |
* Wing weight may vary up to 50g per size due to slight variations in the manufacturing of the fabric used.

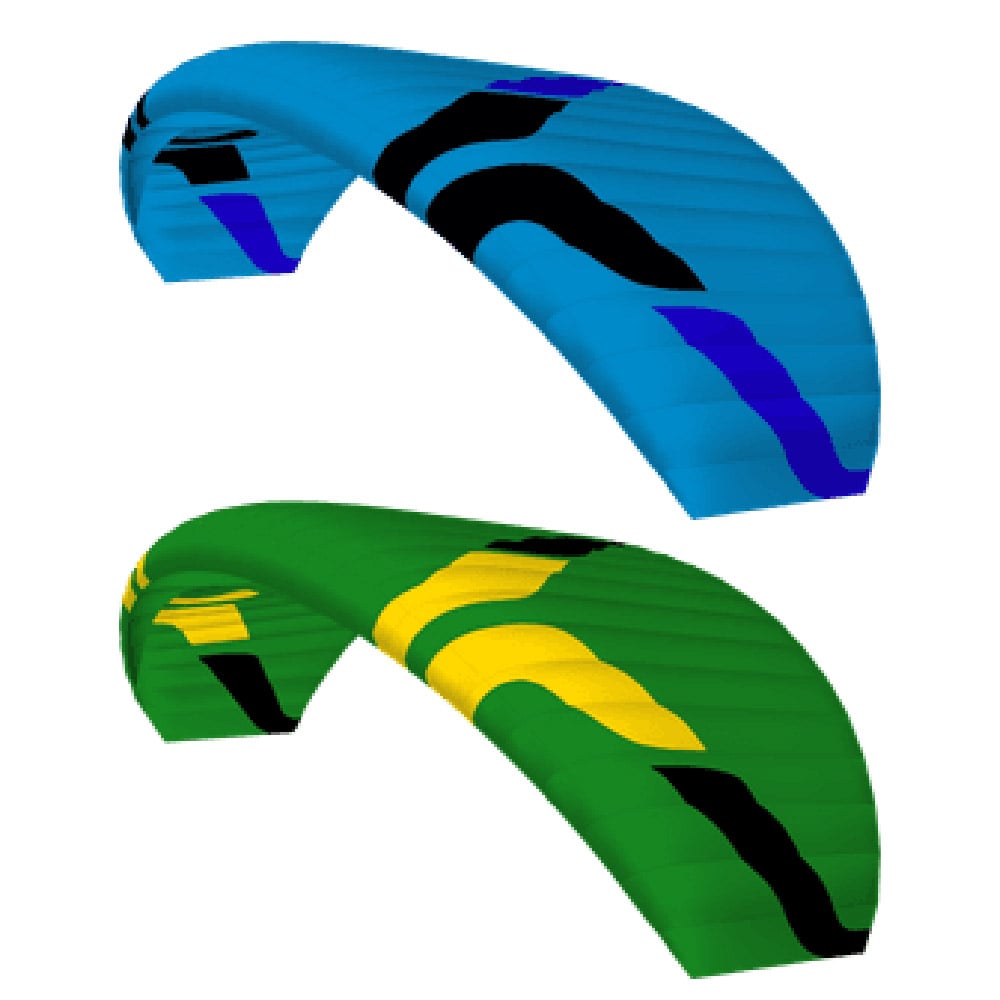

Colours
Standard colours (Ozone colour codes): IKB/I, CUK/C.
Custom colours: Choose your colours and email us the colour reference with your order. Include a screenshot if you can. Full payment required upfront to confirm your order after which it cannot be cancelled.
Package
Your OZONE wing is delivered standard with the following accessories: Speed Wing XL bag, Inner Bag, Glider Strap, Speed Bar, Stickers, Repair Cloth, Keyring.
Related Products (optional extras)
- Saucisse Bag (video) (concertina packing bag)
- Glider Backpack
- Easy Bag (quick stuff sack)
- OZONE Clothing and Accessories.
Ozone production times
Ozone wings are made to order. Ozone gives their current approximate production time on their website in working days, for example: "The current production time is approximately 31 days from order to shipping". Add 1-3 weeks for shipping, and allow for unexpected delays. Some may claim shorter delivery times however we're unsure how they can supply faster than the manufacturer themselves can produce and ship! ;-)
Ozone Dragonfly: maximum stability & fun
- Totally new profile & planform
- Easier launch, improved handling
- Excellent flare performance for easy landings
- Improved brake range
The Launch
The DragonFly launch is light and immediate in no wind conditions, and forgiving in high wind. Thanks to re-positioned cell openings and the new profile, it is even better suited to speed flying instruction and beginner use.
Handling
More dynamic, yet roll stable and forgiving, it has a direct and predictable feel in the brakes. The roll rate feels responsive, but is never surprising. The DragonFly’s high level of passive safety is not only found in collapse resistance, but also in the fun yet forgiving handling.
Glide Performance & Trim Range
Thanks to an increased trim range, the DragonFly’s glide performance is greater than the FireFly, and it also has a higher top speed. It all adds up to the ability to fly in a wider range of conditions and sites! Reach more distant LZs, and fly in more wind, comfortably.
The Pilot
This is a wing for pilots of all skill levels who want a solid, stable, all around wing – the DragonFly is a reliable partner for your first speed flights and for larger pilots. Available in two sizes, 16m and 18m, the weight range goes up to 120 kg.
Materials
- Top Surface Cloth: Dominico 30D
- Bottom Surface Cloth: Dominico N20D
- Rib cloth: Dominico 30D MF (hard)
- Upper lines: Liros DSL serie
- Mid lines: Liros DSL serie
- Lower Lines: Edelrid 6843 serie
