Product Details
Technical data
| SIZE | SMALL | MEDIUM | LARGE |
|---|---|---|---|
| pilot height range (cm) | 160-176 | 173-186 | 183-194 |
| total weight of all parts (kg)* | 8.09 | 8.15 | 8.25 |
| Load Test: Max weight | 120 | 120 | 120 |
| EN certification | Yes | Yes | Yes |
*Weights may vary up to 50gm per size due to slight variations in the manufacturing of the fabric used.

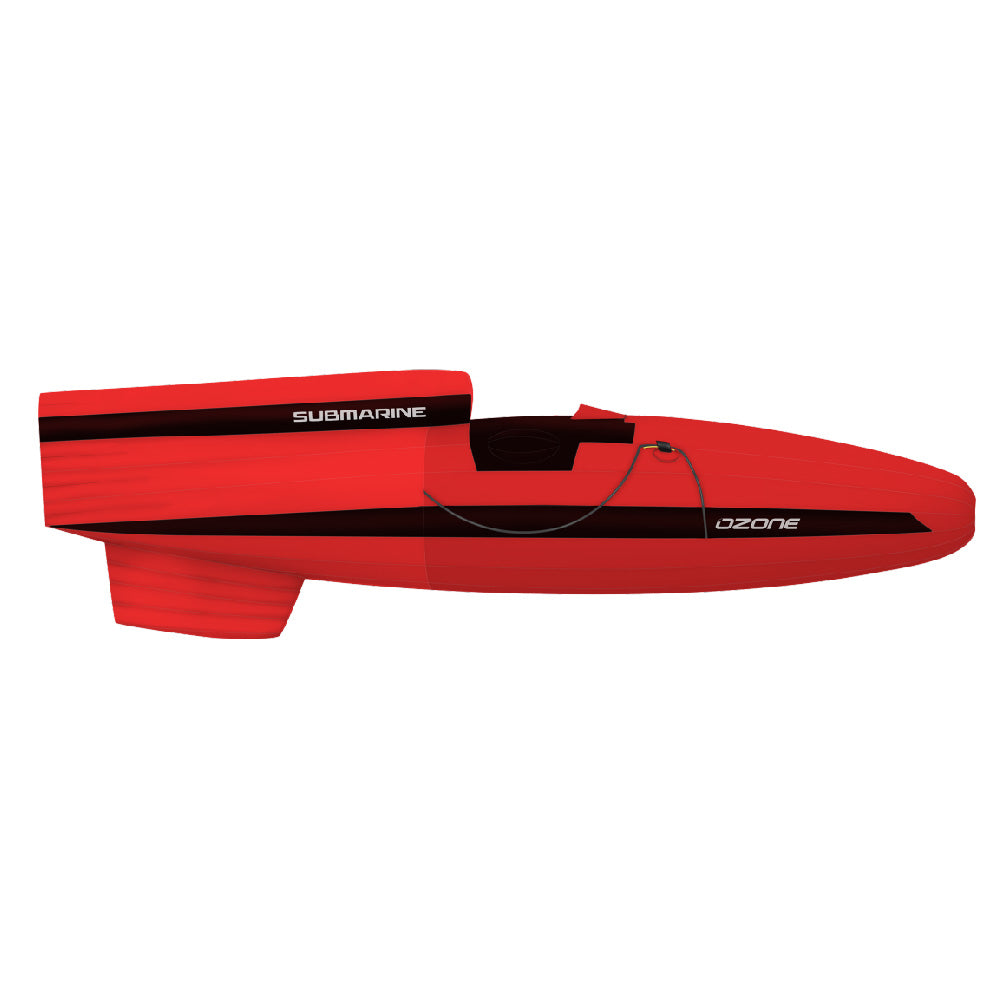

Colours

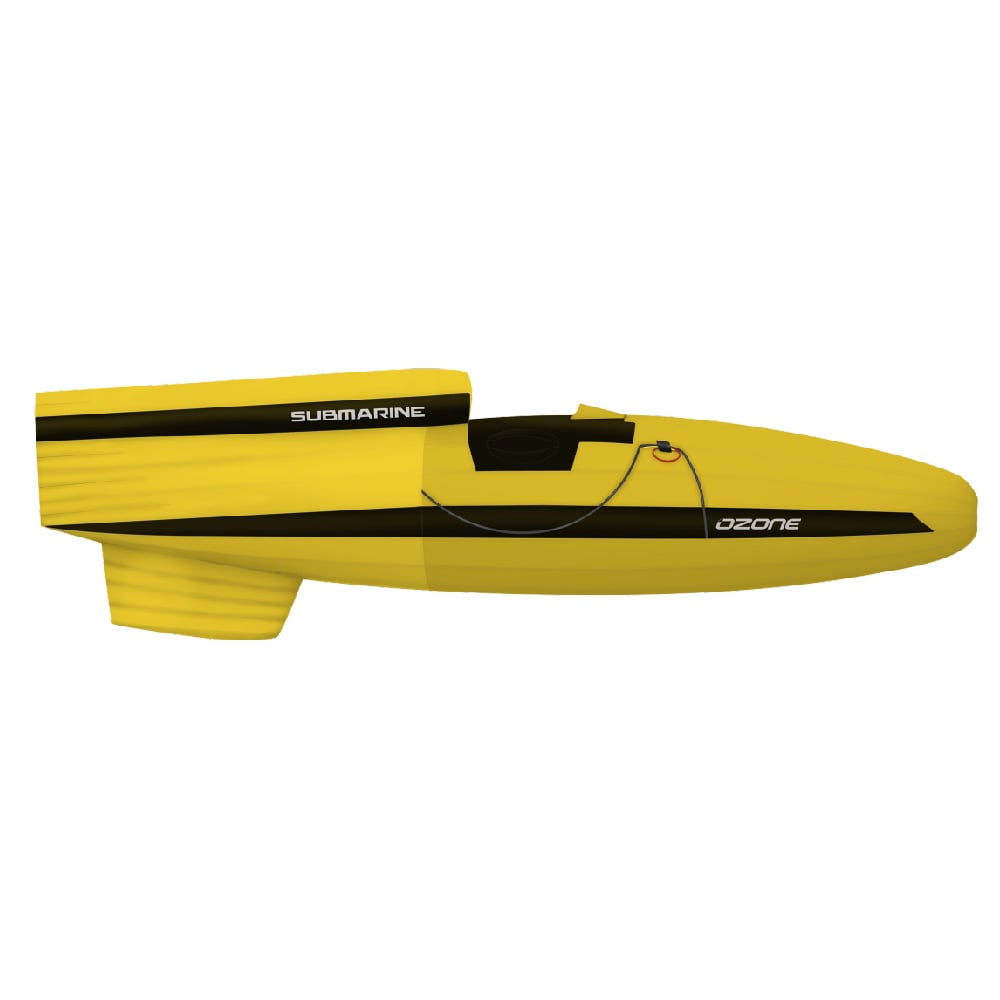

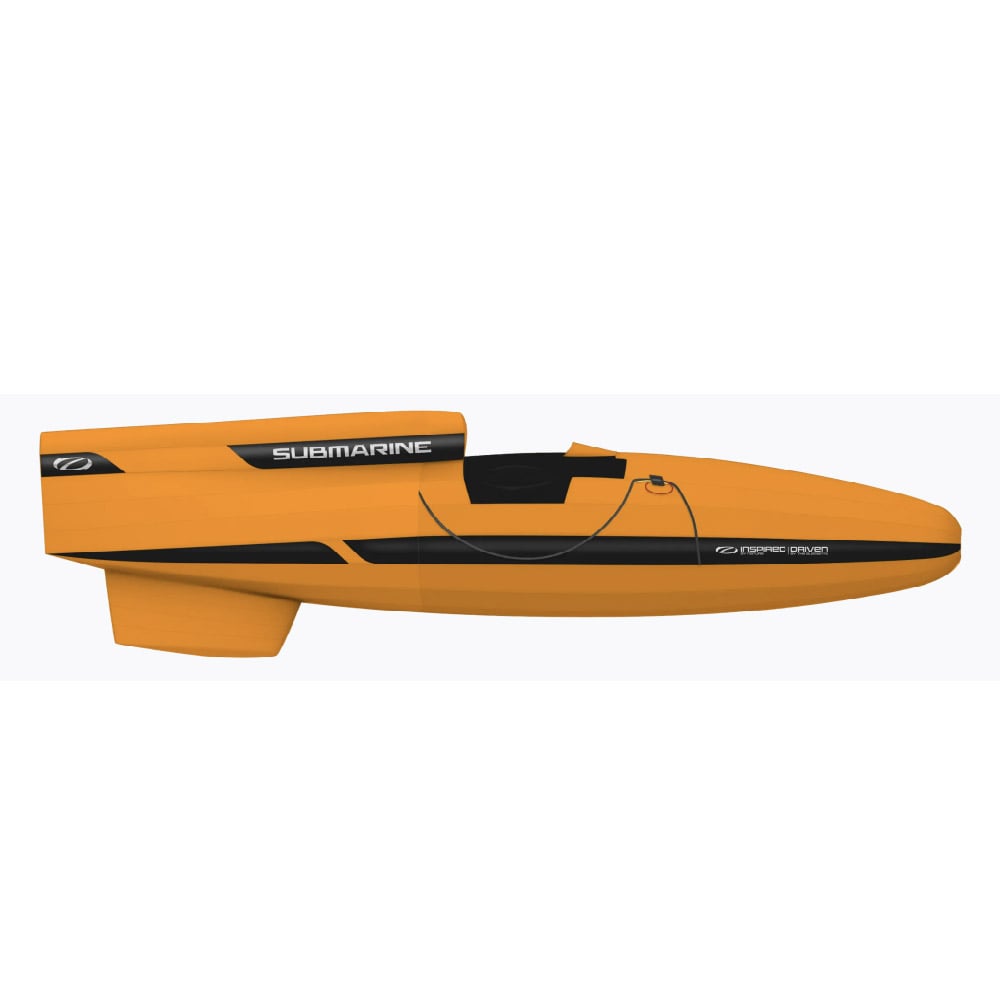

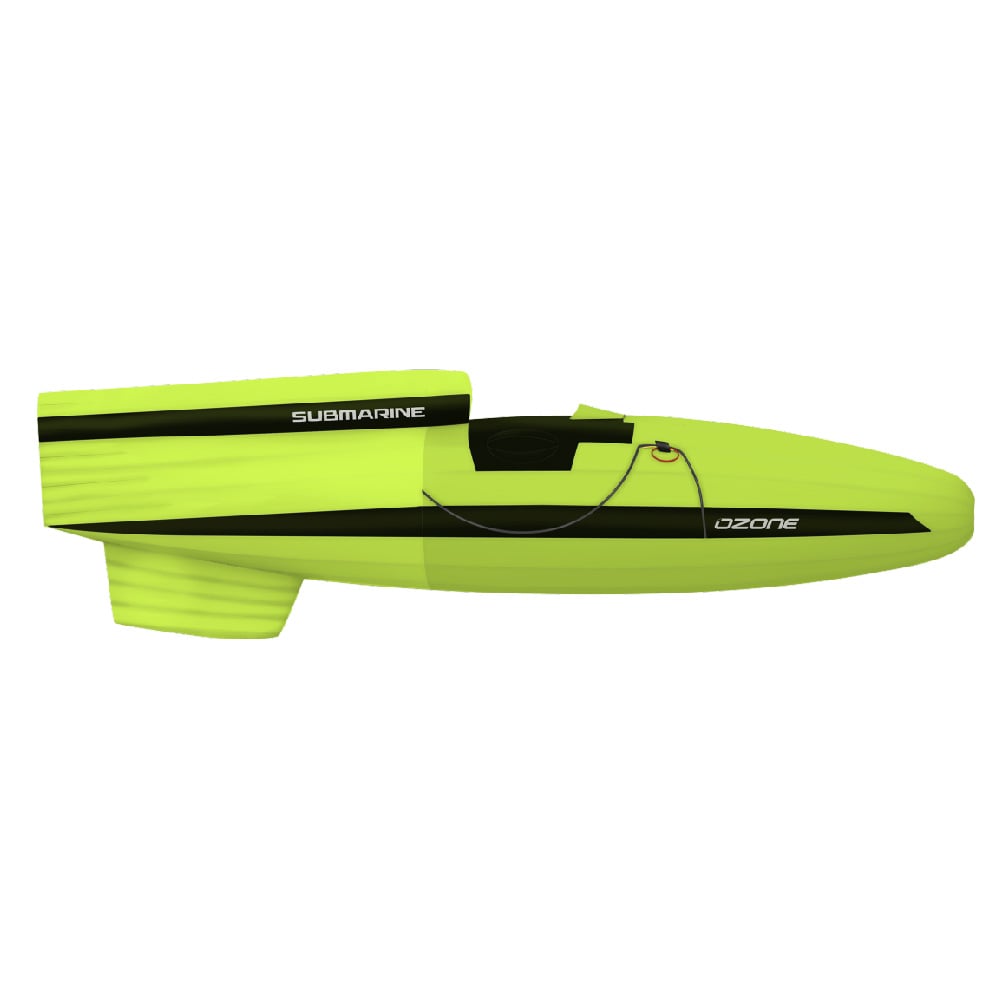

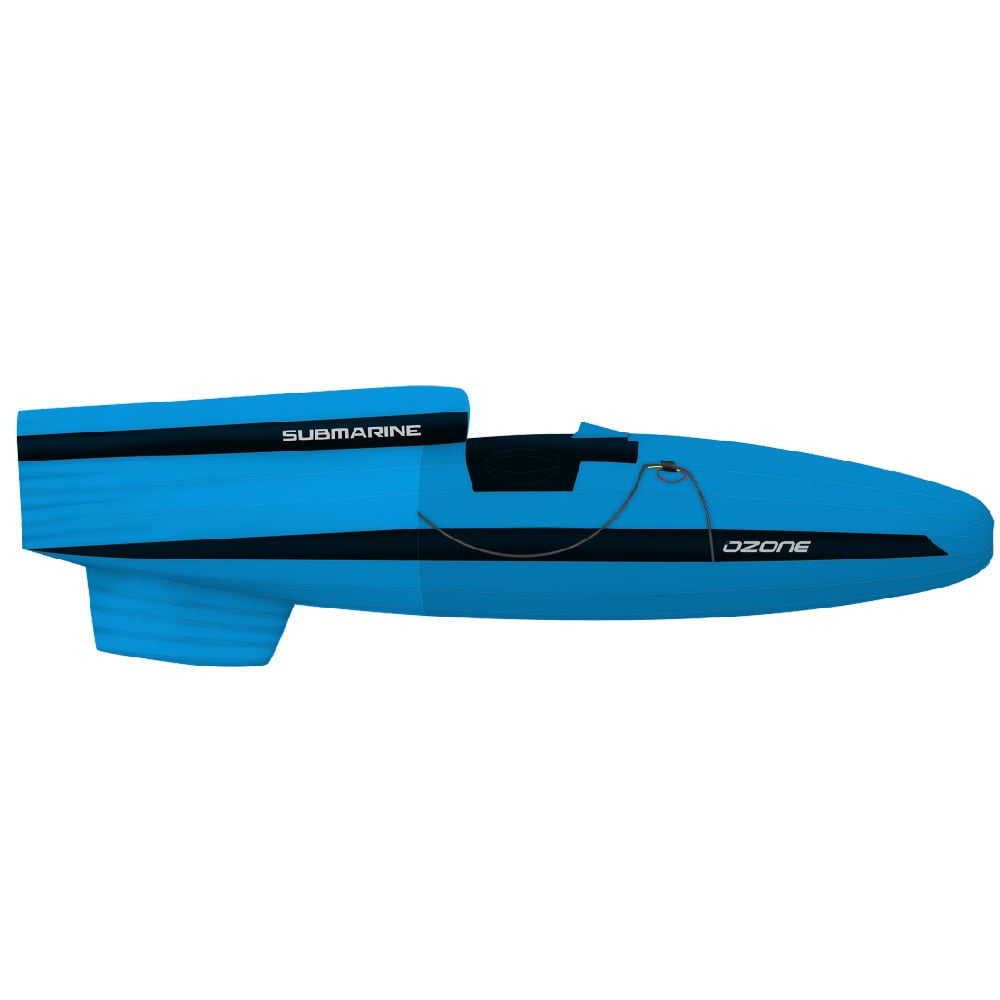

Standard colours: Blue, Yellow, Red, Lime, Orange.
Package
- Submarine structure comprising seats, inside storage and rescue pockets
- Submarine envelope (the airtight skin of the submarine)
- Wood seat plate
- Pair of back bars
- Main Cockpit, 4.5 liters
- Instrument plate
- Rescue handles
- Foot Plate
- 3 one-foot Speed bar
- Foot cubes, 3 different sizes, to adapt the various foot-plate to envelope nose distance
- Back Foam
- Submarine protector
Optional extras (Related Products)
- Additional front cockpit. It can be attached to the main cockpit Offering 2 liters more of storage with easy access from the top envelope zip. Can also contain an anti-G chute
- Exoceat Cockpit. Adaptable to the Submarine and offering slightly more volume storage. It could restrict the leg movement while catching the speed bar, depending on the various settings
- Reserves
- Helmets
- Bags
- Connectors
- Harness Spares
- Clothing

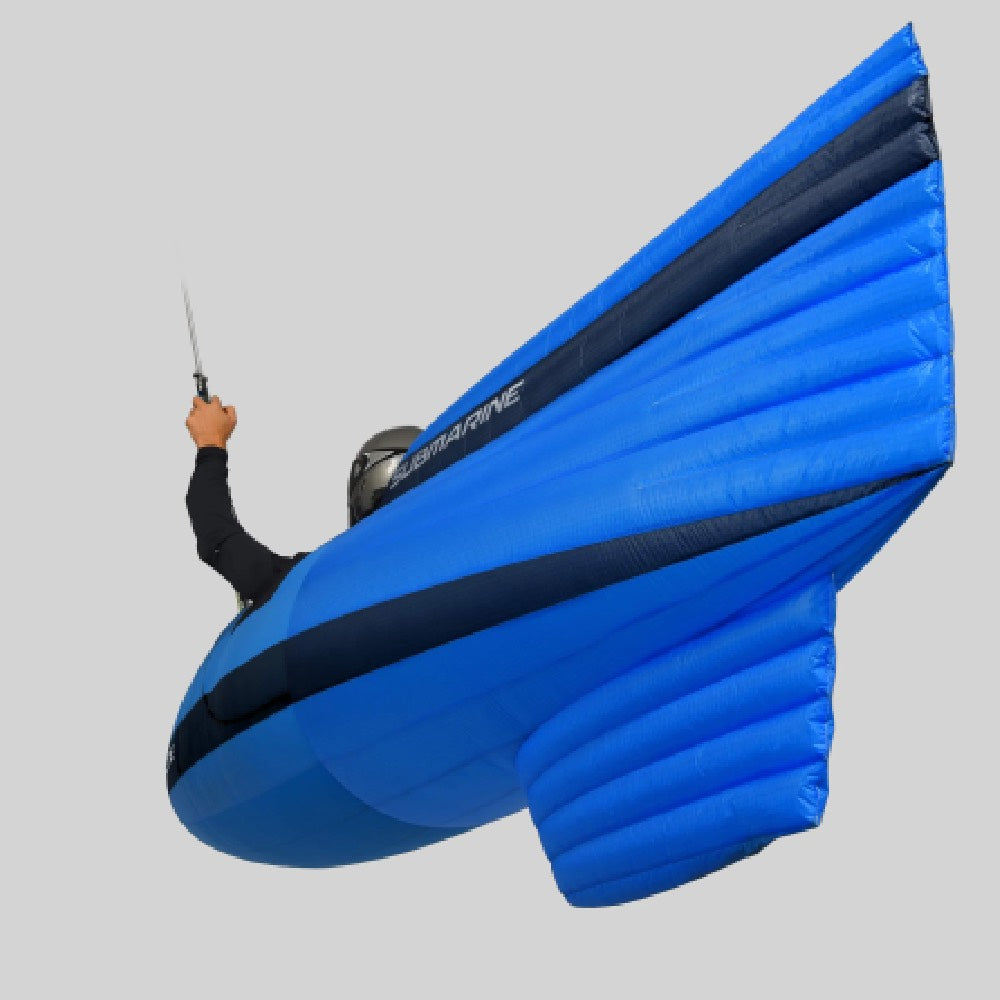

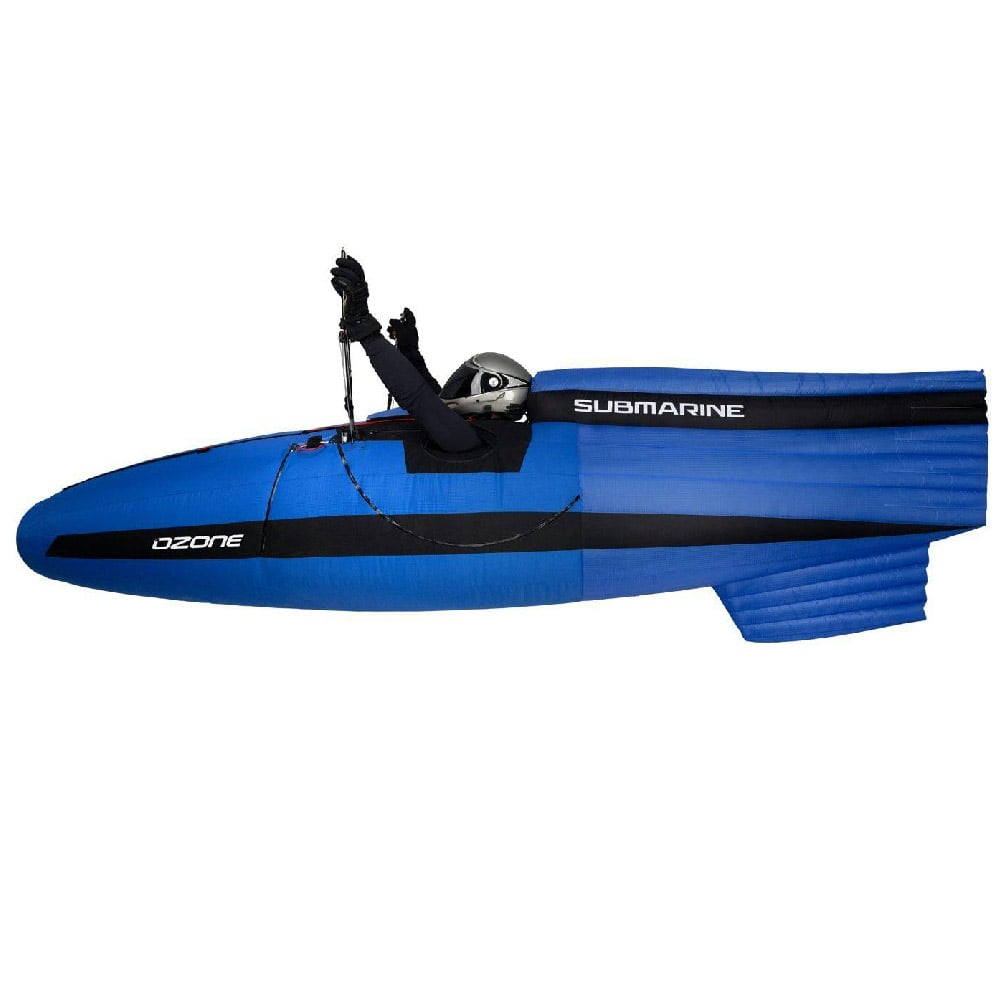

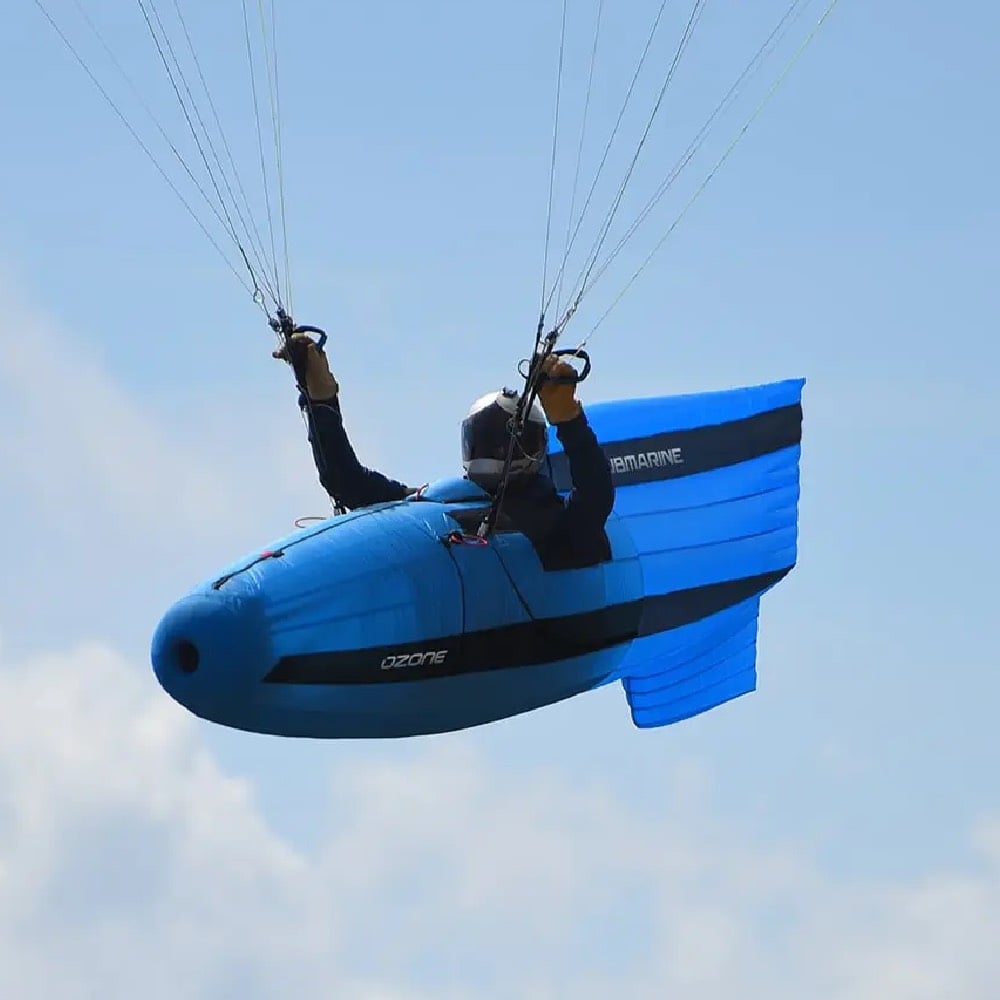

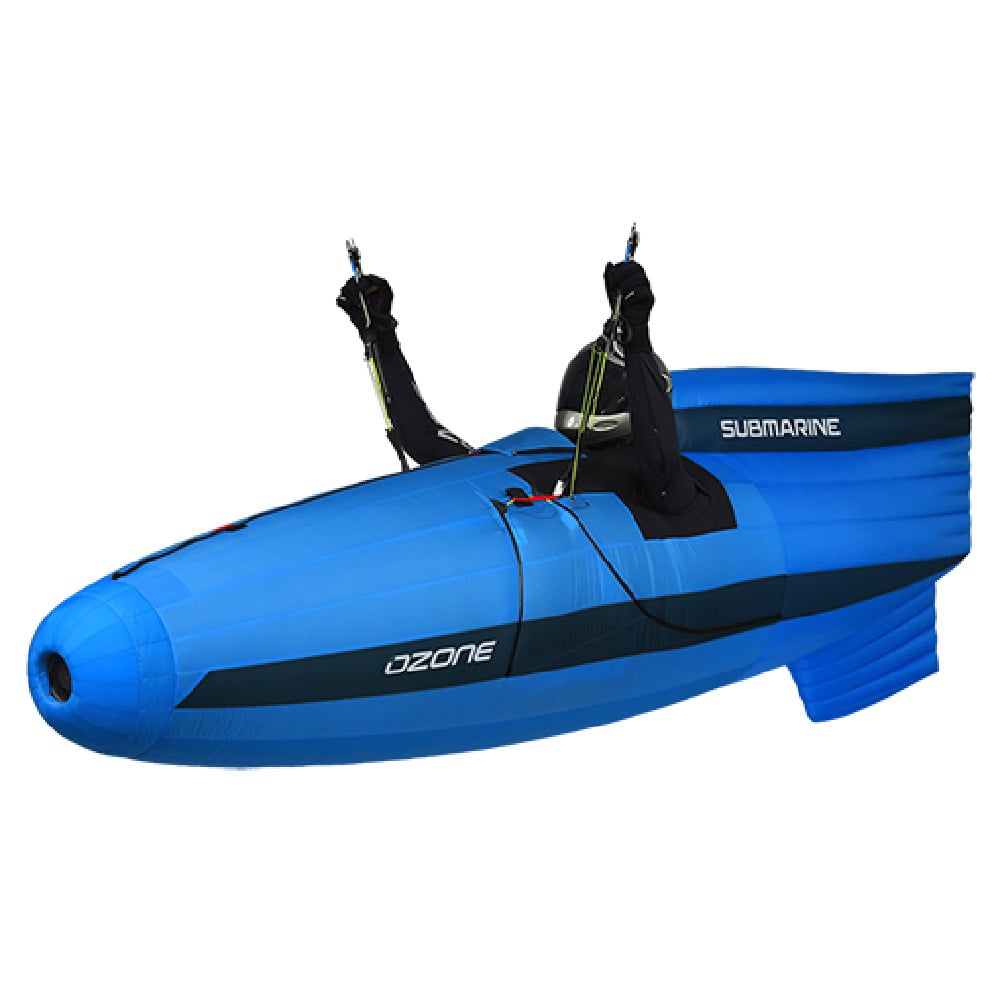

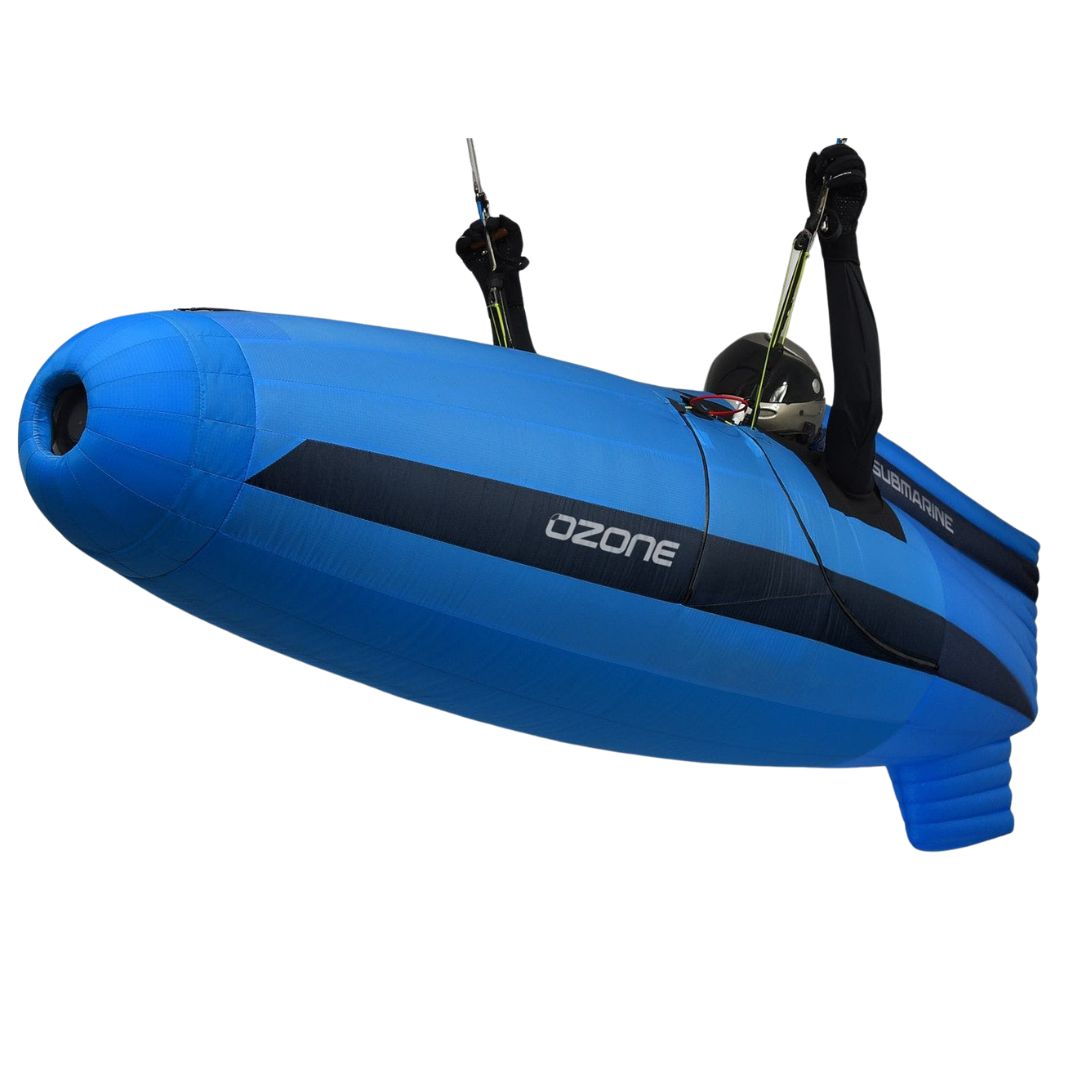

Submarine v1.4: Serious XC & Competition
- World’s first full cockpit fairing harness
- Ram-air design, no fans or batteries
- Envelope redesigned and updated in 2025 (V 1.4)
- Hands-free air-tight magnetic closure

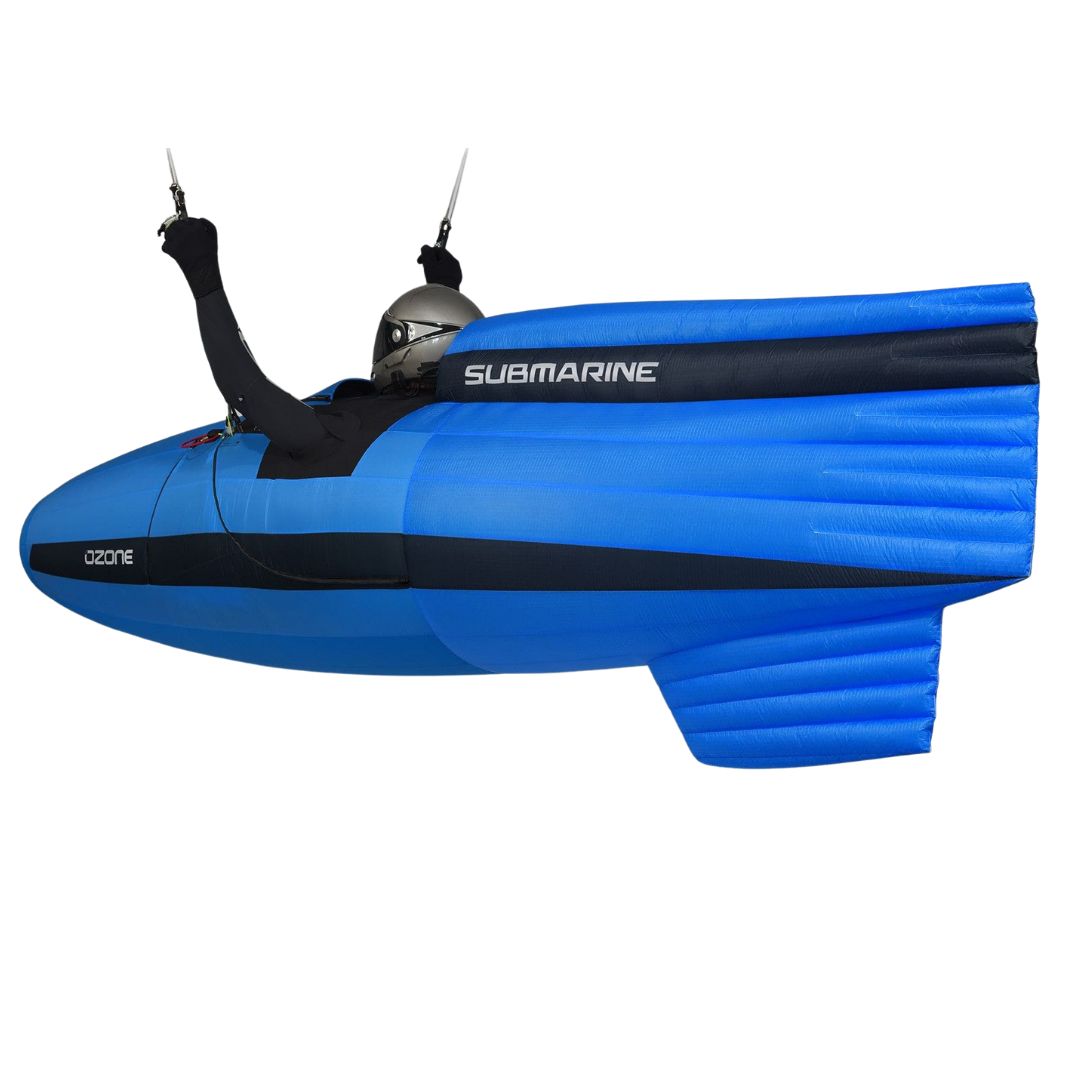

- Inner tail structure reduces risks for vision obstruction during stalls.
The pilot
The Submarine is a no-compromise racing harness for top level competitions and the longest cross-country flights. It is intended only for pilots who understand and accept the safety and ease of use compromises inherent in a high-performance harness.
New features

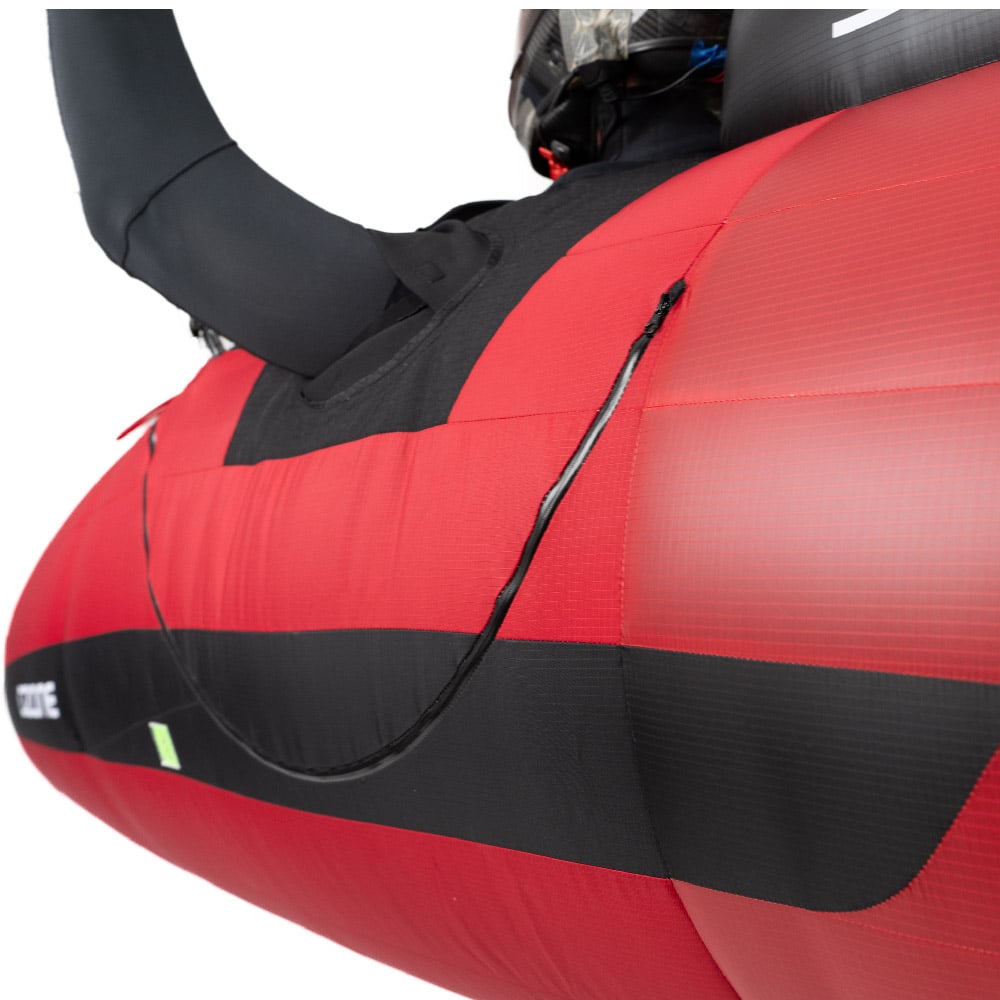

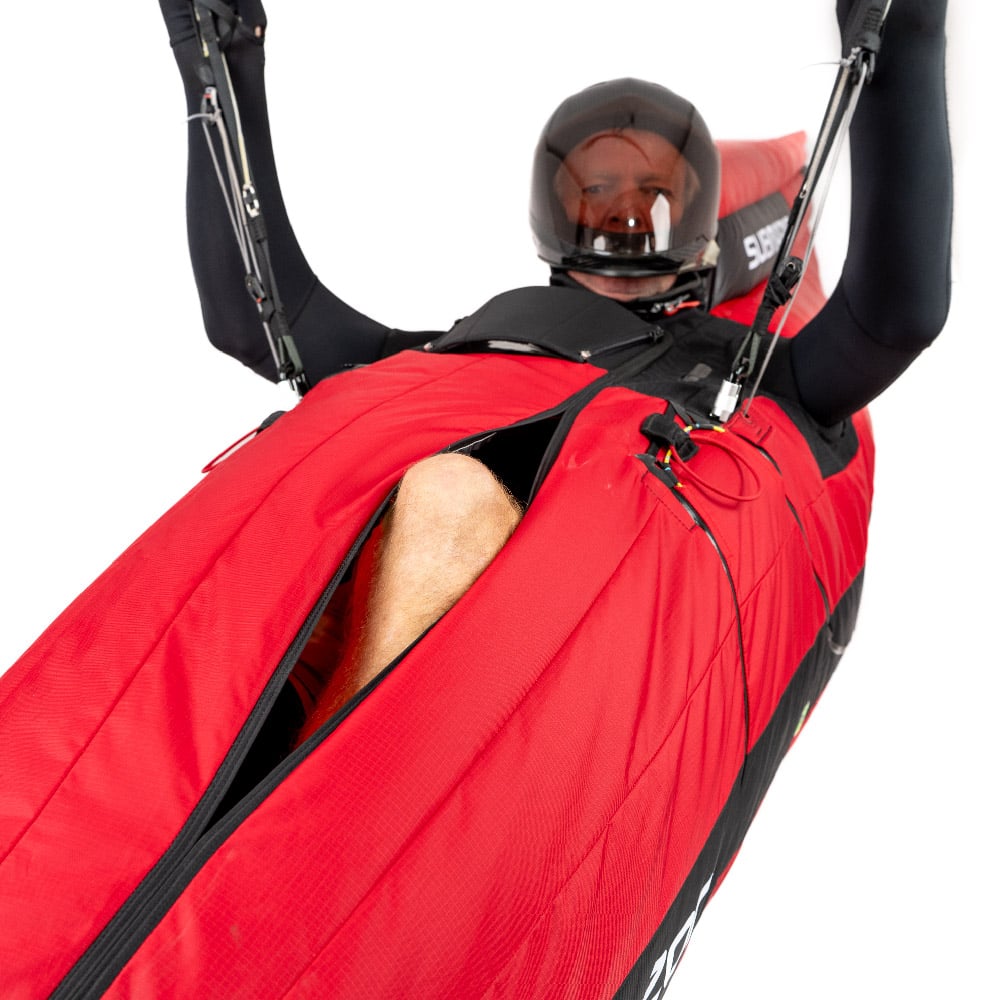

- Magnetic air-tight pod closure.
- New inner tail structure reduces risks for vision obstruction during stalls.

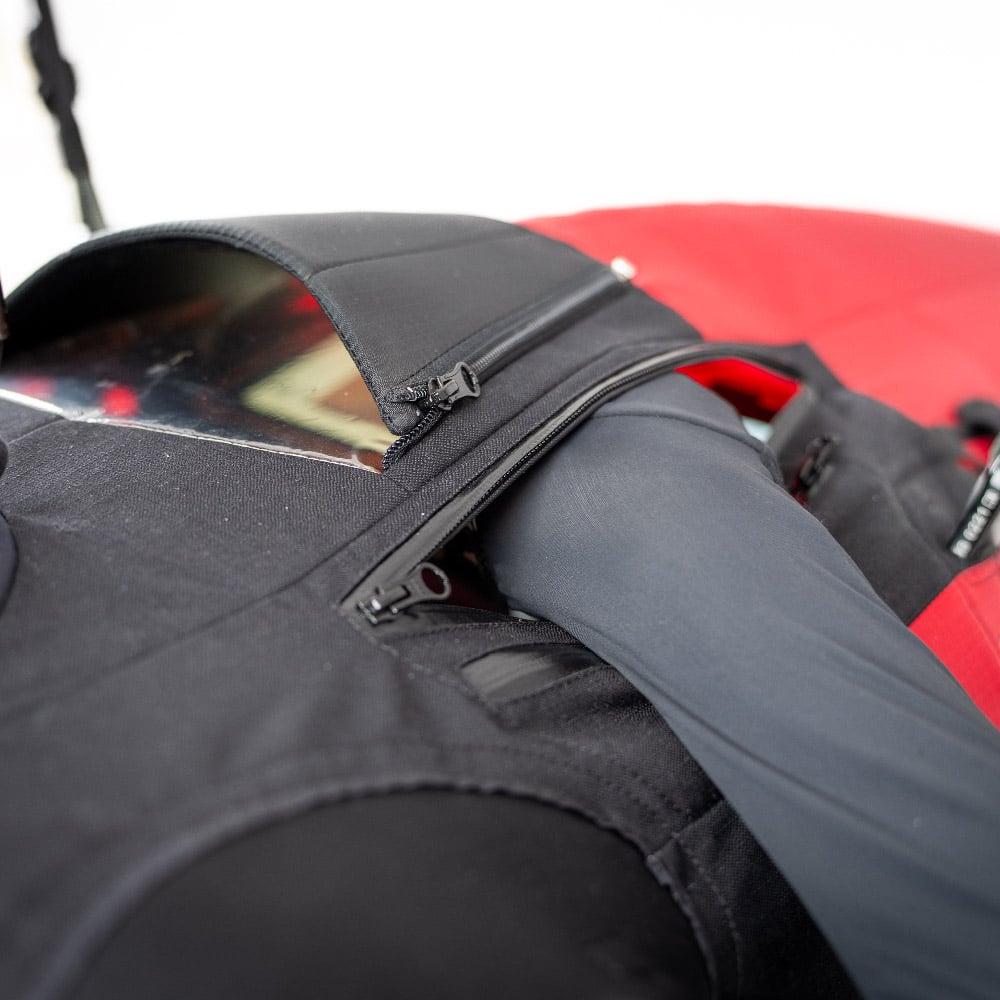

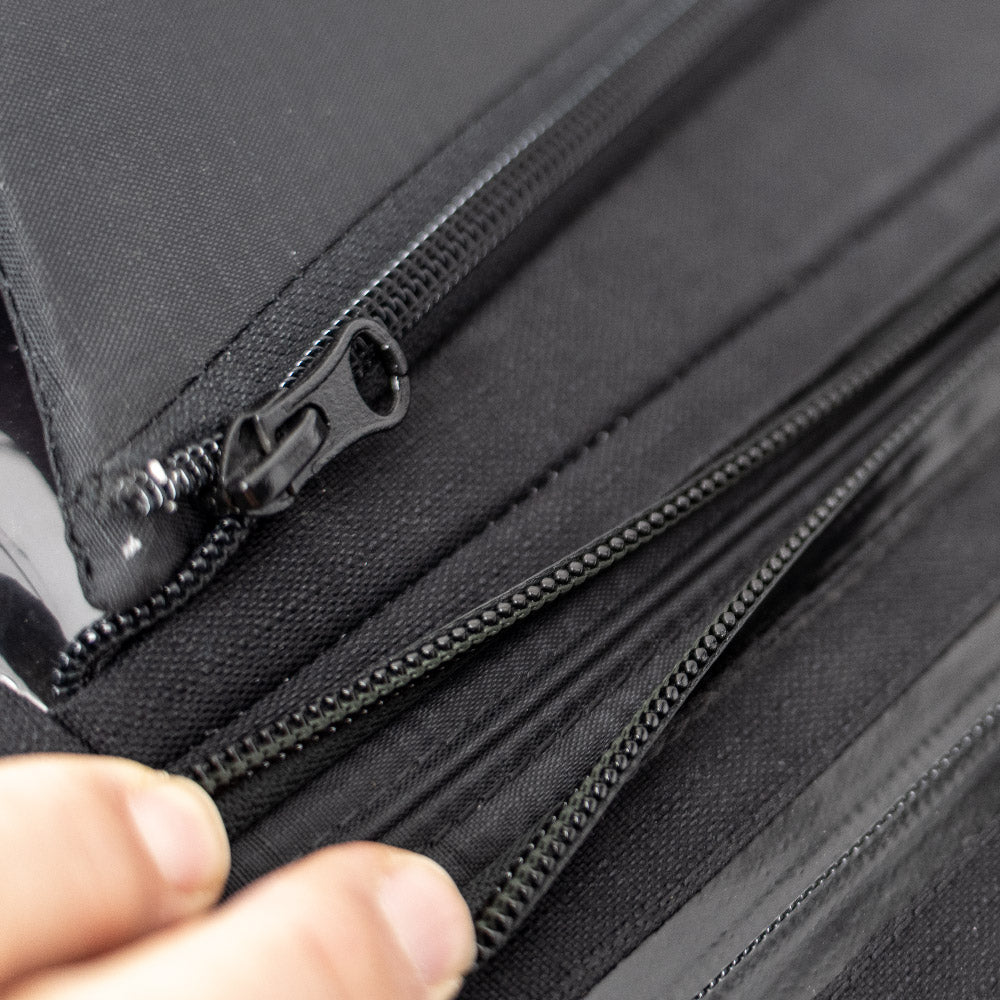

- Double slider zip for the upper body closure.
- Larger side storage pockets.

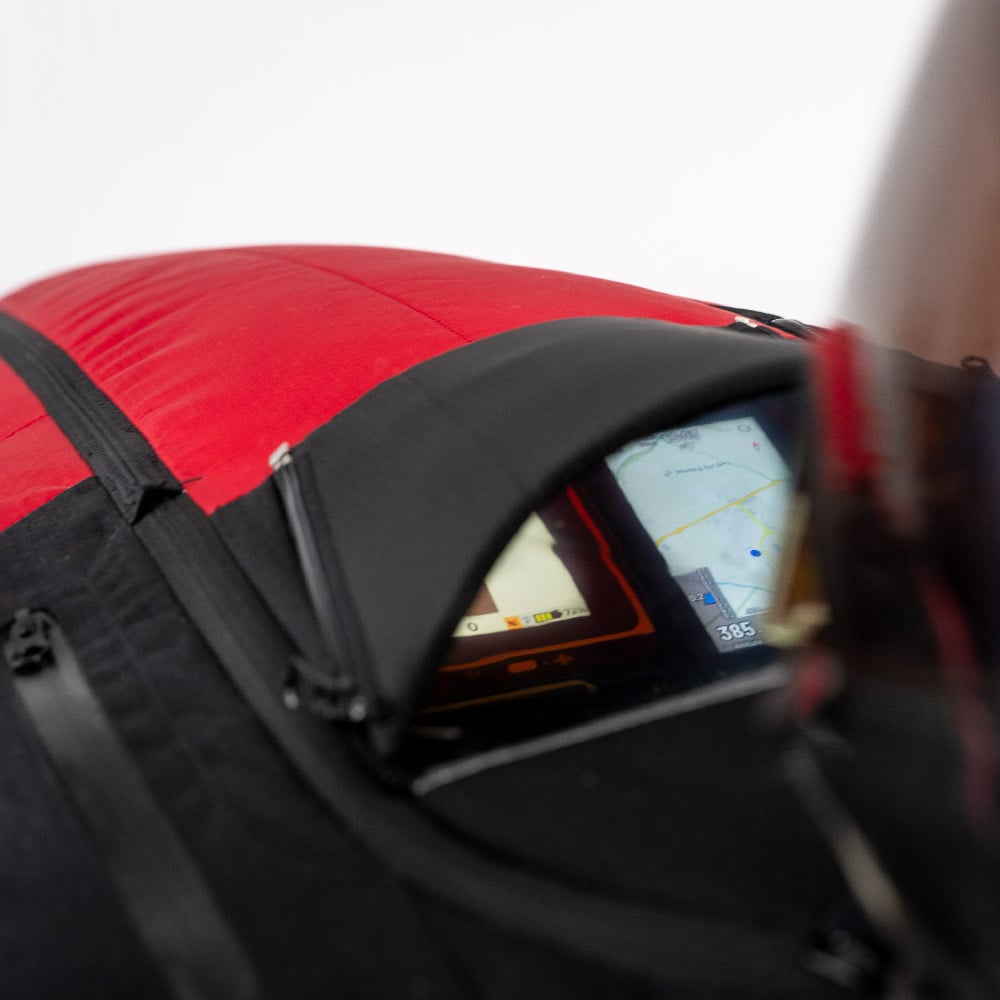

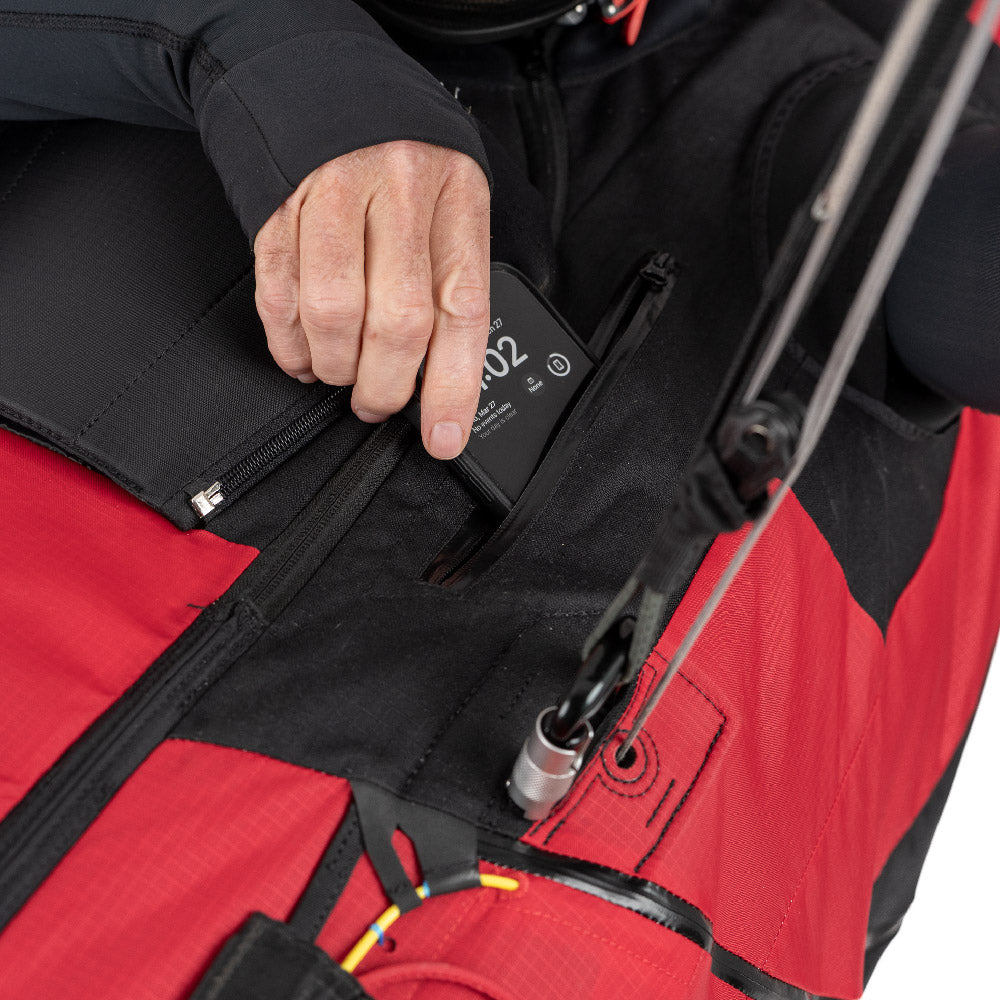

- Direct instrument access with large magnetic slot.
- Longer reserve compartment zipper for a smoother extraction.
The tech
The 2025 V1.4 version of the Submarine represents the ultimate in harness drag reduction. Years of feedback from the world's top pilots helped us to improve many essential details. A unique magnetic pod closure system is air-tight and hands-free. The new inner structure of the tail prevents the tail from obstructing the pilots view in stall. It also features a new upper body closure system, larger pockets, and easier access to instruments. Overall, the V1.4 is significantly more comfortable and more efficient. Thermal comfort inside the pod remains excellent.
Nomenclature: V1.4 means this is the Version 1 of the Submarine structure, and the 4th generation envelope.

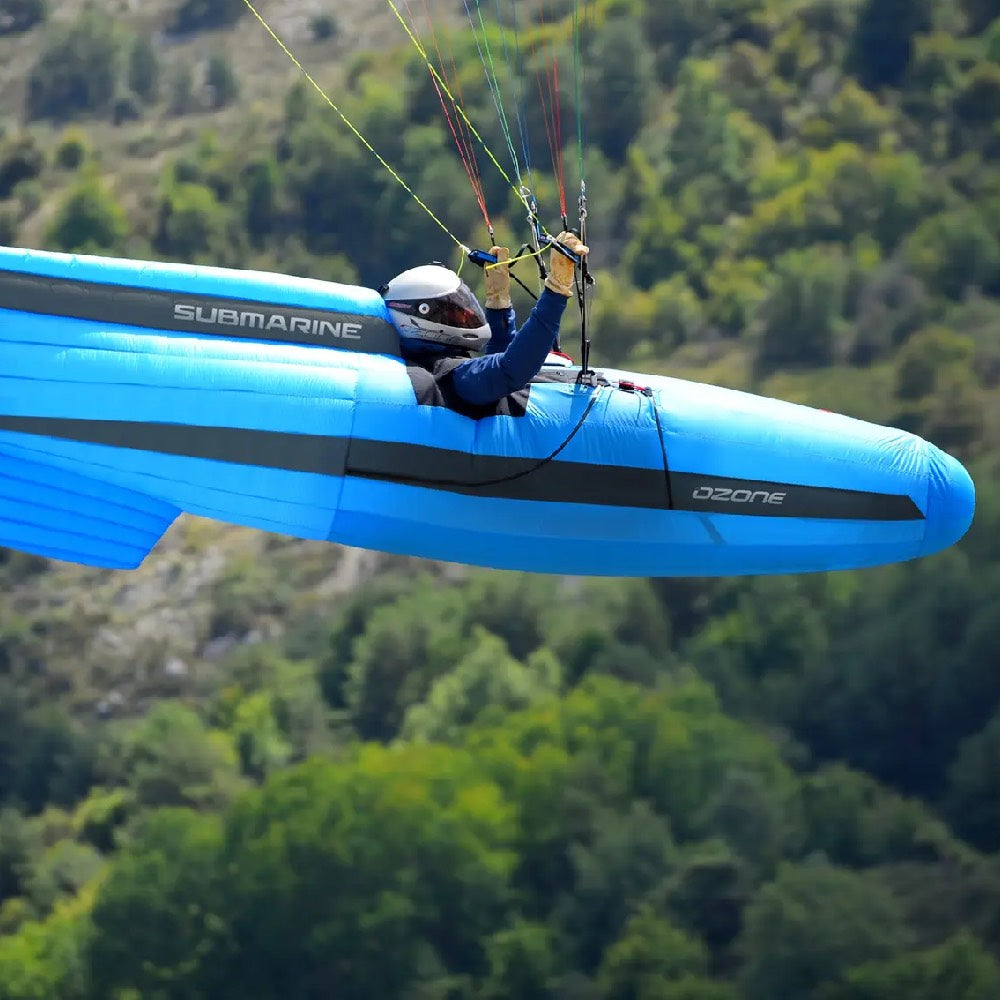

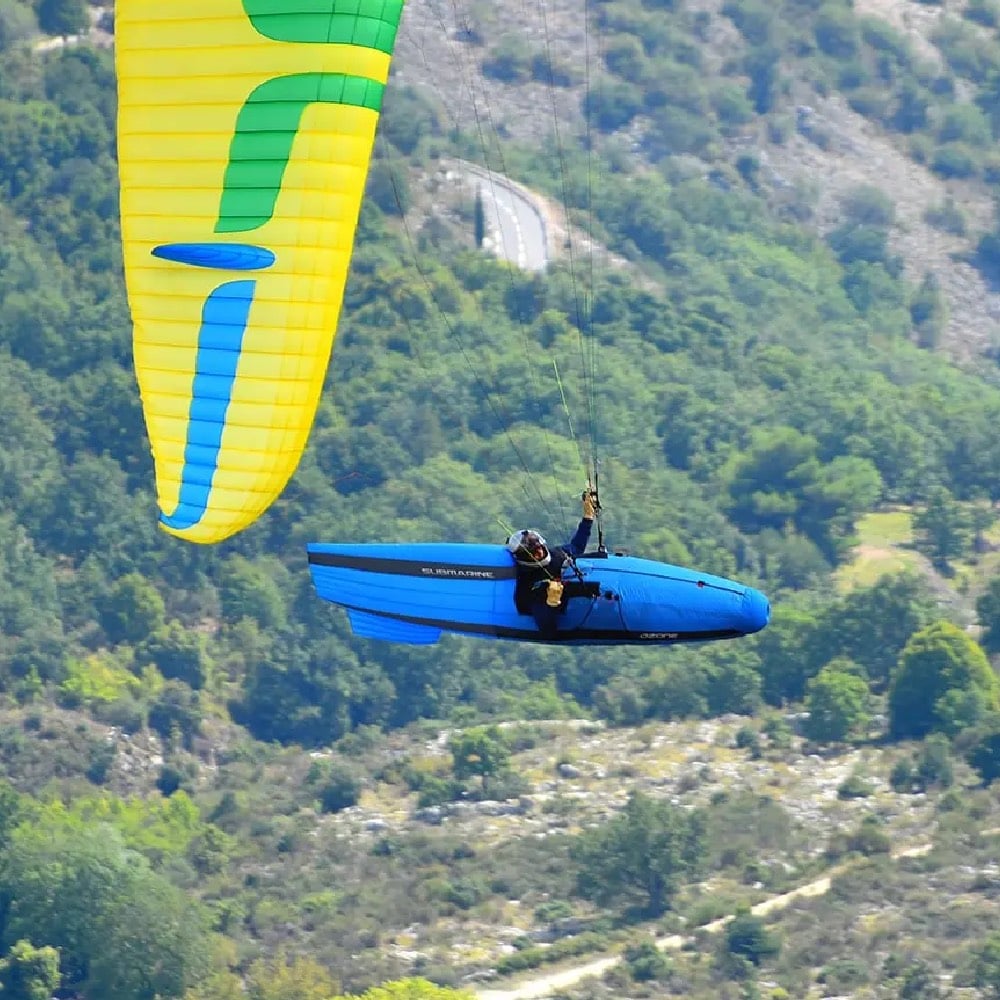

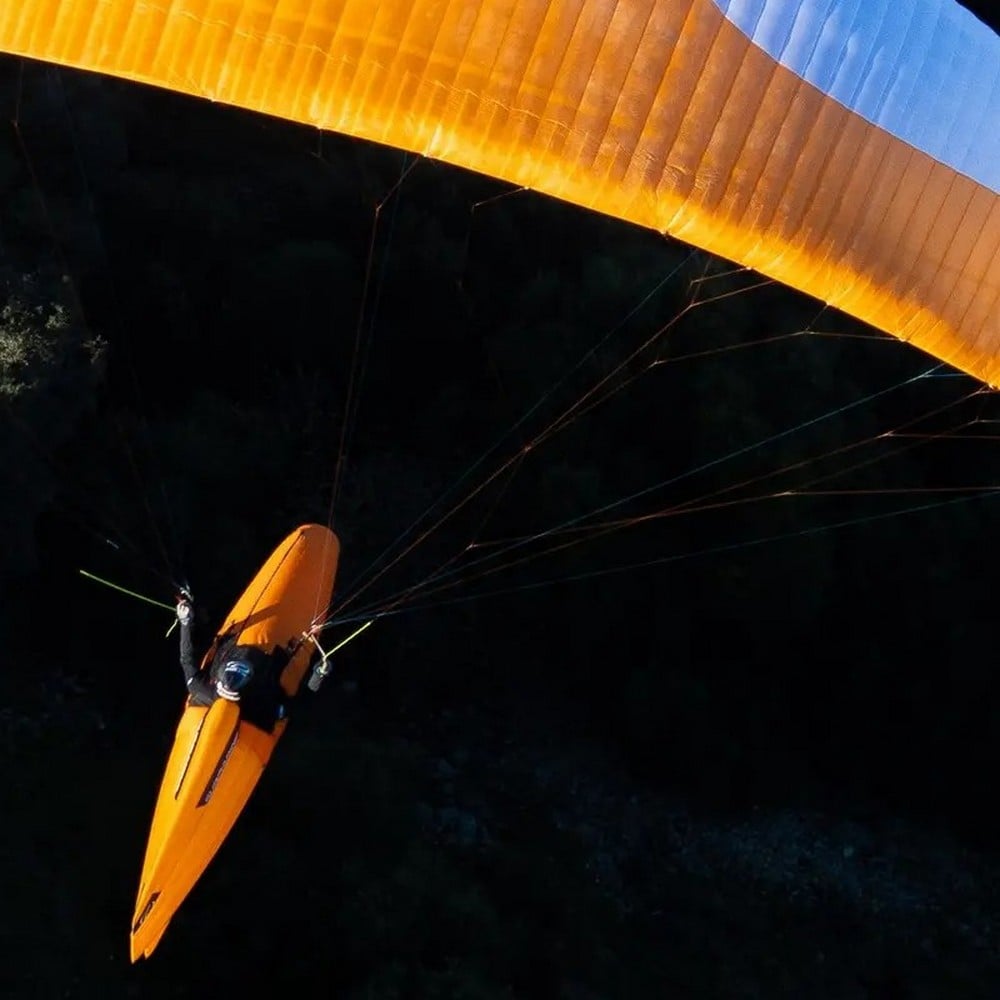

In flight
The Submarine’s performance and comfort have now been thoroughly proven in the highly competitive PWC circuit and during world record distance flights. We thank the pilots who assisted us during the multi-year development process. The Submarine has won virtually every major event since its release.
Solid yaw stability is noticeable at high speeds thanks to the optimised shape of the profile. The overall comfort of the Submarine's structure helps to save energy needed for long and demanding flights. The new magnetic hands-free pod closure provides increased safety on take-off, landing, and allows trouble-free low saves. The risk of pilot vision being obstructed by the tail during stalls and back flights is now reduced. Pockets and instrument panel were made larger and easier to access. All improvements have made it a more user-friendly competition harness.
Certification
The Submarine is EN 1651-2018 certified for pilots up to 120kg.
Features
- Low profile fully inflated envelope with foam-filled dynamic pressure air intake.
- Low parasitic drag once inflated and set in position.
- High parasitic drag once fully open and piloted in an upright position, offering Anti-G characteristics for descent.
- Immediately deflates after bending your legs in case of strong turbulence or wing collapse.
- Good yaw stability at all speeds.
- Good instrument visibility in most light.
- Balanced agility and roll stability.
- Fully self-supported seat and foot plate, refined from the Exoceat.
- Adjustable pitch angle with easily adjustable webbing and multiple fore & aft ballast pockets.
- Two side rescue containers with easy extraction.
- Features the innovative Neo Koroyd back protector.
- Large "flight deck" is fully adjustable in pitch angle.
- Main cockpit is 4.5 Liters volume with two front outside pockets.
- Optional extra cockpit, 2.0 Liter.
- Under seat storage, 1.0 Liter.
- Two Side pockets, 1.5 liter each.
- Two upper pockets, 0.6 liter each.
- Back storage, 13 liters, including 2 liter drinking pocket.
- Competition speed bars with 3 one-foot steps, fully settable to any wing configuration.
- Huge potential range of speed bar to be compatible with wings using the longest speed systems.
Reviews
“I was amazed by the ingeniosity of that design. All the small details were studied to have that streamlined shape and efficiency. It is a bit delicate to handle, and landing on a tree isn’t a good idea and will eventually destroy the outside envelope. I don’t see how the rescue lines will pass near the collar without damaging the cloth…in case of a rescue opening. But it could happen without damage.
The difference in efficiency to gain gliding performance between a normal seated harness and a pod harness with rear fairing is greater than comparing the same pod harness with fairing to a Submarine.
But there’s a difference in speed and on long glides.
Every pilot will find a whole complete set of harnesses from pod to simple ones to his liking. The Submarine is a complex harness for a purpose.
If you are a very good competition pilot, and you need those extra meters that will help you get closer or be on a podium, then the Submarine is definitely for you if your competitors have a similar harness, then getting a high-end stream-lined harness like the Submarine, will keep you close in the game!”
— Ziad Bassil, Dust of the Universe, Ozone Submarine M size (full review)
