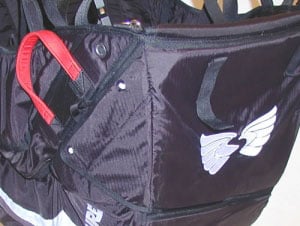

Skyline Pure

Lightweight Recreational Pragliding Harness

A comfortable harness, made for pilots, who want to be easy and uncomplicated prepared for flights with a simple-made but very comfortable harness. Made out of top quality and light weight materials.

The back protection consists of an inflatable Airbag combined with a foam protector using ProComTec. The combination of both protector systems secures that the certification requirements are being achieved, even while launching (where the Cygnus Airbag is not inflated). This special kind of inflatable Airbag is also being certified WITHOUT the foam protector. So, if low weight and low pack size is much more important than maximum comfort for some flights, you can choose to remove the foam from the protector.

The Pure comes with free-sliding-shoulder-straps, which are facilitating ground handling and starting preparations.

Reserve container under the seatboard. Air-intake at the side!

Features

• Side chest strap runs through the carabiner; this, combined with the DAS (Diagonal Active System) results in a much more solid behaviour of the whole harness
• Side chest straps adjustable with plastic buckles

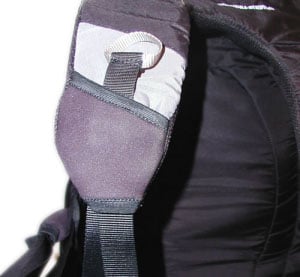

• Free-sliding shoulder straps allow the pilot to move in a comfortable upright position and different seat positions in flight without tiresome adjusting (FRS) Free-sliding shoulder straps are adjustable by flat latches
• "Falling out"-Protection by Safe-T-System (STS)
• Rescue handle with special lock-system (SHL)
• Cover of the connection line is closed with a zipper (ZLC)
• Semi-tube container integrated under the seatboard (IRC) with changed opening
• Inflatable protector combined with 10cm foam protector with ProComTec
• Side air intake
• Longer seatboard for more comfort
• Adjustable inclination of seatboard
• Integrated side pockets
• New design, with new shaped back pocket with circular zipper
• Optional side protector

Cygnus Airbag

Cygnus = inflatable protector. While launching, the Cygnus protector is inflating within seconds by the airstream and keeps filled with air till landing. A valve makes sure that air stays inside the protector. The Cygnus protects against injuries of the back and pelvis in a hard crash.

The Cygnus protector consists of 2 air chambers: seat chamber and back chamber. These 2 chambers are connected by several valves keep the air circulating between the chambers. While launching, the protector is being filled with air. The seat chamber is being inflated within less then one second. This prevents injuries of the pelvis, which can occur shortly after launching. In the next seconds, the back chamber is being inflated completely.

DAS = Diagonal Active System

Additional straps, running from the seatboard to the chest strap, which prevents strong tilting of the pilot. Flying by shifting the weight will not be restricted!

STS = Safe-T-System

“Falling-out-protection“. The special hardware from AustriAlpin/Finsterwalder with click buckles, prevents that the pilot falls out of the harness if he forgets to fastening the leg loops.

SHL = Secure Handle Lock

Safe fixation of the rescue handle to the harness. Inserting a part of the handle into 2 pockets of the harness, ensures that the handle cannot be released by chance. Moreover is looks even better, when the handle lies tight to the harness.

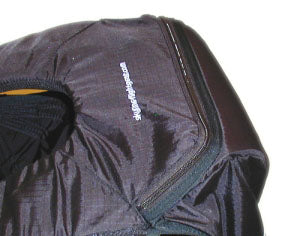

ZLC = Zipped Line Cover

The bridle for the rescue chute is covered under a separate sheet. This sheet is closed by a zipper (without slider), not with a hook and loop fastener. This does even look better and also the opening is more reliable. The slider is kept in a pocket. For closing the zipper after a rescue deployment, close the zipper with the slider and don’t forget to removing the slider!

IRC = Integrated Rescue Container:

container for rescue chute integrated in the harness. In PGH mostly used as bottom container under the seatboard. In HGH between back plate and body.

ProComTec = Protect and Comfort Technology

The protector pocket is being sewed directly onto the back part of the harness. It prevents the protector from slipping while an impact. The protector strengthens simultaneously the back support. All these points enhance comfort and safety while saving material in the back part and thus weight.

Cordura

The heavy duty cloth Cordura® is being used in all our products. With our HG and PG harnesses the 250g/m² Cordura® of German weaving mill C.F.WEBER GmbH is being used. Weber is manufacturing Cordura® clothes in licence from DuPont!

• * Cordura® for maximum durability
• * Cordura® is a High-Performance cloth, which is abrasion and tear resistant
• * Cordura® for long-life cycle
• * Cordura® is:
  • 10 x more durable than cotton duck
  • 3 x more durable than standard polyester
  • 2 x more durable than standard nylon

Technical Specifications

Max. hook in weight: 120 kg. EAPR-GZ-7175/09. Product number: 11118.

* Flybubble Note: We checked the weight of the Skyline Pure Large for ourselves, complete with back protection, karabiners, the standard seat plate, and built-in reserve bridles, and it weighed approximately 4.6 kg.

Materials

• 100% PA Ripstop DuPont Cordura
• BuckFix buckles
• CFK Laminate seatboard with reinforcements

Package

• Harness
• FlySafe carabiner
• Peguet Steel shackle
• Manual
