Product Details
Technical data
| SIZE IN KG | 100 | 120 | 140 | 180 | 220 |
|---|---|---|---|---|---|
| Surface Area (m²) | 29.1 | 34.8 | 40.7 | 49 | 63.8 |
| Weight* (kg) | 1.24 | 1.54 | 1.77 | 2.05 | 2.65 |
| Span (m) | 5.82 | 6.37 | 6.89 | ** | 8.63 |
| Sink rate at Max load (m/s) | 5.39 | 5.39 | 5.47 | 5.38 | 5.47 |
| Line consumption (m) | 99.3 | 133.2 | 141.6 | ** | 200.8 |
| System height (mm)*** | 4735 | 5635 | 5735 | 6035 | 8000**** |
| Volume (L) | 3.3 | 4.2 | 4.8 | ** | 7.1 |
| Certification | EN & LTF | EN & LTF | EN & LTF | EN & LTF | EN & LTF |
**Weights with deployment bag and short bridle add 20g for long bridle
**no data (in progress)
*** System Height: Apex line + upper apex line + bridle
****Long bridle
Reserve container guide
Package
- Reserve
- Inner container
Optional extras

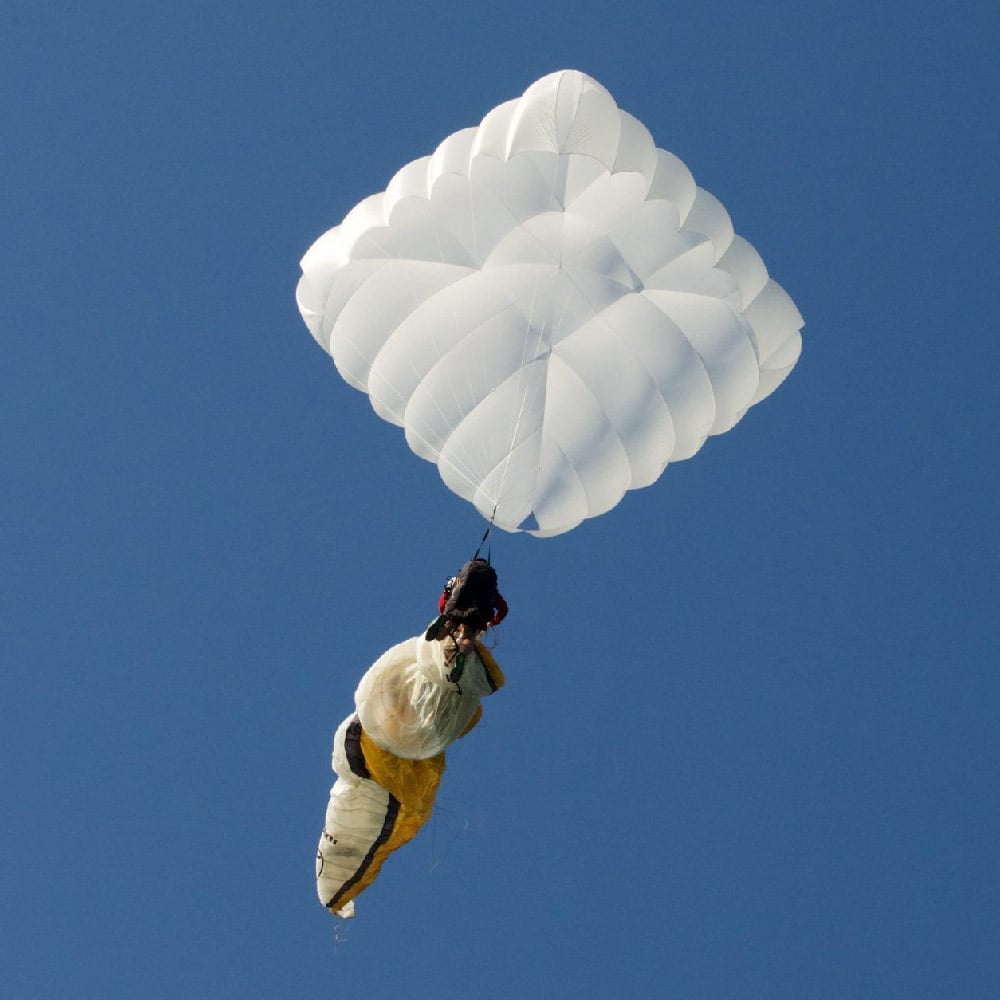

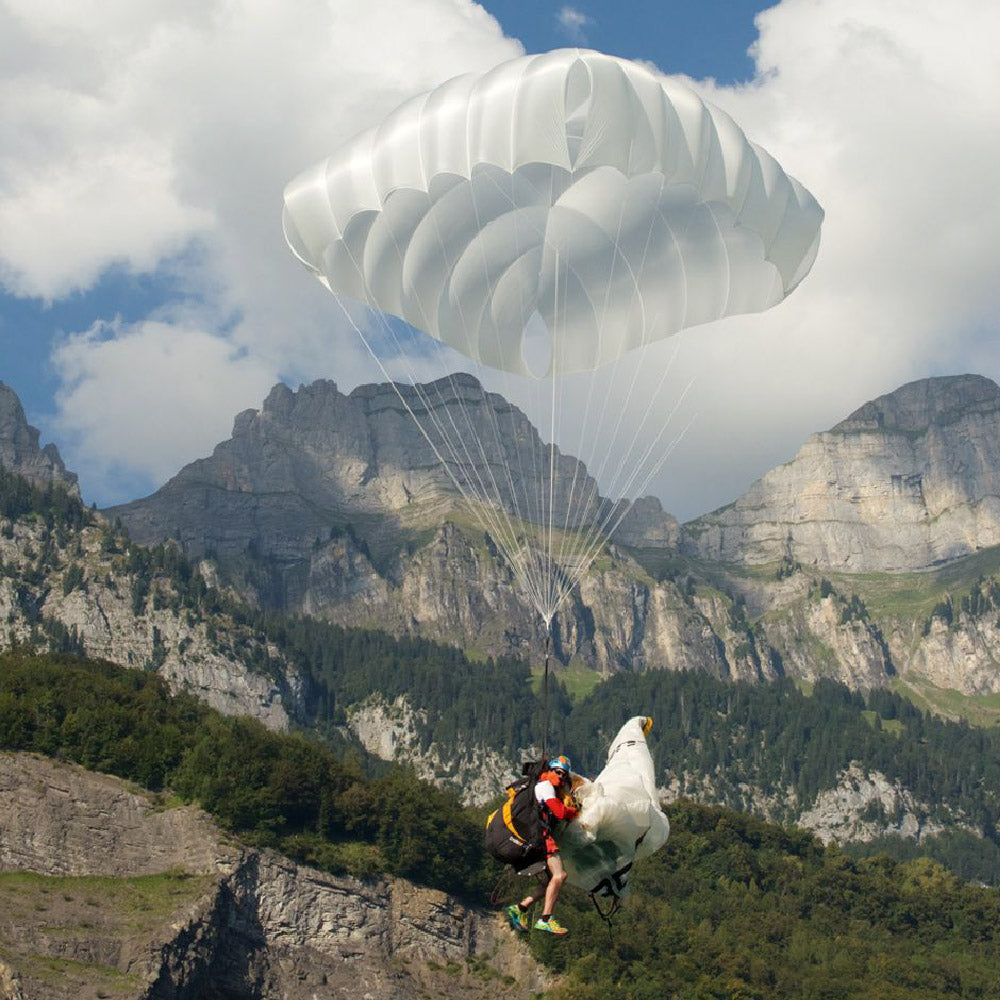

Angel SQ V2: square reserve
Modern square rescue parachute designs have proven time and again to offer significantly better pendulum stability and sink rate performance than traditional round parachutes, whilst retaining the fast opening times that are critical for our safety. Designed and developed by the OZONE R&D Team, the Angel SQ includes all of his knowledge and experience to create the latest, most up to date development of the concept.
The two main factors in reserve parachute performance are sink rate and stability. A reserve parachute with an acceptable theoretical sink rate can easily deliver a hard landing if there is pendulum instability. The principal advantage of the Angel SQ over a traditional round is in its increased stability. The increased stability combined with the Angel SQ’s excellent sink rate makes it a higher performance reserve than traditional rounds.
The Angel SQ has a relatively large surface area, yet is very light in weight, giving exceptional sink rate and stability performance with fast opening times. The large surface area is the principal ingredient in its excellent sink rate — all sizes of the Angel SQ provide plenty of margin within the weight ranges they are certified to carry. Where the Angel SQ really shines is in its high pendulum stability, which can be even more important than sink rate performance. During the development process, which included many real-life test deployments, the Angel SQ’s low sink rate and high pendulum stability delivered consistently safe and comfortable descents. The Angel SQ is lighter than the equivalent sized Angel, while retaining the small pack volume.
The Angel SQ V2 uses the highest quality parachute materials: Dominico RSQN20D, and Cousin Dyneema lines. These materials have been chosen for their optimum balance of durability, performance, small packing volumes and low weight to ensure reliable, safe deployments, even in the most extreme situations. Before making your final choice in reserve parachutes, check the fabric type of competing brands. The Angel SQ opens fast, on par with the fastest round parachutes that they have tested.
Certified EN and LTF to the EN 12491 and LTF 91/09 standards, the Angel SQ is available in 4 sizes with maximum loads from 100kgs to 220kgs. The reserve comes with an integrated short strop for connecting to suitable reserve bridles (not included), for connecting to the reserve connection points on the harness.
Features
- Increased stability
- Decreased weight
- Improved sink rate
- Rapid inflation
Materials
- Cloth: RSQN20D
- Risers: Amsteel 12-3/16 Dyneema
- Apex Lines: Edelrid 6798 - 210
- Skirt Lines: Cousin 1255
Flybubble Note: The original V1 version of the Angel SQ was made from Porcher PN9 cloth.
Downloads
Flybubble reserve parachutes guide
Not sure which reserve to get? Read Flybubble's guide to choosing the right reserve parachute.
