Ask about Gin GTO 3
Product Details
Technical data
| Size | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Weight range (kg) | 60 - 75 | 70 - 85 | 80 - 95 | 90 - 105 | 100 - 115 | 110 - 130 |
| Flat area (m2) | 19.75 | 21.2 | 22.77 | 24.39 | 26.1 | 27.9 |
| Flat span (m) | 11.24 | 11.7 | 12.13 | 12.5 | 12.87 | 13.32 |
| Flat aspect ratio | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Projected area (m2) | 16.49 | 17.84 | 19.21 | 20.38 | 21.62 | 23.16 |
| Projected span (m) | 9.04 | 9.4 | 9.75 | 10.05 | 10.35 | 10.71 |
| Projected aspect ratio | 4.95 | 4.95 | 4.95 | 4.95 | 4.95 | 4.95 |
| Chord (m) | 2.13 | 2.22 | 2.3 | 2.37 | 2.44 | 2.52 |
| Number of cells | 71 | 71 | 71 | 71 | 71 | 71 |
| Glider weight (kg) | 3.86 | 4.1 | 4.3 | 4.46 | 4.7 | 4.9 |
| Certification | EN C | EN C | EN C | EN C | EN C | EN C |
Colours

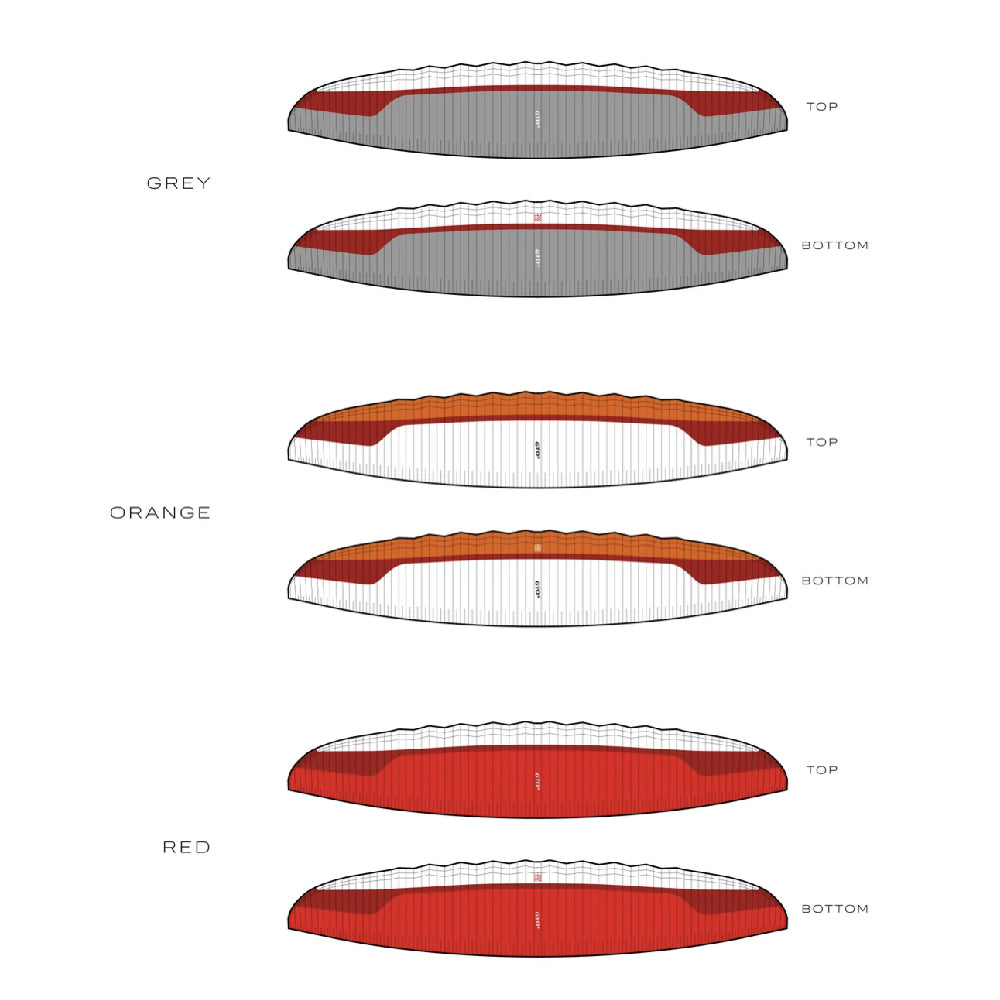

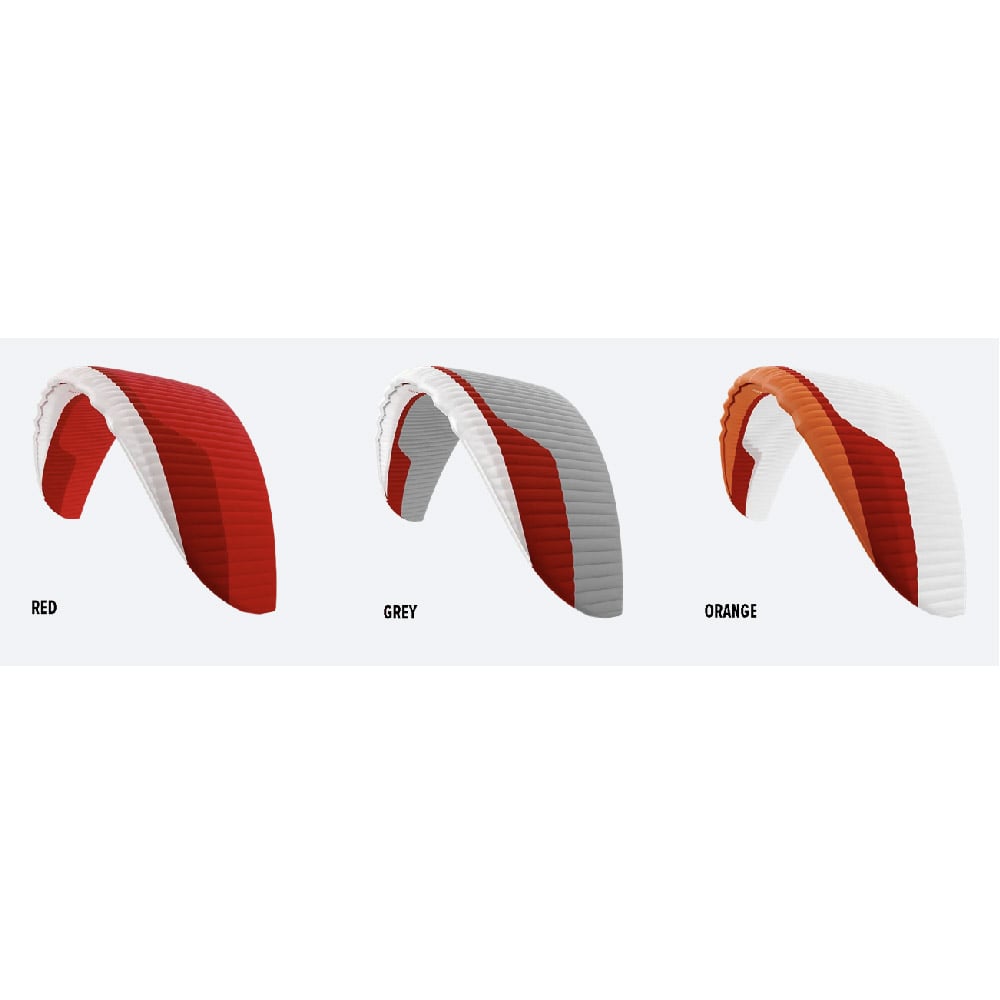

Standard colours :Red, Grey Orange.
Package
- Wing
- Light concertina bag
- GIN stickers
- Repair kit
Related Products (optional extras)

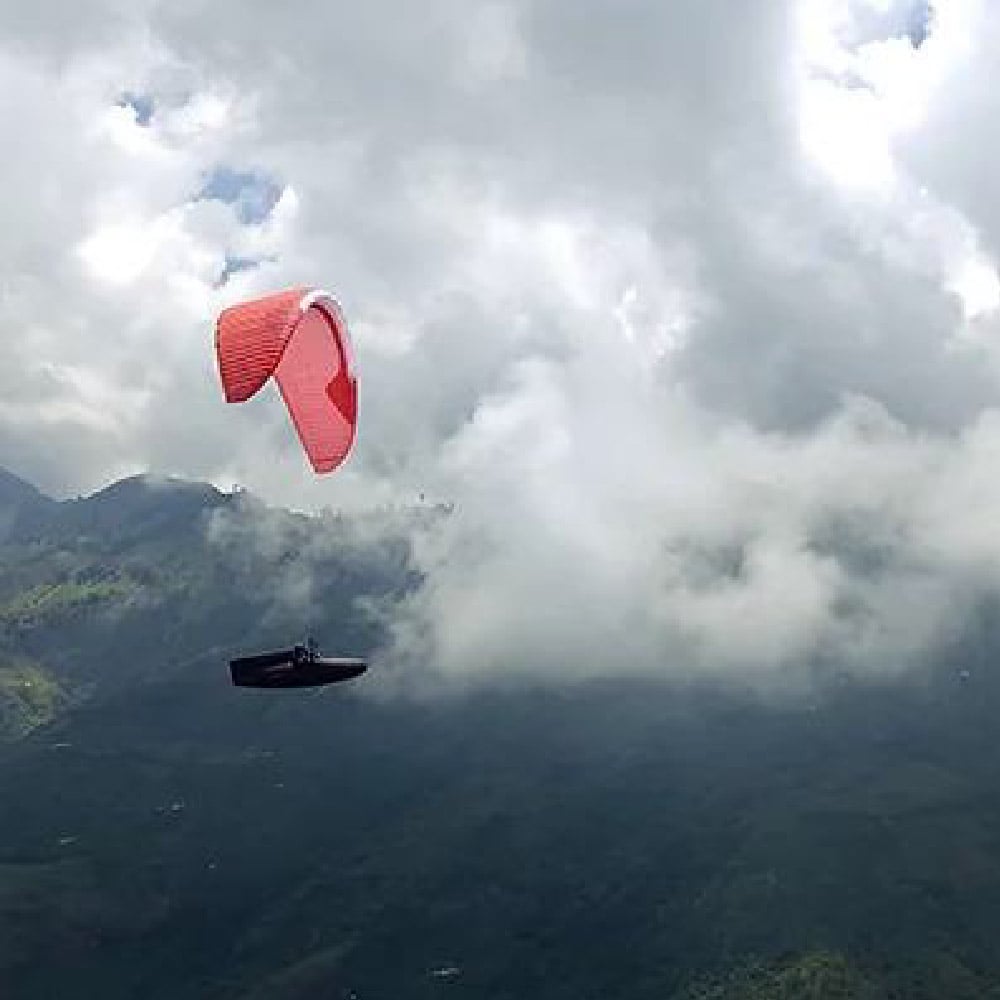

GTO 3: SPORTS RACER
Performance and stability
The new profile of the GTO 3 enables even more pitch stability, especially when on bar. The glide feels very floaty as the wing has a tendency to efficiently cut through the air. All this equates to better performance.
Handling and climbing
The intuitive turn of the GTO 3 is guaranteed to put a smile on your face. Handling is precise and direct and the wing requires minimal management in thermals, allowing you to focus on your strategy. The new planform with the swept back wing shape, in conjunction with the Wave Leading Edge, makes for exceptional climbing performance and feel.
Long usable speed range
The GTO 3 has a long accelerator travel with optimised B riser pressure. The stability at full speed is high, giving you full usability of the entire speed range.
Nature`s technology built-in
The GTO 3 features our Wave Leading Edge technology, which increases the performance at high angles of attack, giving a better sink rate at low speeds along with a more delayed and progressive stall. Inspired by the tubercles of the humpback whale, the technology has been realised in paragliders through the “GIN LAB”, a wind tunnel project run by Gin Gliders in collaboration with Ulsan National Institute of Science and Technology in South Korea.
Features
- Wave Leading Edge Technology (WLE) for increased performance at high angles of attack
- 2 risers for true rear riser steering
- Speed system with 20mm Allen pulleys
- Plastic rods for enhanced rigidity and structural support
- Semi light construction with 29g fabric on top and bottom surface
- Unsheathed aramid lines with optimised diameters
- 17cm speed range for top of the ranfe top speed
Riser details
- 12 mm Cousin Kevlar
- Ergonomic break handles
- Optimized B control bar
- A3 stopper
- Brummel hooks
- High quality 20mm Allen pulleys
- Color codificated attachment point
- Color codificated lines
Flybubble video first test & review
Materials
Canopy cloth
Upper surface leading edge: Dominico 30DMF 41g²
Upper surface: Myungjin, MJ29MF 29g²
Lower surface: Myungjin, MJ29MF 29g²
Lines
Upper: Edelrid 9200-035 8001-050 | 070 | 090 (Aramid - Dyneema)
Middle: Edelrid 9200-035 8001-050 | 070 | 090 8001-130 (Aramid)
Main: Edelrid | Gin 8001-050 | 070 | 190 | 340 (Aramid) TGL 220 (Aramid)
Gin product registration
Register your Gin product here.
