Ozone Viper 5 (PAST MODEL)

SKU : OZONE-VP5-16-RWKW

Superseded by the Ozone Viper 6

The Viper 5 is a high performance PPG wing designed for experienced pilots searching for the highest levels of efficiency, speed and performance. It features the latest design elements and technology taken directly from our high performance PG and PPG development programs to deliver a super-sleek, exciting wing, ideal for XC flying and classic competitions.

Product Details

Technical data

Size	16	18	20	22
Number of cells	62	62	62	62
Projected area (m2)	13.7	15.4	17.1	18.8
Flat Area (m^2)	16	18	20	22
Projected Span (m)	7.68	8.15	8.59	9
Flat Span (m)	9.64	10.22	10.77	11.3
Projected Aspect Ratio	4.3	4.3	4.3	4.3
Flat Aspect Ratio	5.8	5.8	5.8	5.8
Root Chord (m)	2.1	2.23	2.35	2.46
Glider Weight (kg)	3.64	3.91	4.18	4.46
PG Weight Range (kg)	55-80	65-90	75-105	85-115
PPG Weight Range (kg)	80-120	90-130	100-140	110-155
DGAC	DGAC	DGAC	DGAC	DGAC

* Weights may vary up to 50gm per size due to slight variations in the manufacturing of the fabric used.

Colours

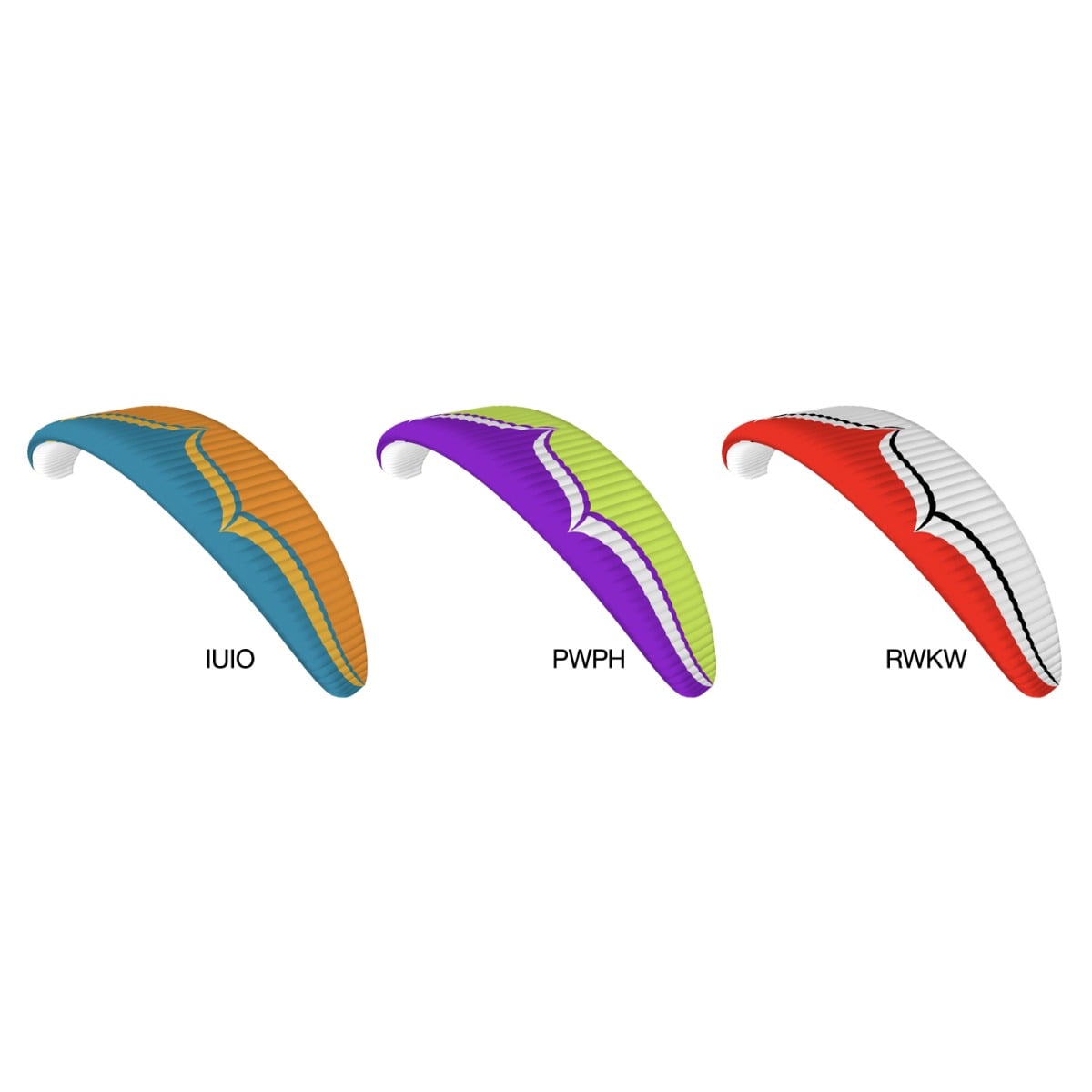

Standard colours: IUIO, PWPH, RWKW.

Ozone Viper 5 standard colours (Ozone colour codes)

Custom colours: Choose your colours and email us the colour reference with your order. Include a screenshot if you can. Full payment required upfront to confirm your order after which it cannot be cancelled.
