Swing Connect Reverse EVO (PAST MODEL)

SKU : SWING-CONNECTREVERSEEVO-M

Completely revised version if our convertible harness. We have kept the proven and well tested features, as e.g. the carrying system "Alpine Back System" by the alpine backpack specialist Deuter. In the further development and optimization, we have listened to our customers and invested a lot of time. We proudly present the result: proven and well tested, but much better.

Product Details

Connect Reverse EVO - fly and like

The Connect Reverse Evo is a modern, functional and comfortable harness with an integrated rucksack. The X-frame system with curved profile aluminium stays provides exceptional weight carrying ability. Together with the anatomic hip belt, with bi-laminate foam, it provides for comfort, flexibility and weight transfer and ensures that the „felt weight“ is noticeably reduced. On top of that, the reduced overall weight makes any ascent a playful pleasure and you’ll be tempted to take it for long hiking-tours. Launching and in flight mode the Reverse Evo impresses with a completely redesigned strap system with optimized geometry, which allows easier entry into the harness after take-off and provides more in-flight turbulence dampening. The lightweight buckles are easily adjusted and will stay in that position 100%. Regarding safety it features an air flow- independent airbag with, for a reversible harness, very good damping values along the entire back area.

The Connect Reverse is ideal for those looking for a durable and comfortable harness with low weight. May it be either for your Hike & Fly, for extended Vol-Biv adventures, for traveling or simply for flying pleasure.

You may look forward the following features:

Harness Features

New optimized and lighter belt system
New, optimized geometry (dampened, yet precise )
Easier transition from take-off to flying position
Lightweight aluminium buckles
Air-flow independent multi-chamber airbag (shape by titanium foam hybrid construction )
Integrated reserve container under the seat
Ergonomic seat for good connection and feeling for the glider
Comfortable ergonomic back padding with mesh insert for better ventilation
Lowered waist belt
Lighter materials
Easy to adjust buckles on the straps, that will stay 100% in position
Adjustable back rest angle
Adjustable seat board tilt
Markings for recommended standard pilot position
Storage compartment for water bladder (3 L ) + hydration tube passage
Pocket with SOS card on the shoulder
Two side pockets for Flight Accessories
Signal whistle
Smooth acceleration system with large bearing pulleys
Free running shoulder straps
hook and loop fastener-less rescue channel system (signal colour in the open state )
Quick out carabiner and steerable rescue mountable
Right-or left-handed versions available
Plenty of space to stow away your bivouac equipment

Backpack features

Sufficient volume (about 90 litres in size L) , even for large gliders and helmet
Lightweight, removable lid pocket with extra-large access
Loops on the backpack floor e.g. for attaching a sleeping bag

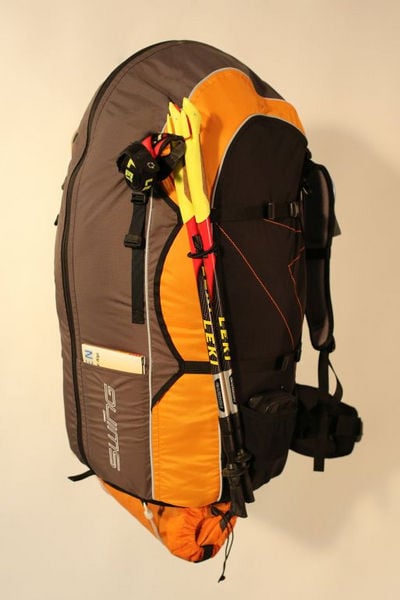

Side loops for trekking poles
2 side pockets
Additional pocket for hiking map
Adjustable compression straps on the sides
4 reflective strips outside for better visibility
Deuter Alpine Back carrying system with removable hip belt
Signal whistle
Prepared for 3 litre hydration system by Deuter
Lighter material
Optimized lid pocket ( easier , greater access )

Materials and specifications

The materials used in the harness are very light, but also very high quality and robust
Weight 3.95 kg (size L)
Robust but lightweight materials
Plastic seat board
Lightweight, functional buckles

Safety and Certification

Simple, easy and safe locking system
LTF approval without incident flow
Multi-chamber airbag (titanium foam hybrid construction)

Data

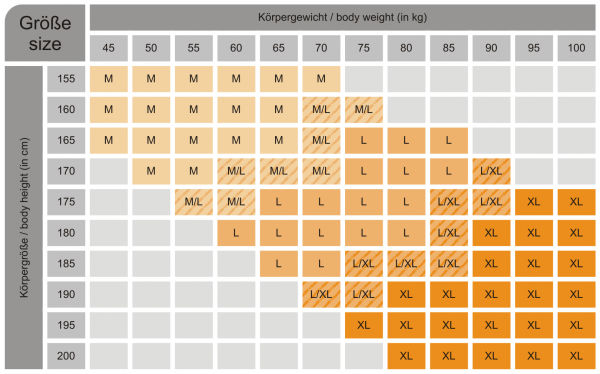

Sizes	M, L, XL (like UK S, M, L - see sizing chart)
Weight	M: 3,85 kg
	L: 3,95 kg
	XL: 4,05 kg
Distance between Carabiners	36-42 cm
Seating area	M: 41x36 cm
	L: 43x38 cm
	XL: 45x40 cm
Distance Carabiner-Seatboard	M: 40 cm
	L: 42 cm
	XL: 44 cm
max. Load	120 kg
Protector	LTF-certified, air-flow independent multi-chamber airbag (shape by titanium foam hybrid construction )
Rescue Container	Integrated reserve container under the seat
LTF-Certification	DHV GS-03-0389-13
