Technical data
| Sizes | S | M | L | XL |
|---|---|---|---|---|
| Pilot height (m) | < 1.70 | 1.67–1.79 | 1.76–1.88 | > 1.85 |
| Carabiner height (cm) | 43 | 45 | 47 | 48.5 |
| Carabiner-to-carabiner distance (cm, min.–max.) | 38–48 | 38–48 | 38–52 | 38–52 |
| Total weight * (kg) | 4.00 | 4.20 | 4.40 | 4.55 |
| Rucksack weight (kg) | 0.685 | 0.740 | 0.795 | 0.814 |
| Rucksack Volume (L) | 50 | 56 | 62 | 65 |
| Speed bar weight (g) | 77 | 77 | 77 | 77 |
| Handle and throw bag weight (g) | 80 | 80 | 80 | 80 |
| Carabiner weight (g) | 58 (single), 116 (pair) | 58 (single), 116 (pair) | 58 (single), 116 (pair) | 58 (single), 116 (pair) |
| Polypropylene seat width, rear (cm) | 33 | 35 | 37 | 38 |
| Polypropylene seat width, front (cm) | 30.5 | 32 | 34 | 34.5 |
| Polypropylene seat depth (cm) | 34.7 | 36.5 | 38.5 | 39.5 |
| Emergency parachute volume (cm³) | 3000–5600 | 3000–5600 | 3000–5600 | 3000–5600 |
| Usage limit (daN) | 120 | 120 | 120 | 120 |
| Certification number | PH_497.2026 | PH_497.2026 | PH_497.2026 | PH_497.2026 |
*Total weight including speed bar, carabiners, rucksack, handle and throw bag, seat
Weight may vary by ± 2% due to variations in the weight of some materials.

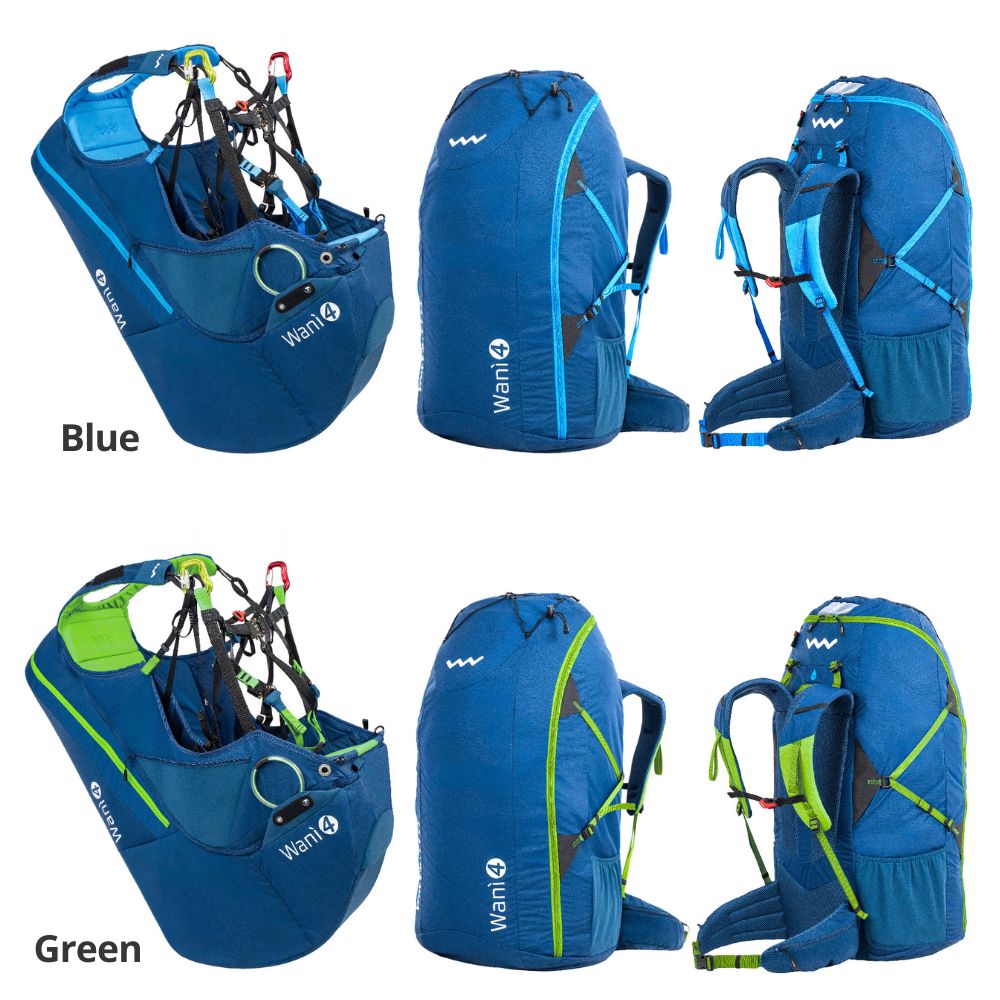

Colours
Standard colours: Blue, Green
Package
- Wani 4 reversible harness & rucksack
- Self-inflating protection with spring
- Seat made of polypropylene with a flexible front section
- Connecting carabiners
- Speed bar
- Reserve handle with inner container
- No. 2 elastic loops for closing the emergency parachute flap
Optional extras
- Woody Valley LIGHTSHIELD Protection
- Woody Valley Relax Bar
- Finsterwalder Quickout karabiners
- Reserves
- Instruments
- Helmets
- Radio, Camera & Phone Holders
- Maillons
- Soft Links
Wani 4: next evolution of its predecessor

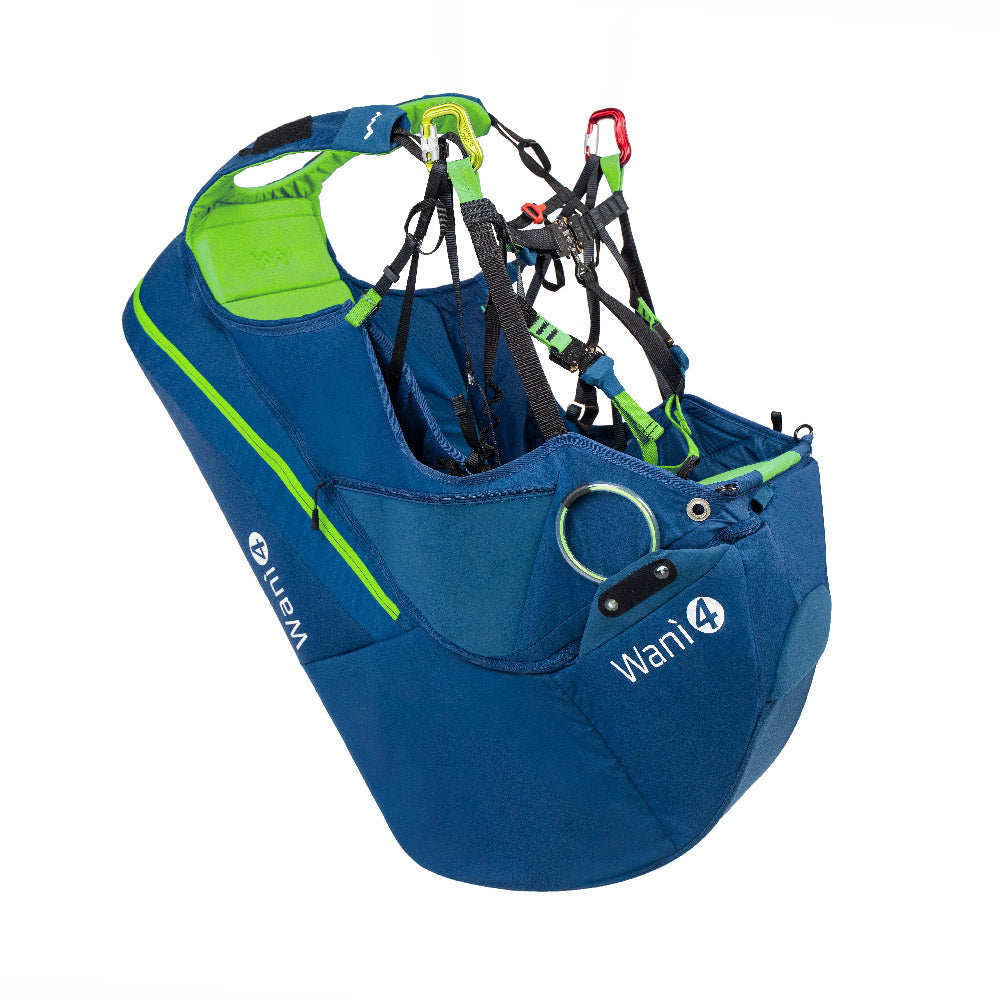

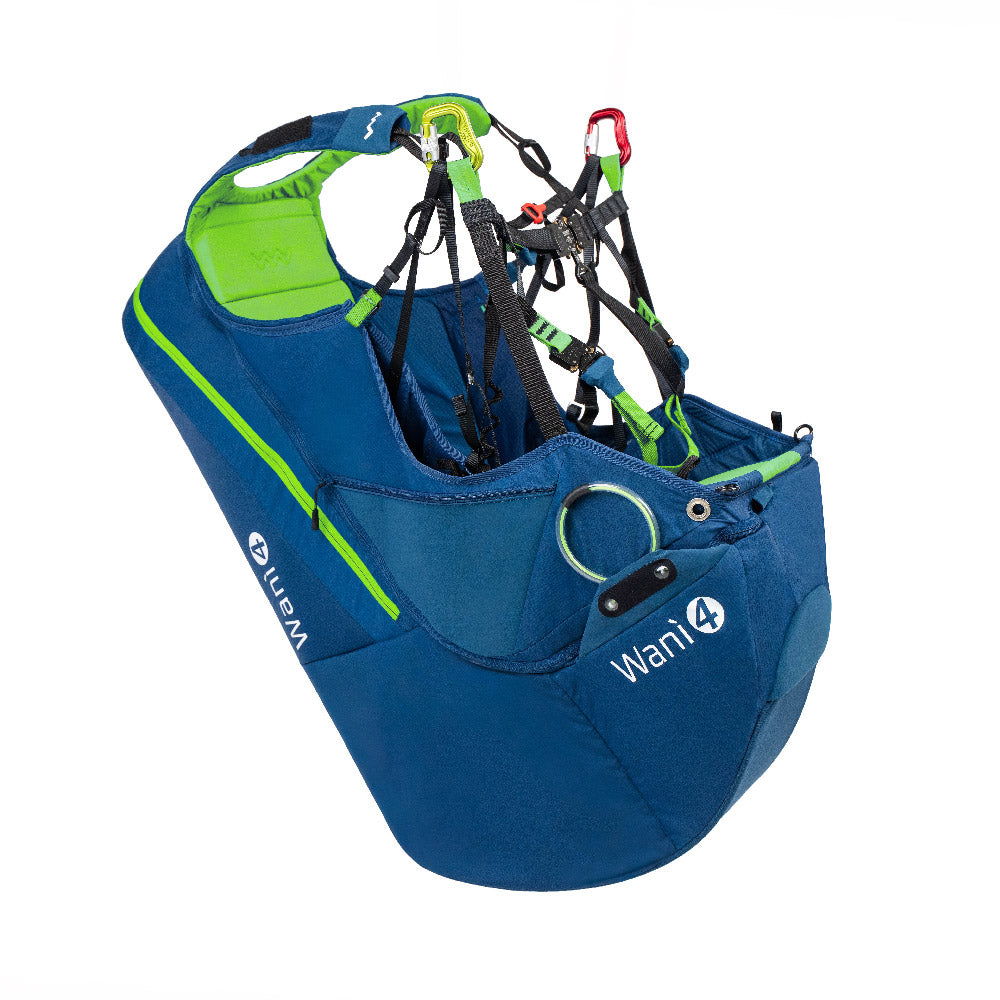

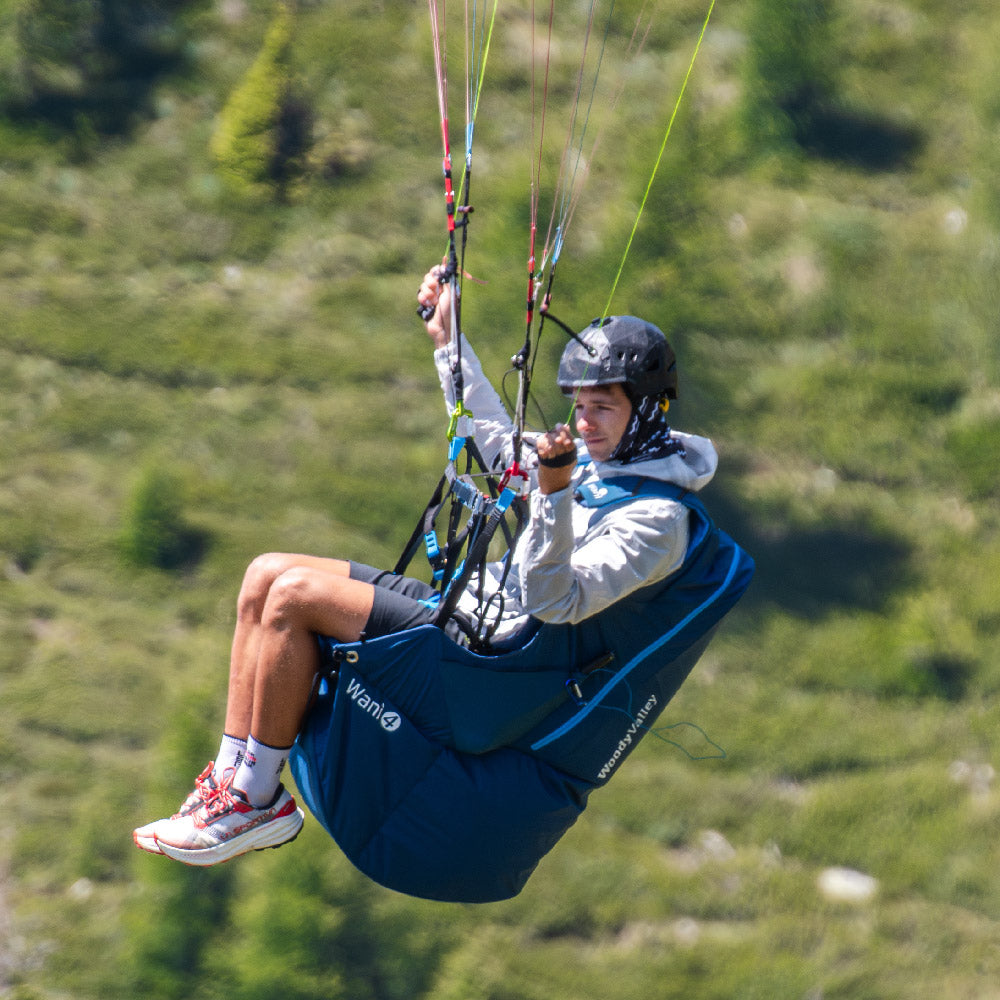

Woody Valley Wani 4 is a reversible harness designed to accompany pilots through every phase of flight, combining comfort, safety, and ease of use. The strap system geometry has been refined to provide precise and progressive handling, while ensuring excellent passive safety.

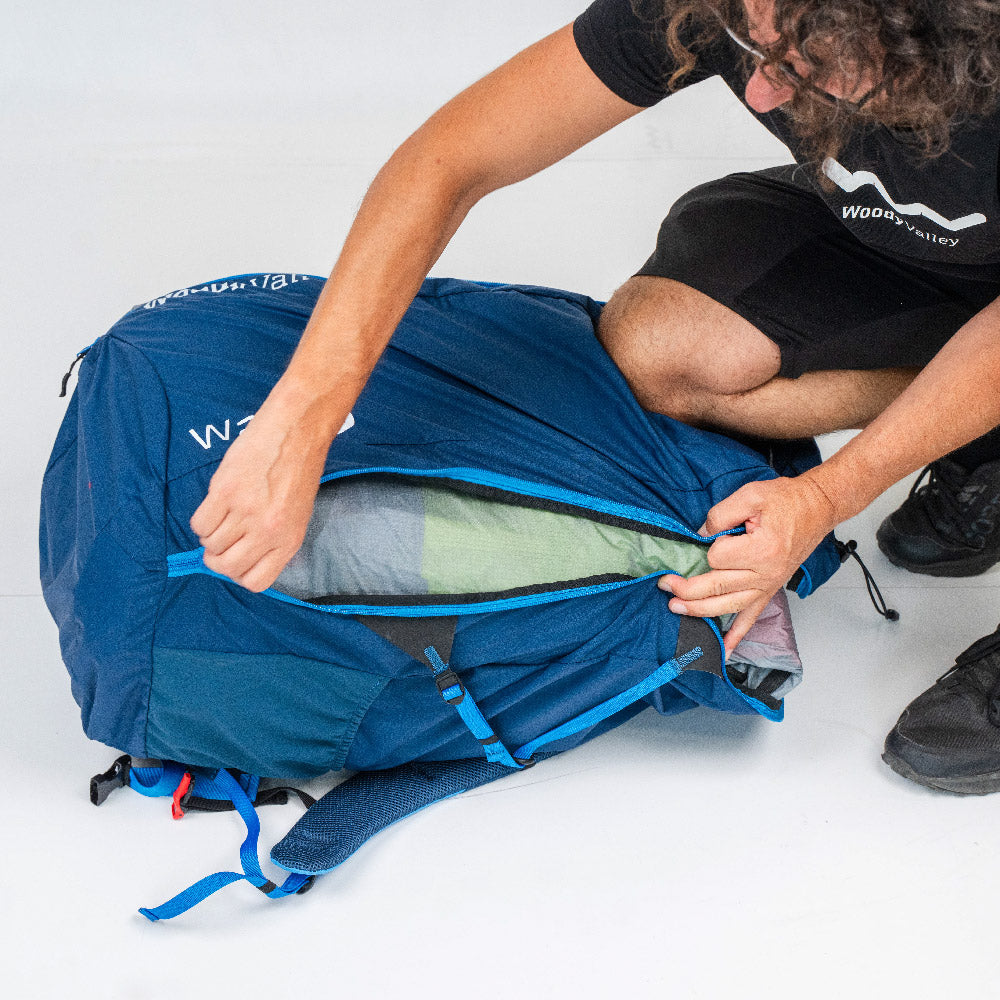

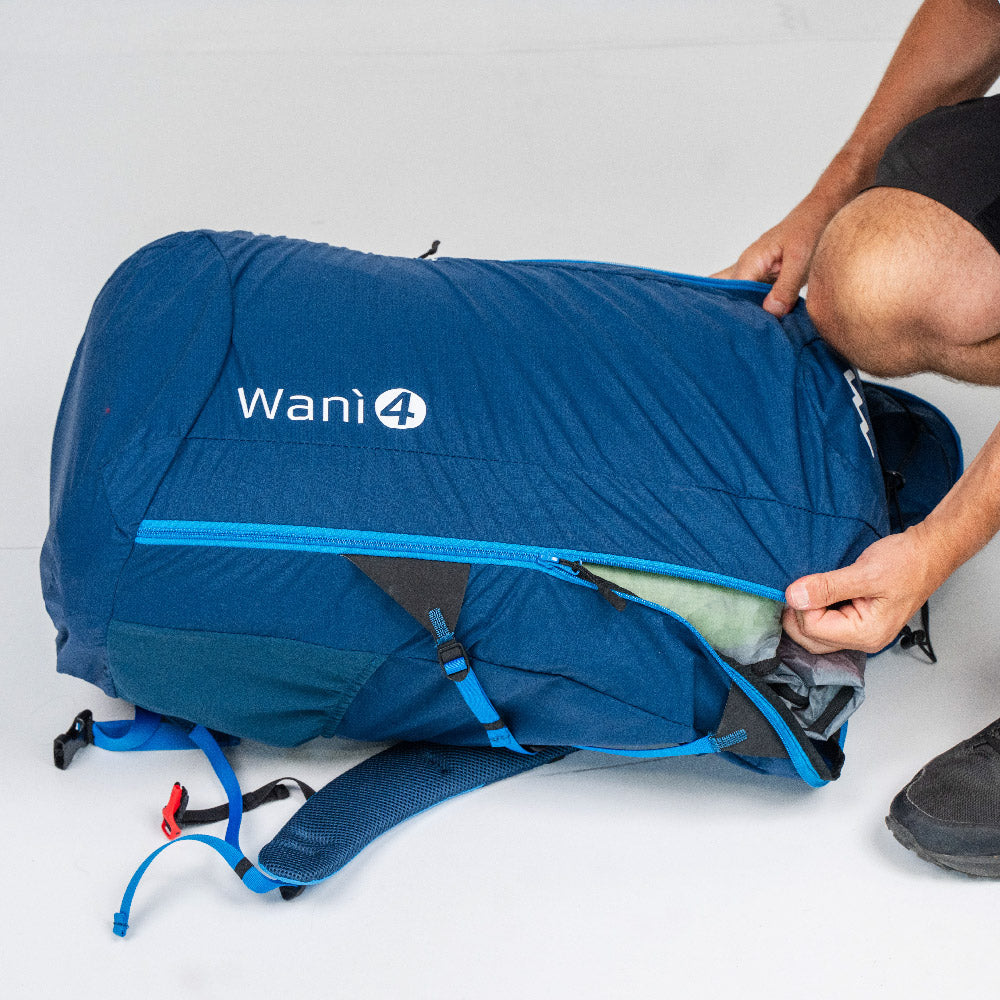

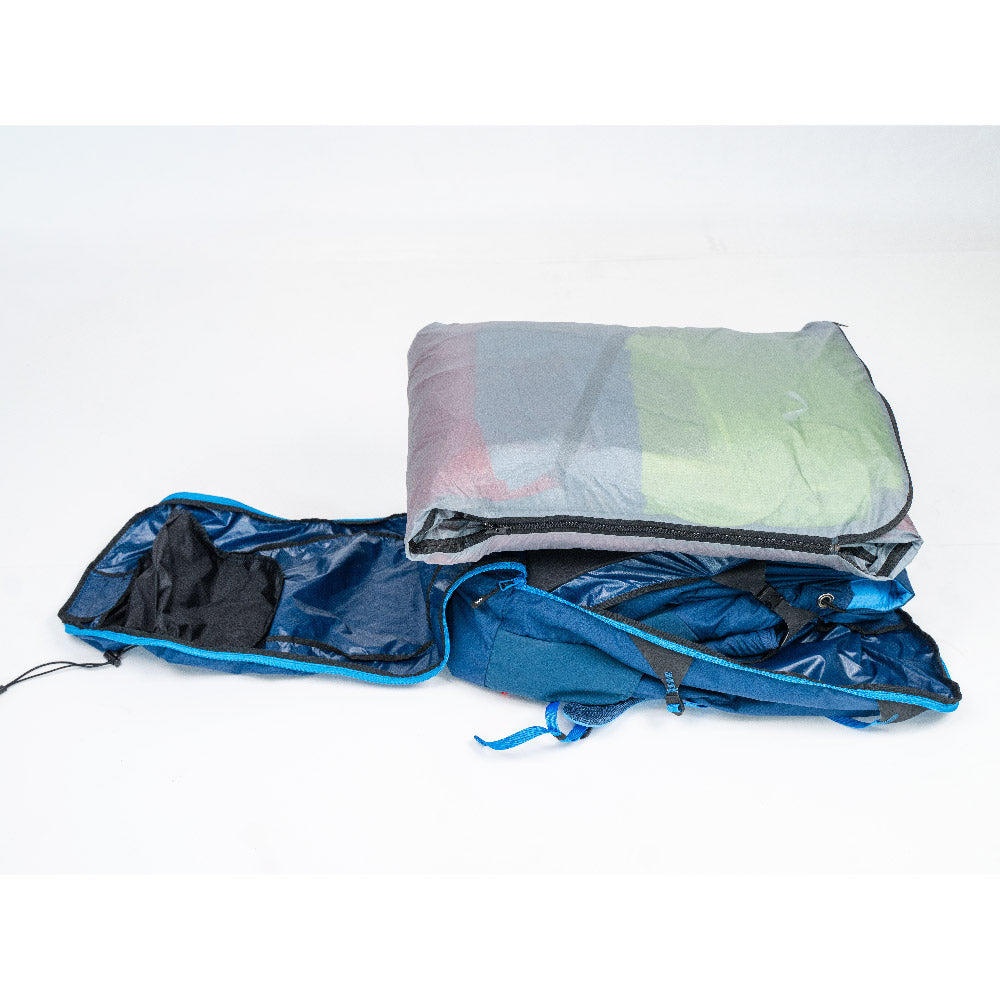

The reversibility system has been completely redesigned, featuring a new backpack that can be detached using two zips. This innovative solution significantly enhances both the user experience and overall aesthetics. The load capacity and weight distribution have been optimised to make ground transportation effortless.
With a weight of just 4.20 kg in size M, Wani 4 delivers all the features expected from a complete harness, refined down to the smallest detail.
Harness features
- 4 sizes (S-M-L-XL), 2 colourways
- Reversible with a removable rucksack
- 4.20 kg (M size, with rucksack M)
- Type of back protection: Self-inflating airbag

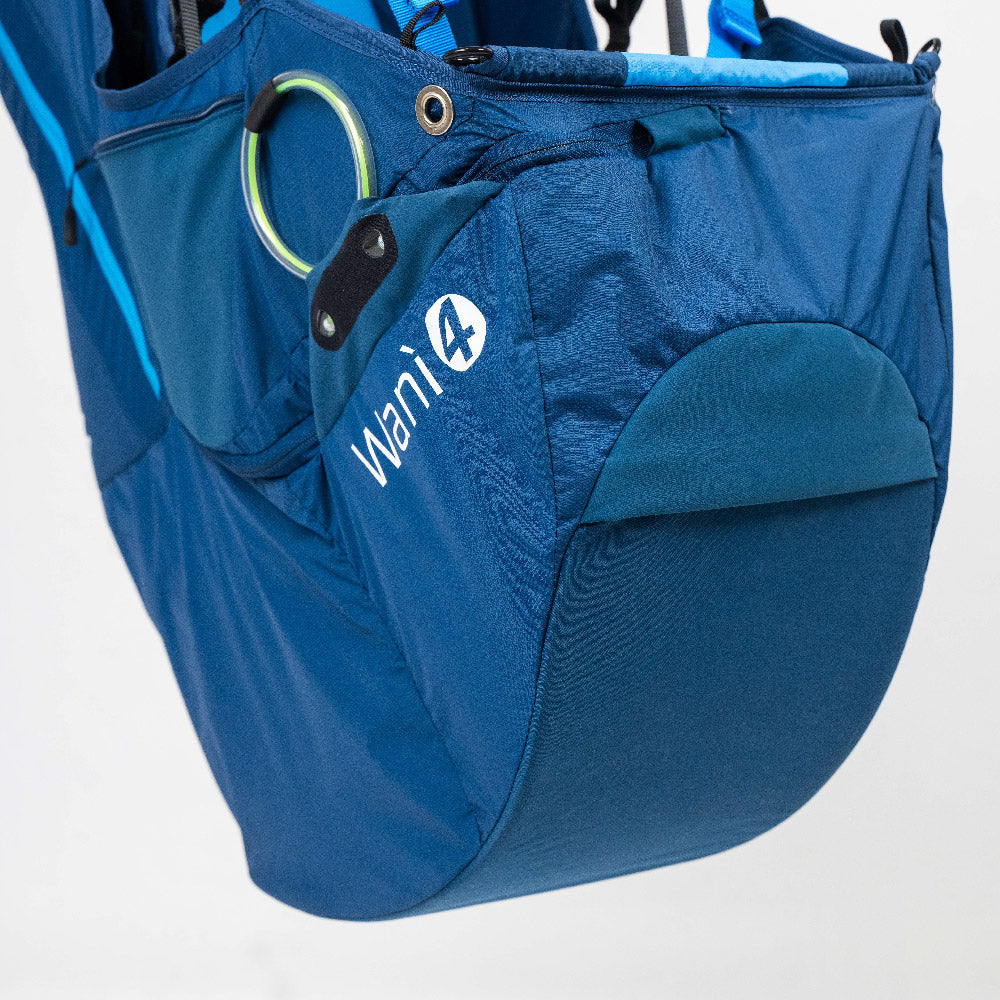

- Emergency parachute housing: Container under the seat with side handle
- Self-inflating protection with spring
- New geometry for improved stability

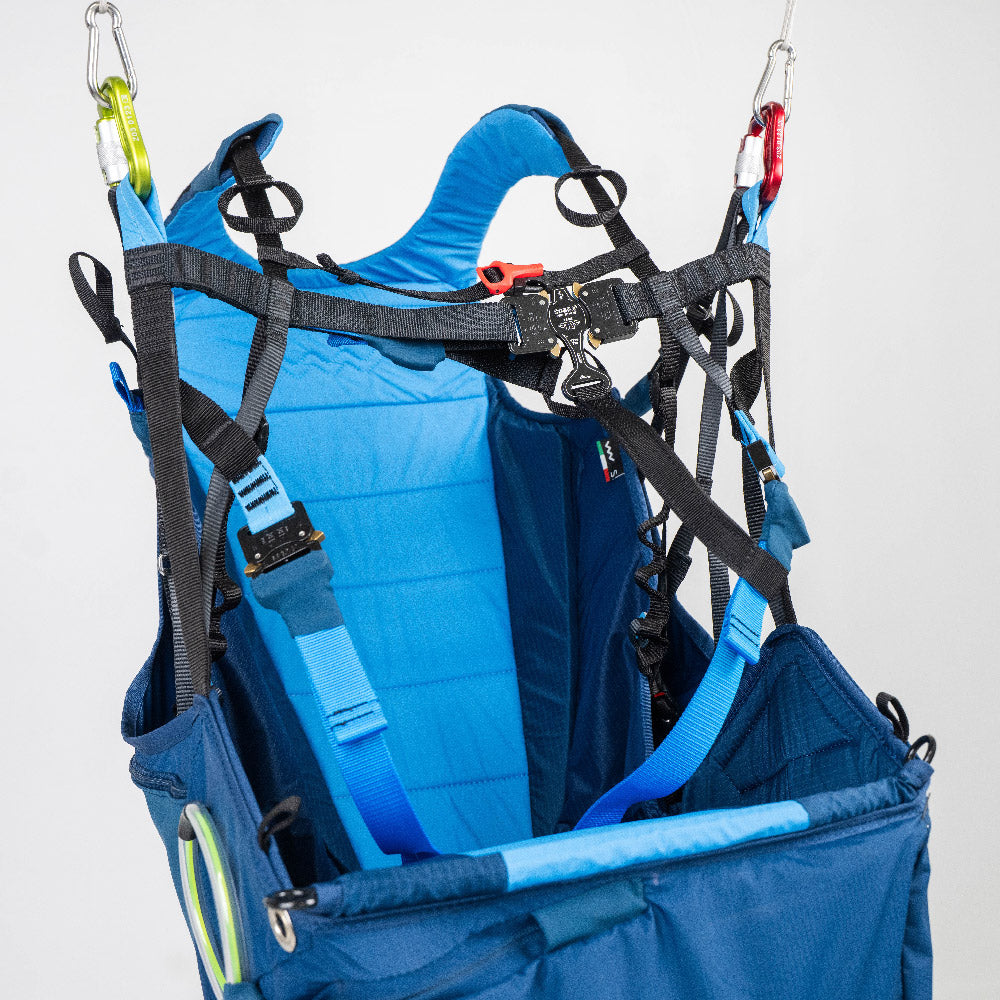

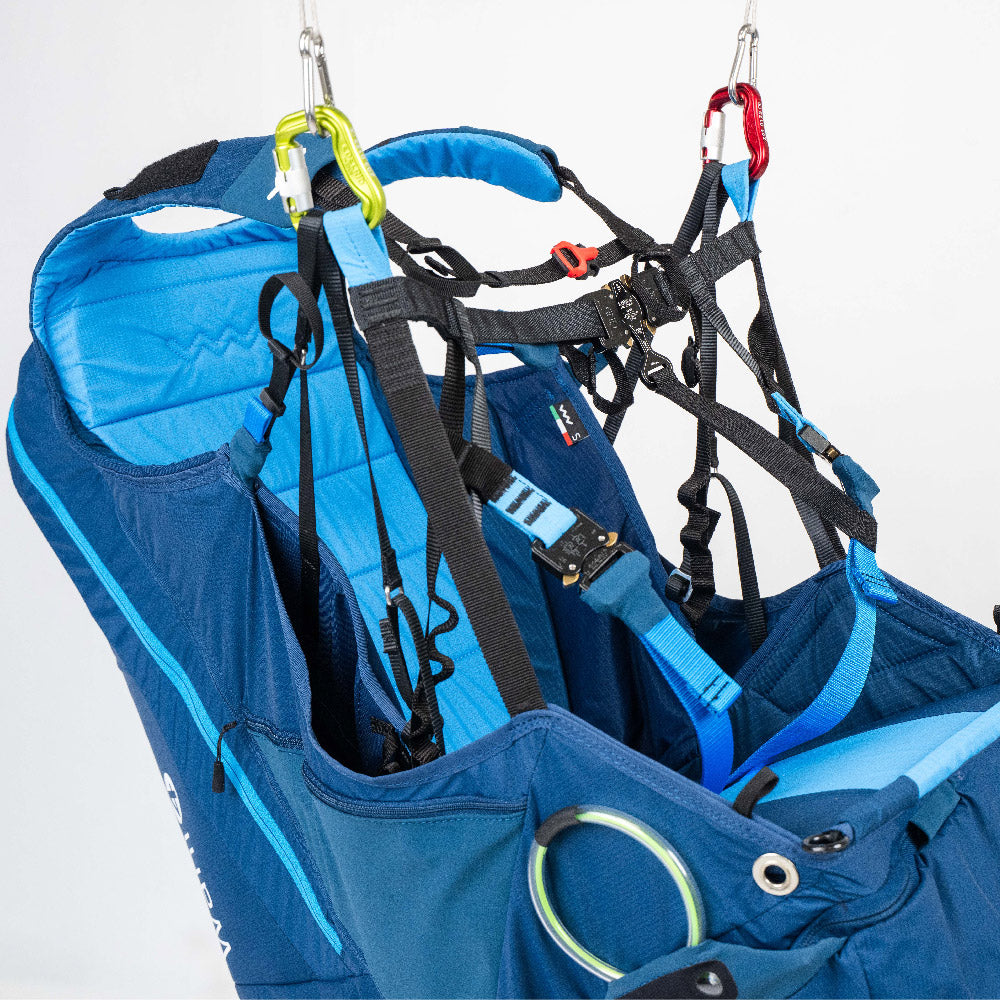

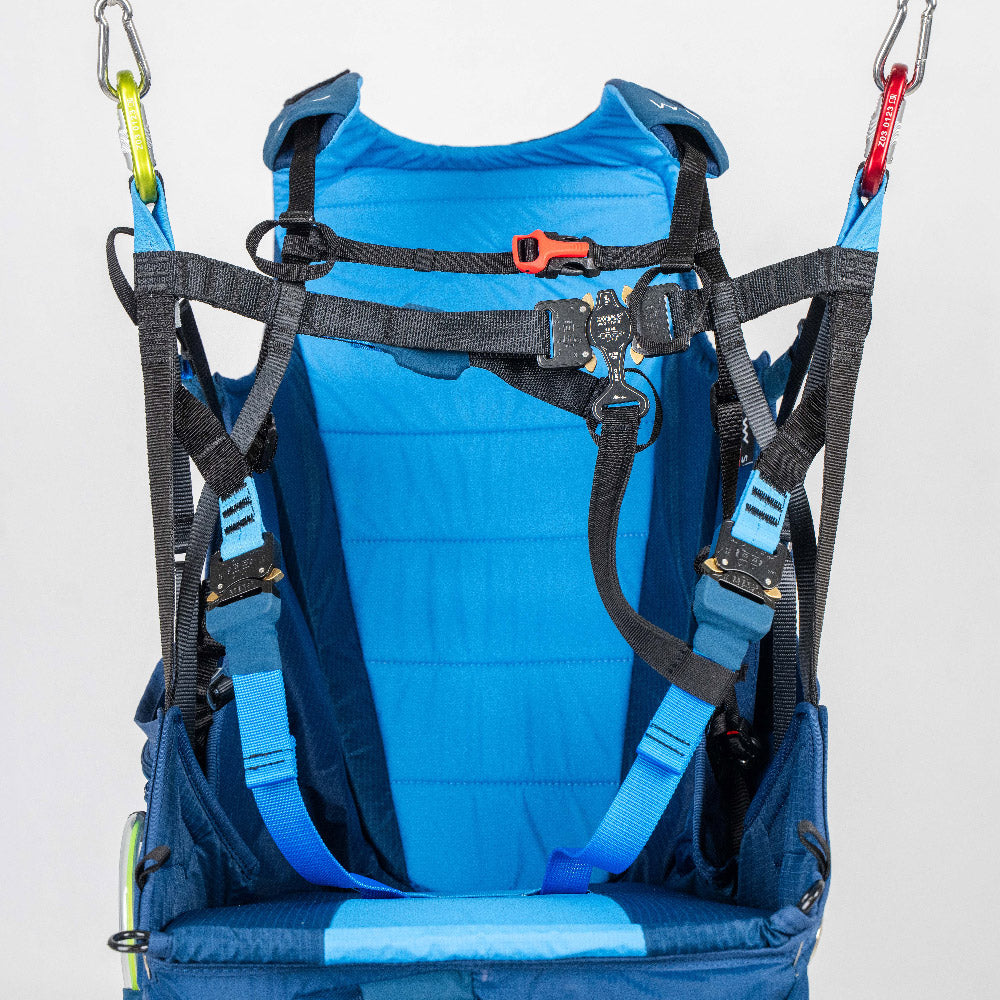

- T-Lock closing strap system

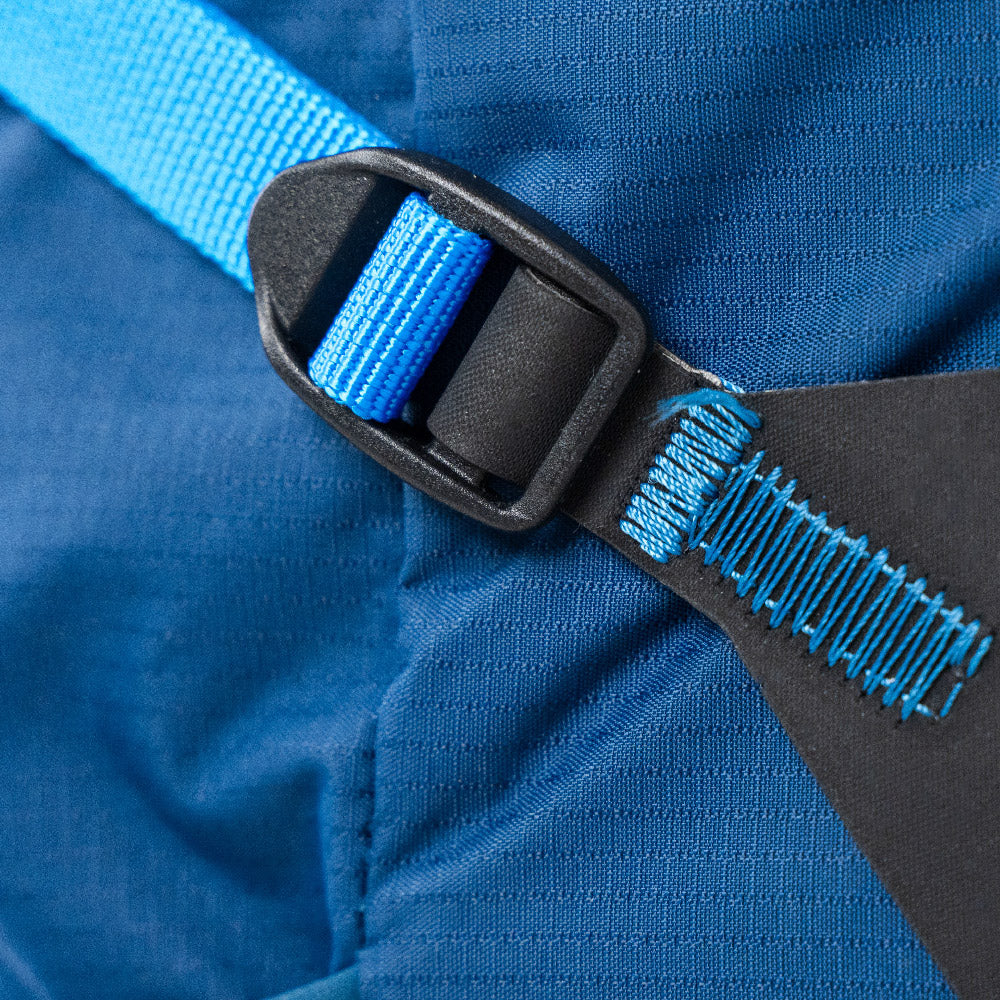

- Simple and intuitive adjustments

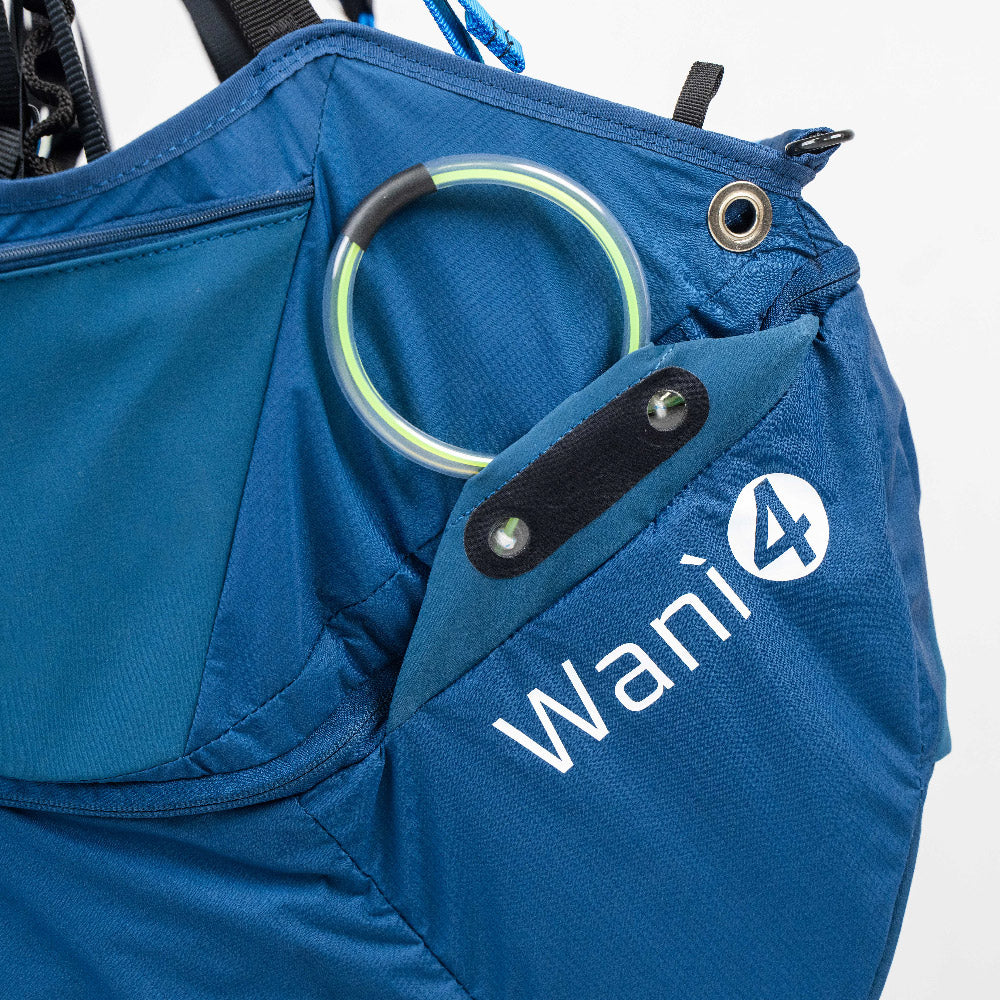

- New reserve handle with inner container
- Spacious back pocket

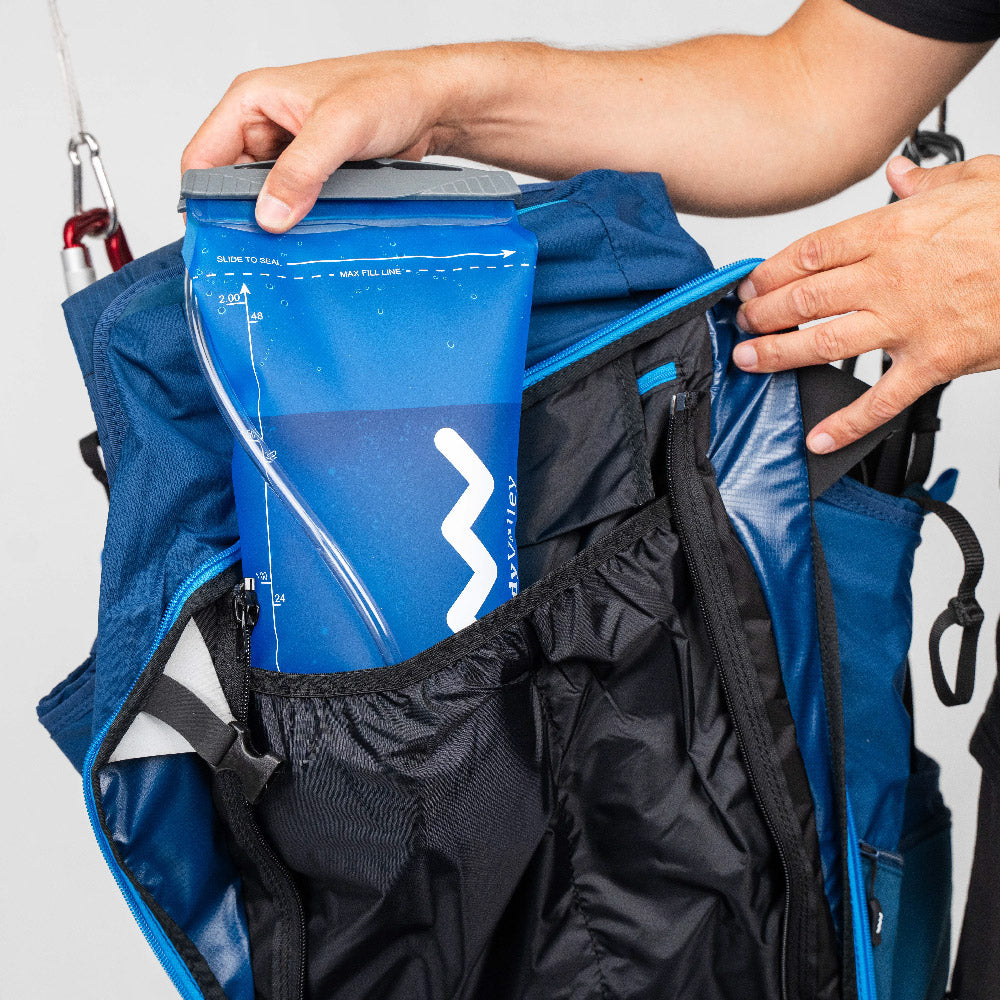

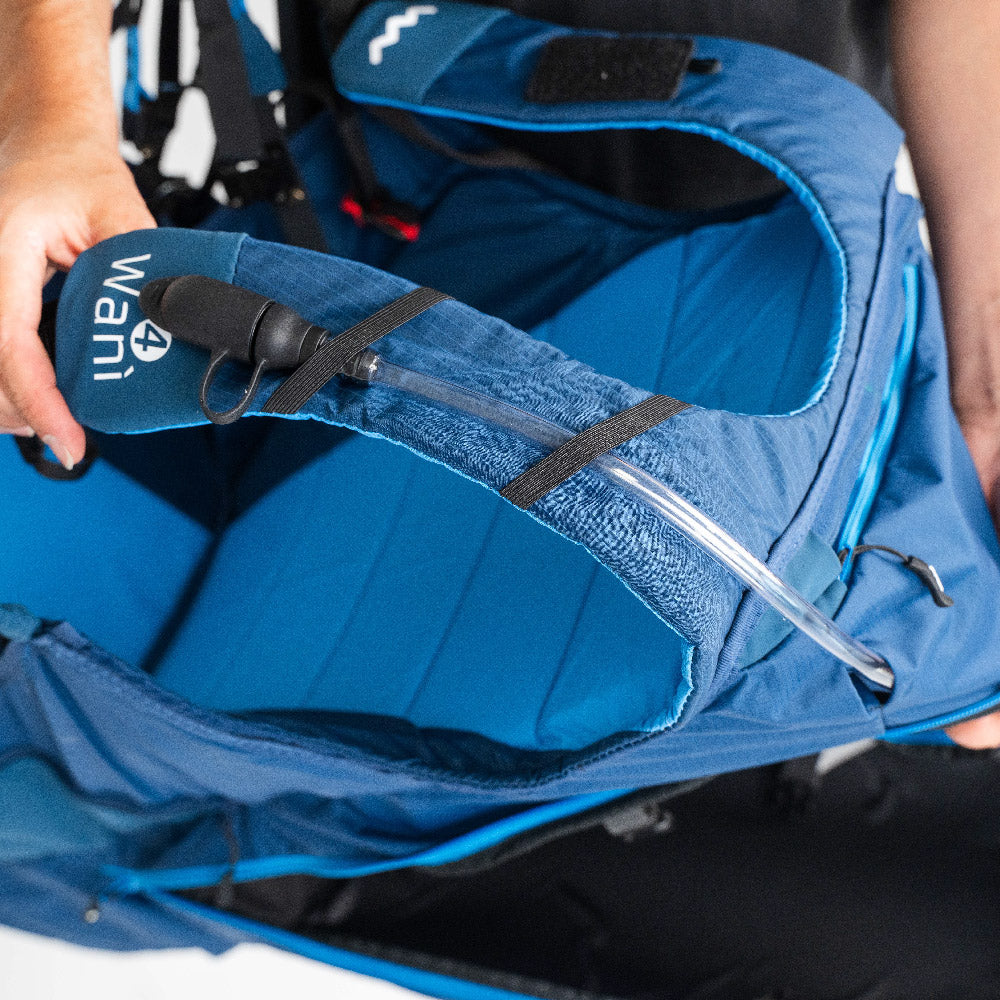

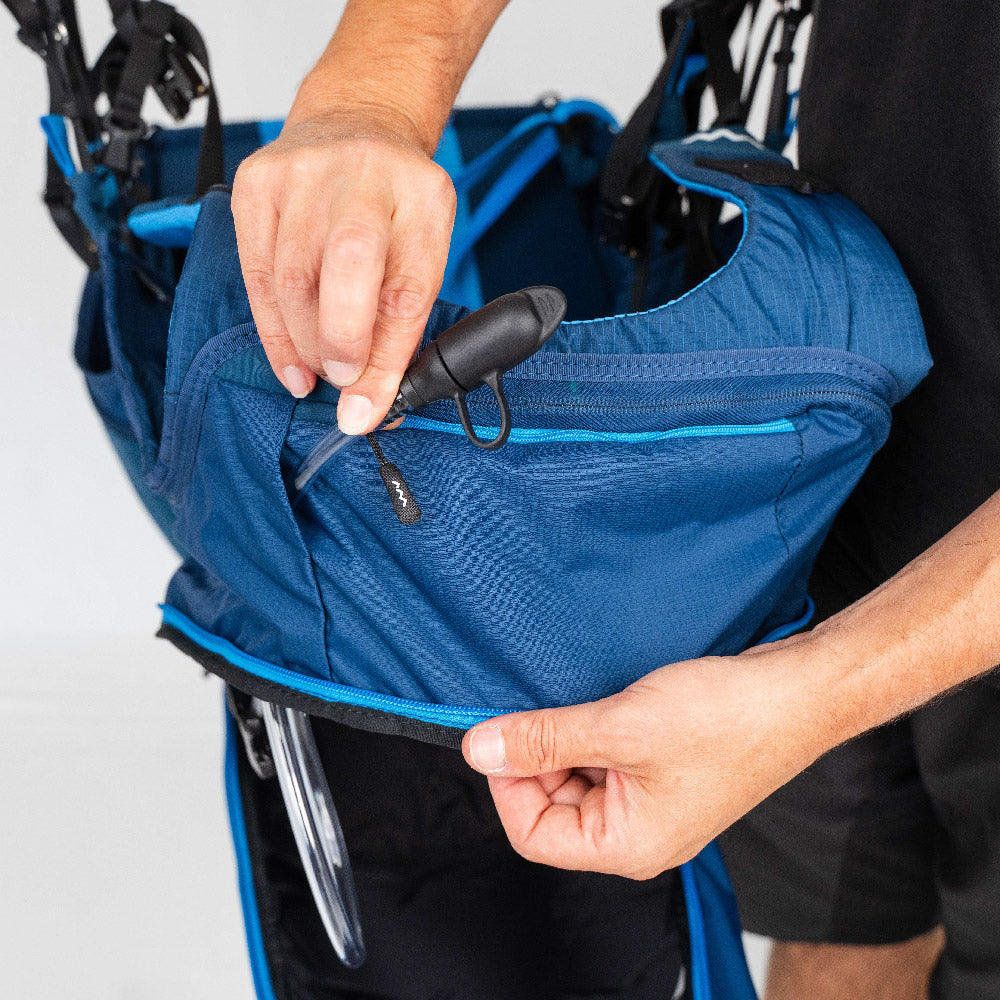

- Hydration system pocket
- Side pockets
- Speed bar included
- Optional Lightshield protection

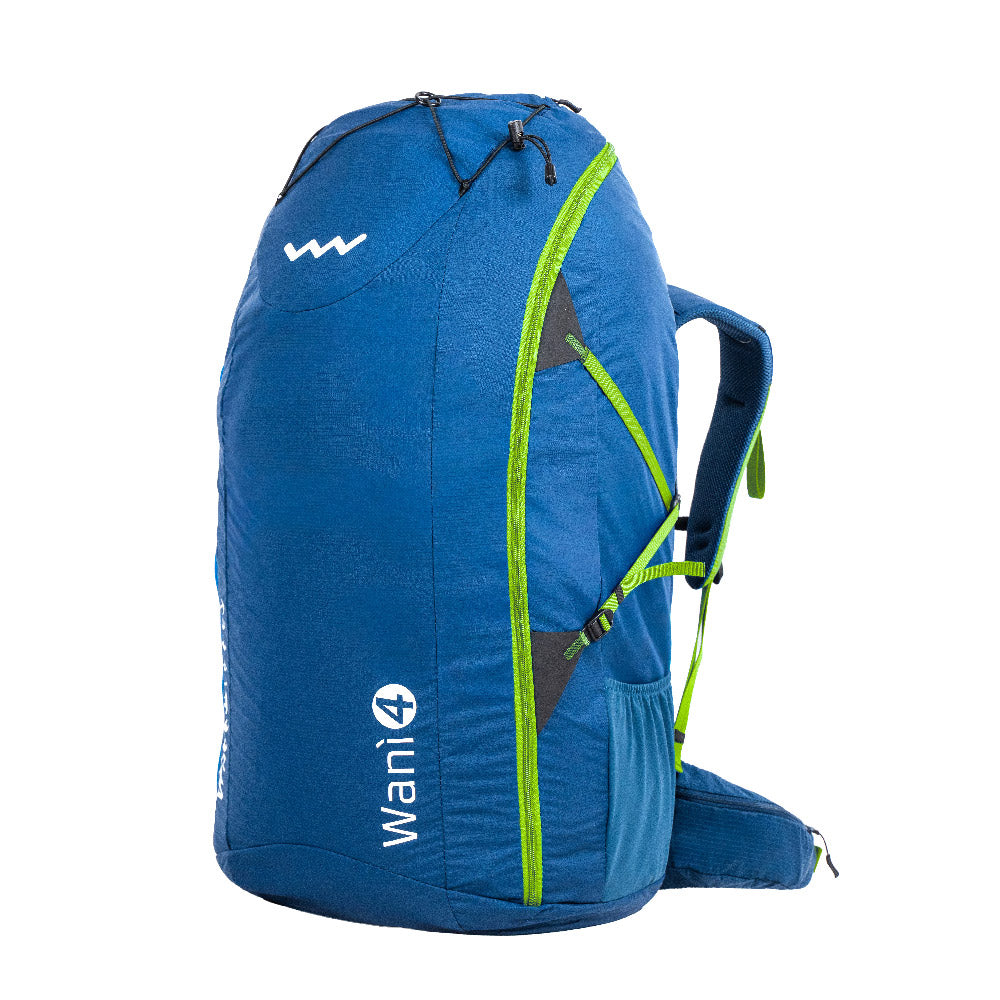

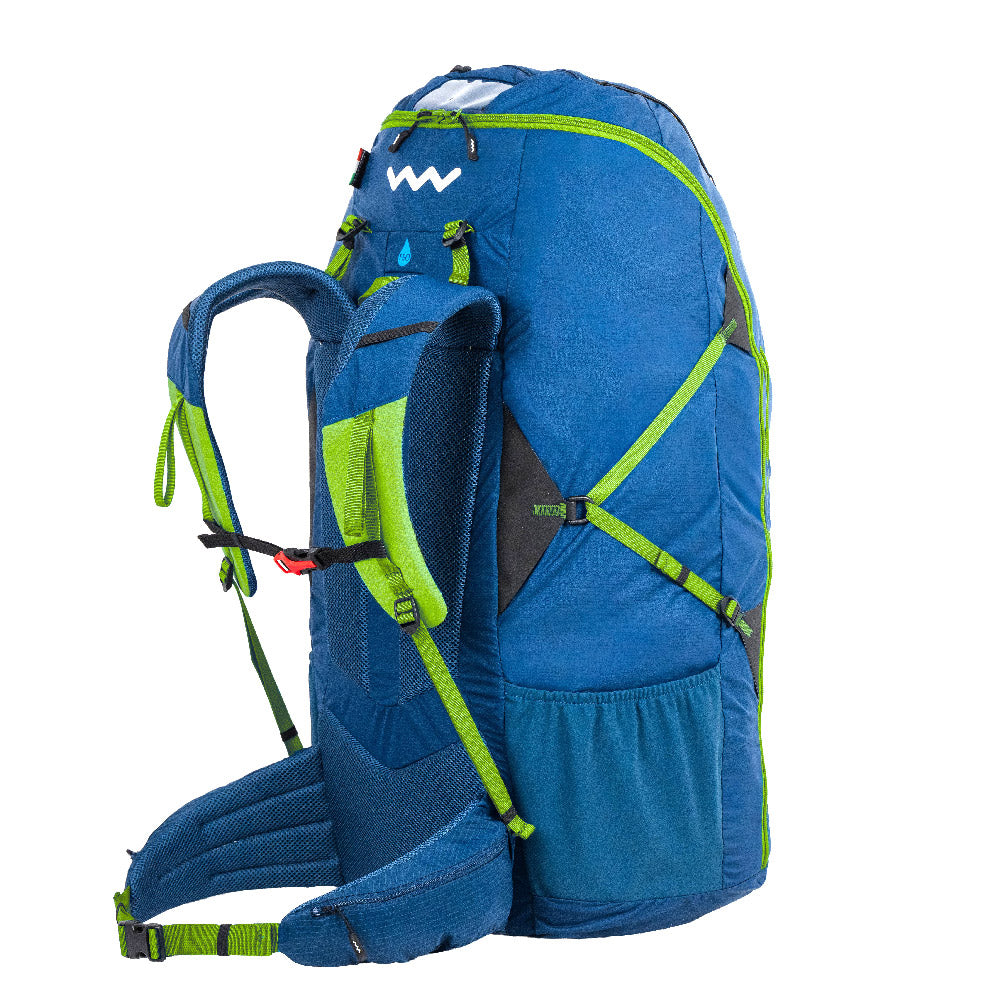

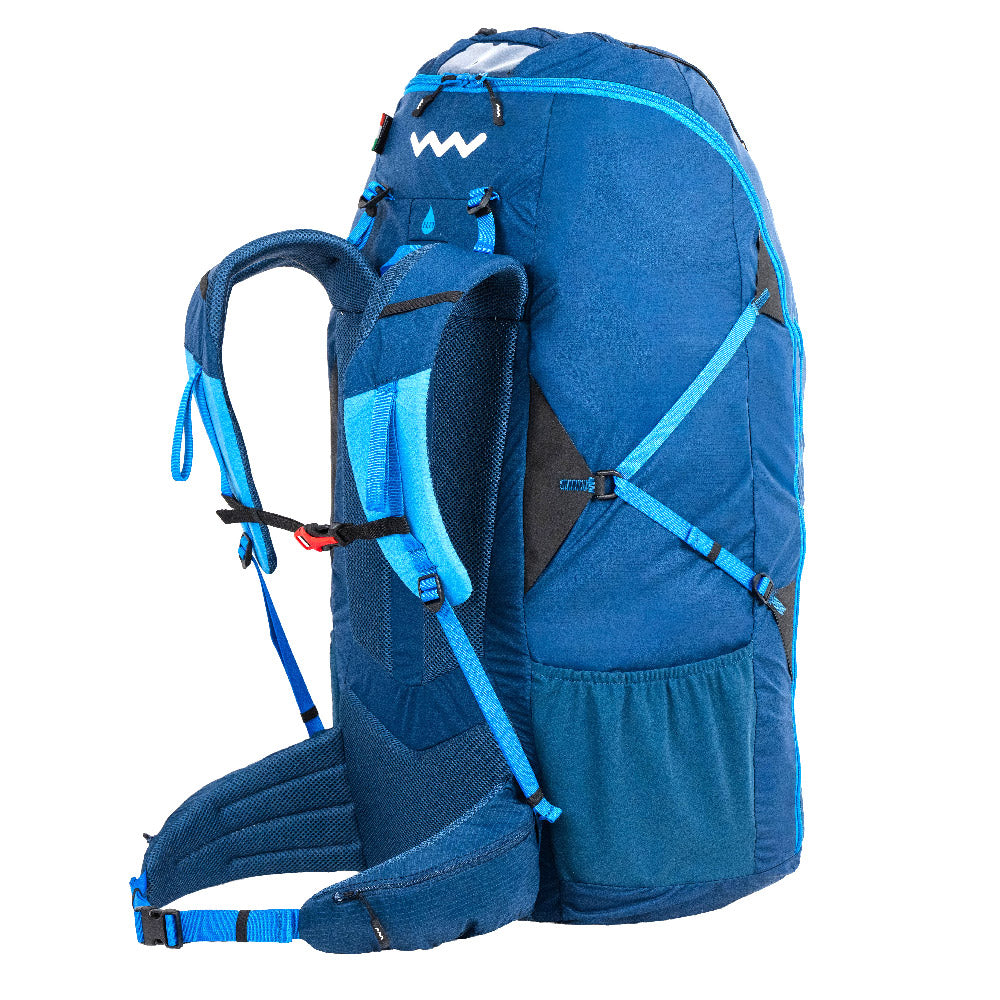

Rucksack features
- 4 sizes available (S-M-L-XL)
- Detachable rucksack

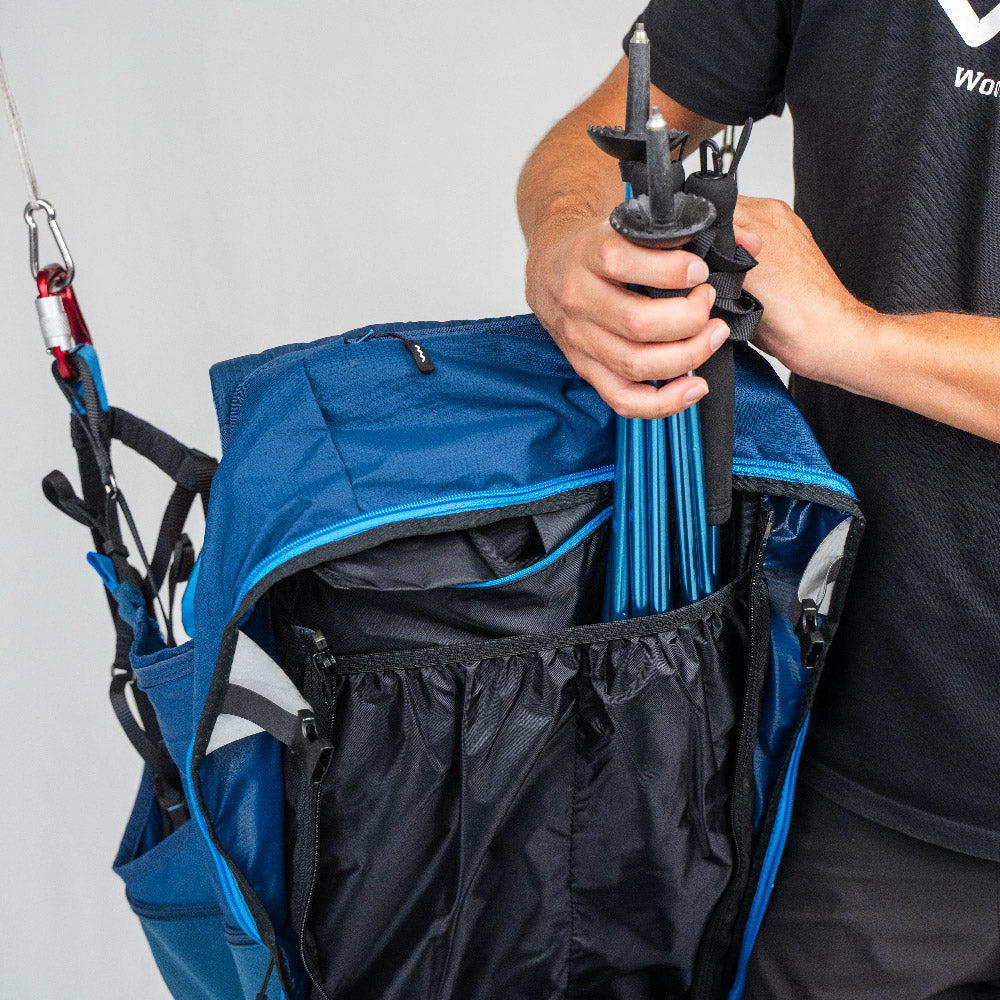

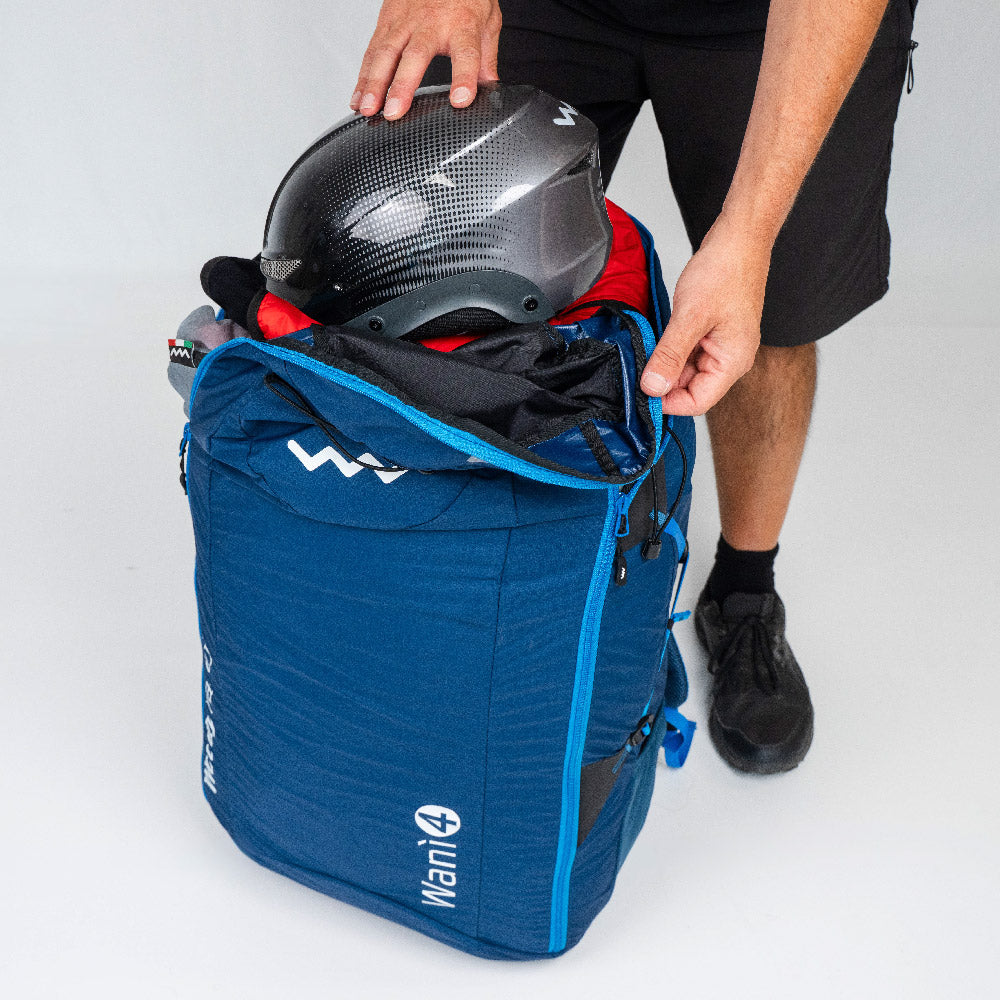

- Very spacious rucksack

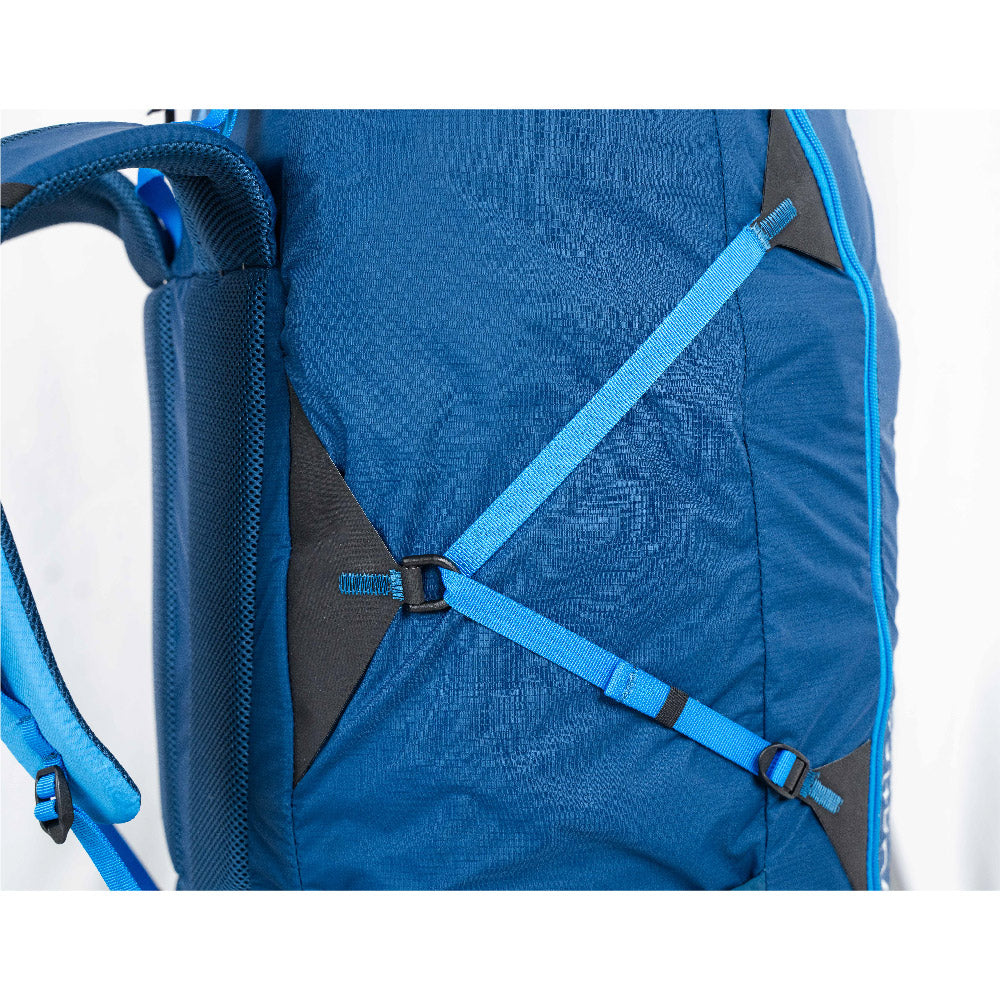

- Compression system closure

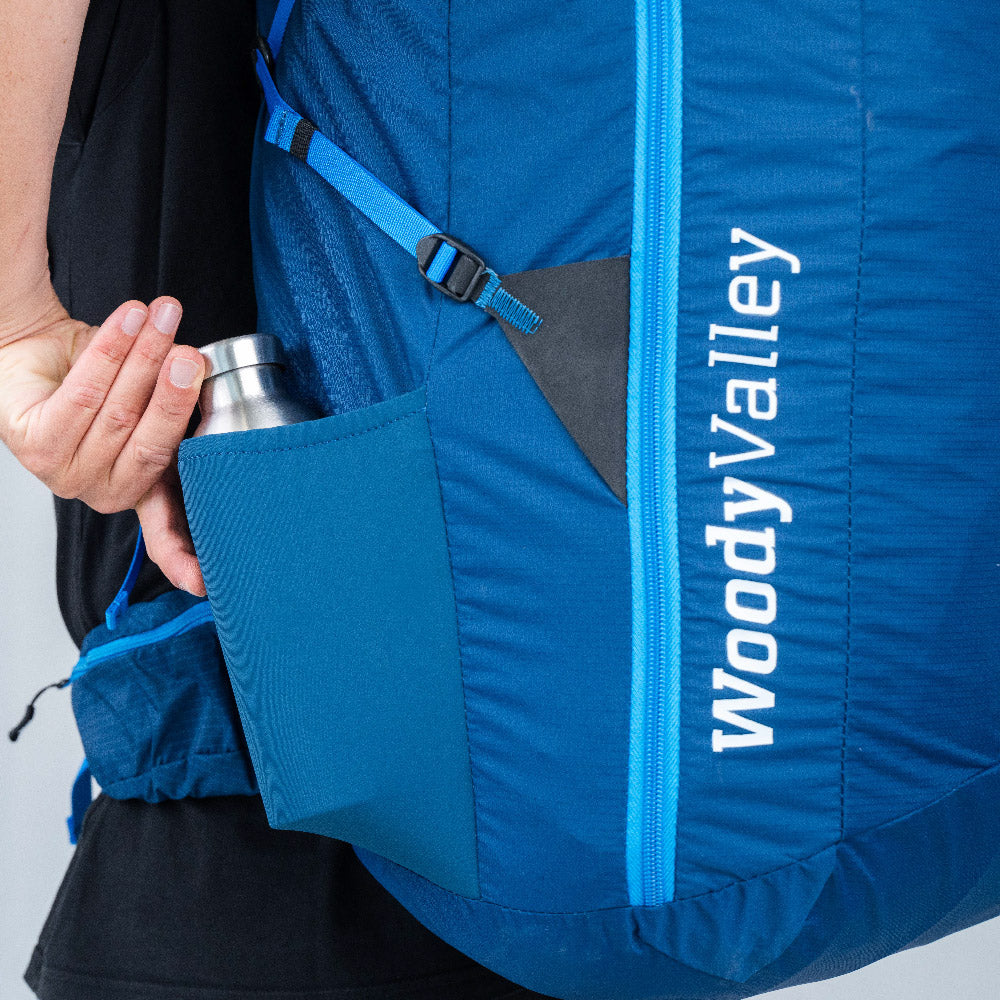

- Side bottle holder pockets
- Hydration system pocket
- Pockets on the belt
The protection system
Woody Valley Wani 4 once again features our proven self-inflating spring airbag protection system. The steel spring does not provide direct protection itself; instead, it generates the force required to expand the airbag, ensuring that the system is immediately ready for use.
The advantage is significant: the protection reaches 100% of its protective capacity even before the take-off run and maintains this level of effectiveness throughout the flight, until the harness is folded away and stored in the backpack. The spring also ensures that the airbag retains its shape — and therefore its performance — over time, regardless of humidity, temperature variations, or extended storage periods.
Additional benefits include low weight and a reduced packed volume when the harness is folded. The spring-loaded self-inflating system therefore combines the key advantages of the two main protection solutions currently available: airbag and foam protection.
A semi-rigid back protector is also available as an option and can be fitted into the dedicated pocket in the rear container.
Wani 4 Video Manual

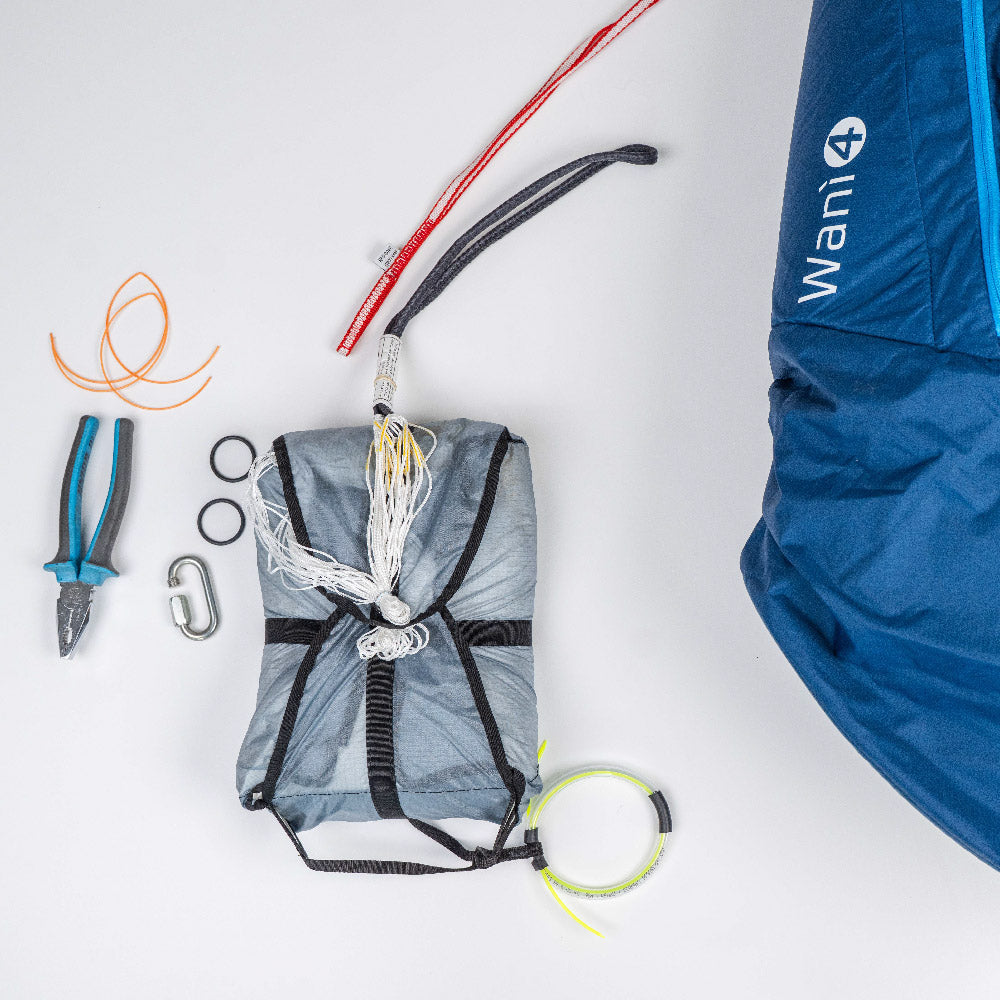

Wani 4 Manual Parachute
