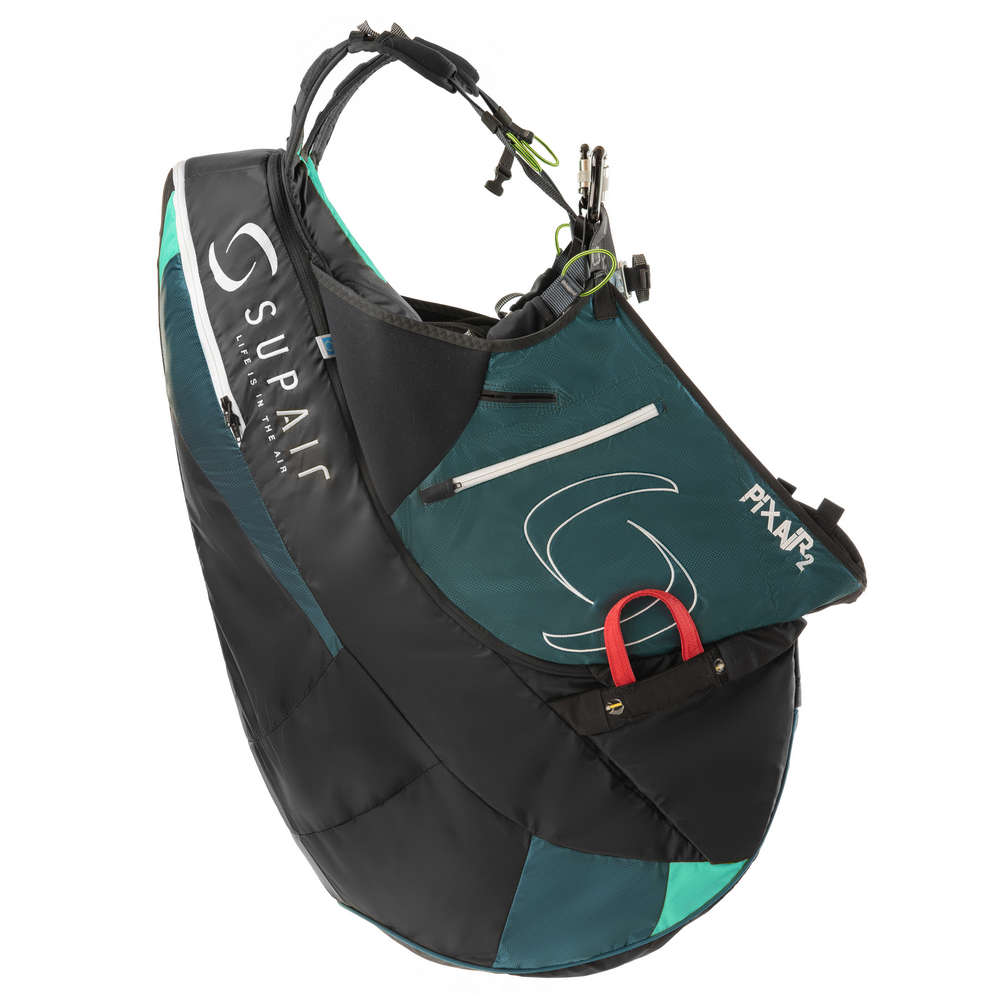

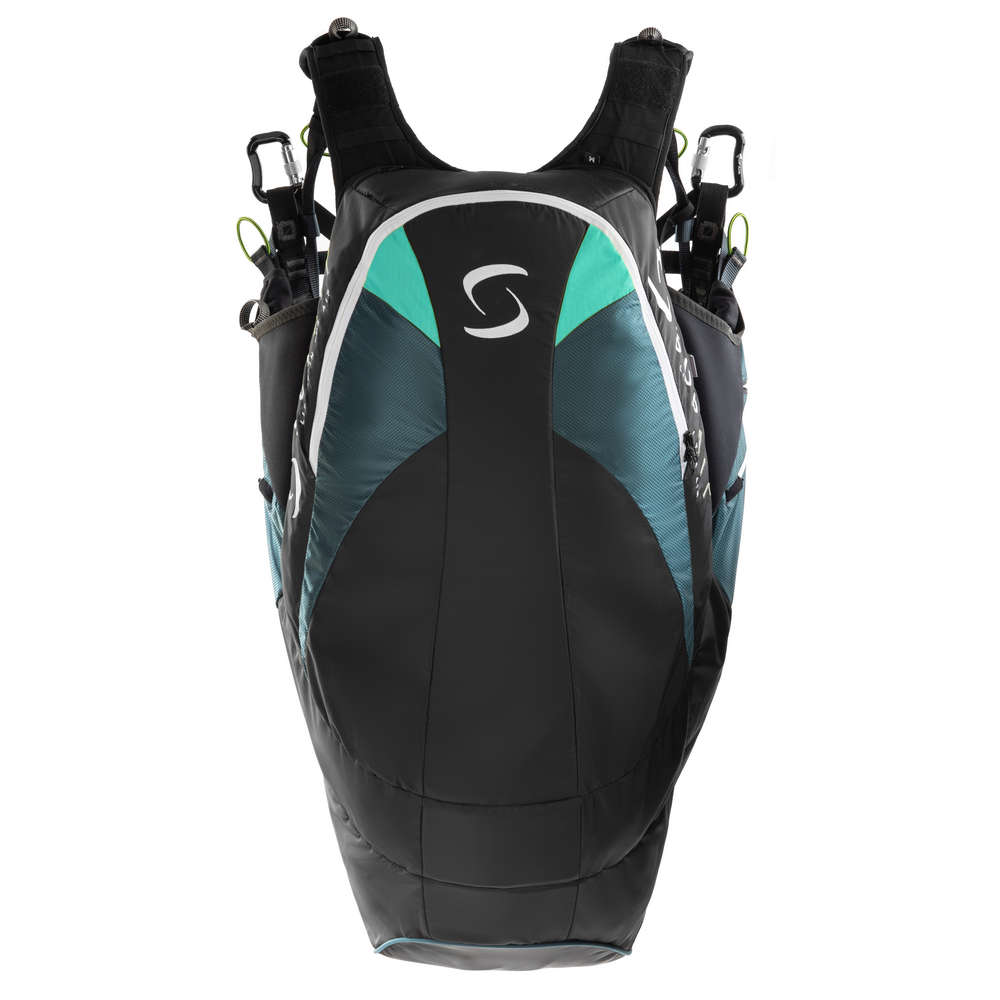

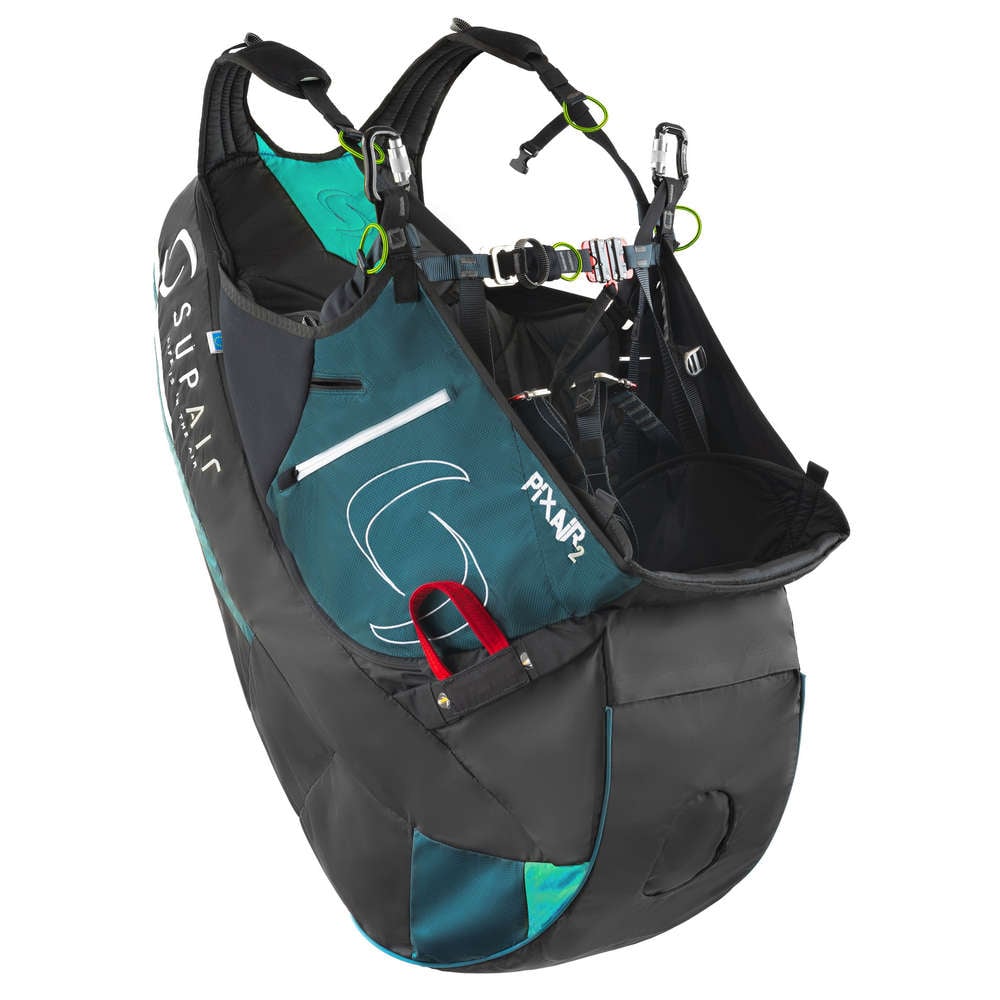

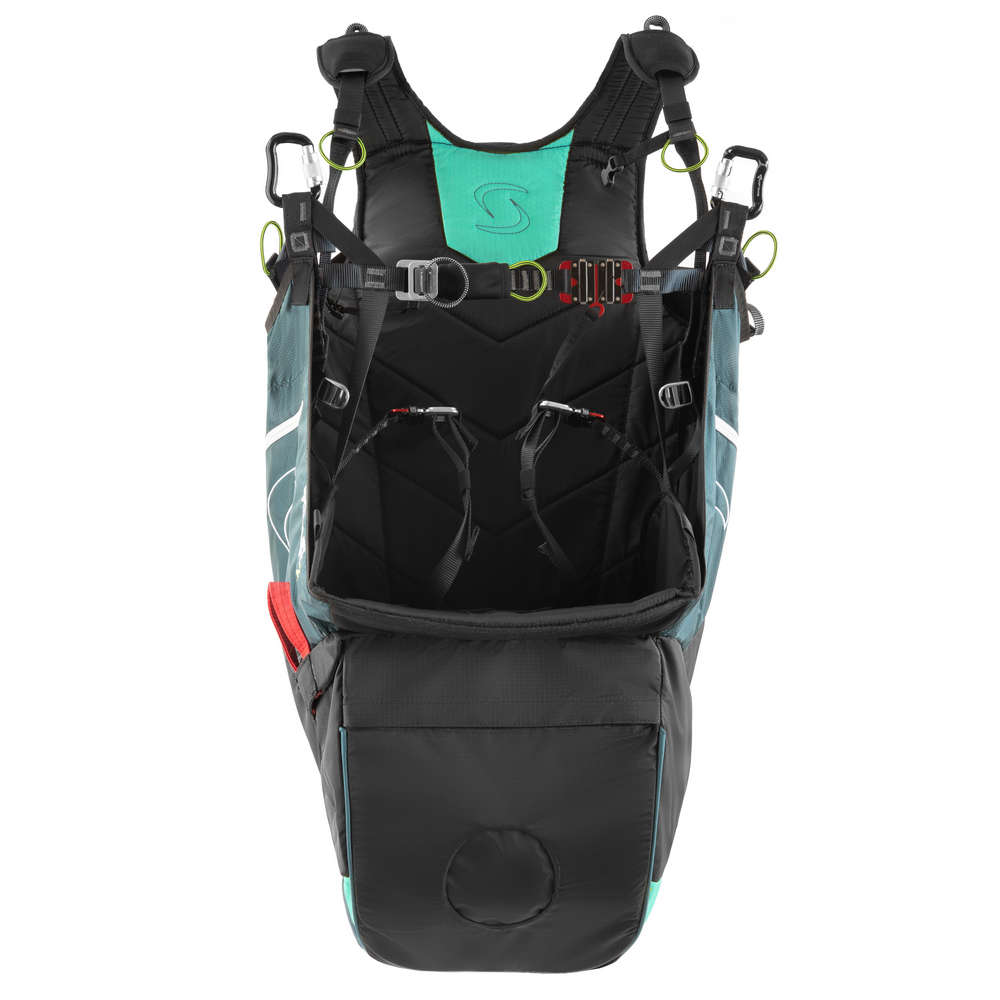

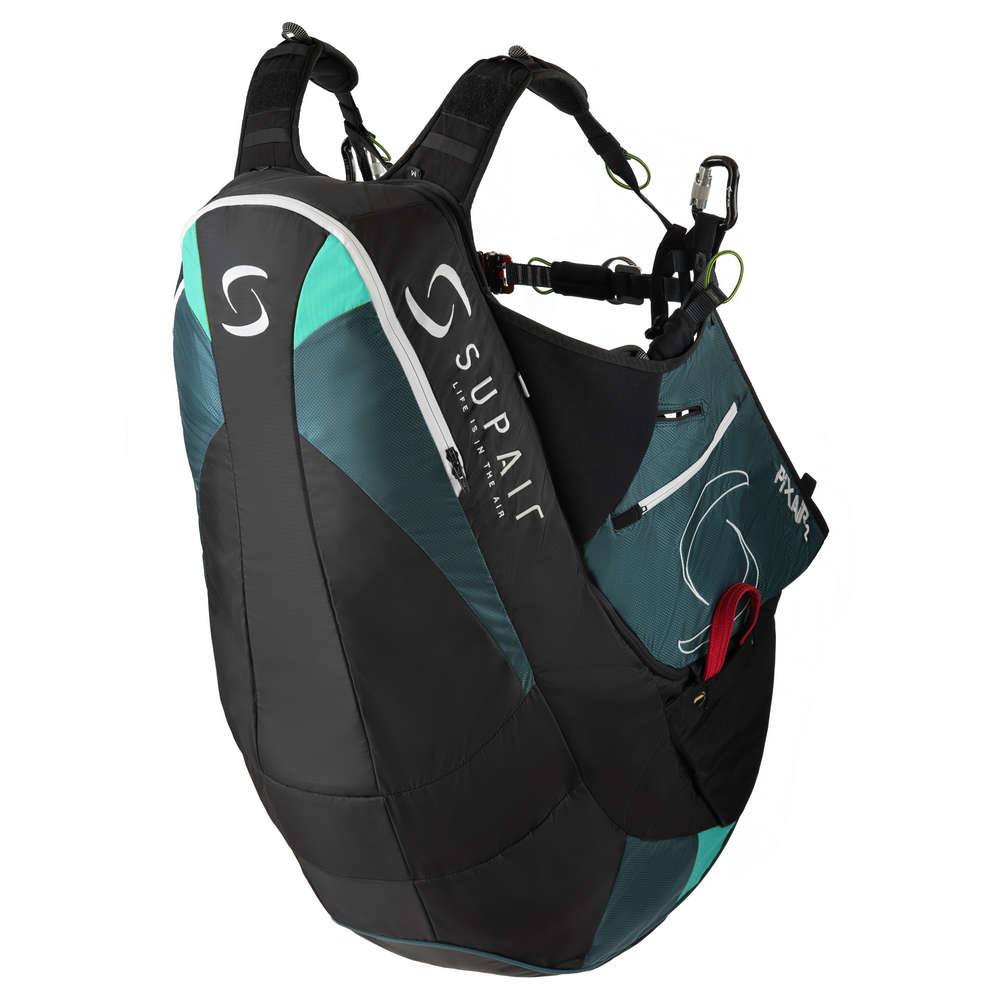

Supair PIXAIR 2 (PAST MODEL)

Technical data

Size		S	M	L
	Pilot size (cm)	155 / 175	170 / 185	180 / 195
	Pilot weight (min-max) (kg)	60 – 80	65 – 85	70 – 100
	Harness weight (delivered) (g)	3160	3270	3380
A	Back length (cm)	57	64	70
B	Back inclination length (cm)	35	37	38
C	Seat length (cm)	46	47	48
D	Seat width (cm)	35	37	40
E	Carabiners height (cm)	44	45	46
F	Distance between carabiners (cm)	36 – 46	36 – 46	36 – 46

Package

• 2 30mm Supair Zicral self-locking karabiners
• Parachute pocket handle
• Polypropylene seat plate
• Elasticated speed-bar recoil
• User manual

Optional Extras

• Supair FreeSpee Speedbar
• Supair Retractable Foot Rest (Foot Stirrup)

PIXAIR 2

• Stable with a proven, easy and intuitive geometry.
• Safety: Efficient pre-inflated airbag.
• Comfortable: Designed with excellent support distribution.

PIXAIR 2 takes after the PIXAIR design and improves on the following points:

• New parachute pocket: with better sealing, an opening with “tulip” type flaps, an internal pocket to keep the parachute from turning over.
• Easier seated transition.
• Redesigned dorsal pocket with a smaller volume.
• Interchangeable Airbag Mylar stiffener.
• New design

The PIXAIR 2 is the AIRBAG progression harness within the SUPAIR range. On the ground, it is easy to handle and set up before inflation and takeoff. In-flight it is very comfortable with a rather upright posture. Its geometry brings peace of mind in flight by providing good feedback from the wing.

The PIXAIR 2 is lightweight (3270g in size M), compact and easily folded due to its AIRBAG design. Safety is complete with a high-performance AIRBAG (X g during the certification tests), with stable geometry, a reserve parachute pocket under the seat plate and an easy to locate reserve parachute handle.

Safety

A – RESCUE PARACHUTE POCKET
B – COMPLETE AIRBAG (DORSAL & UNDER THE SEAT)
C – DORSAL STORAGE POCKET

Characteristics

Piloting

• Progression & thermals
• Position: upright sitting

Safety

• Complete AirBag protection under the seat and dorsal with pre-inflated internal cells
• Adjustable reserve parachute pocket (bottom right)
• Quick-release buckles with Safe-T-Bar locking mechanism
• 30 mm Self-Locking Biners
• Self-locking light 25 mm aluminium buckles

Gear & Comfort

• Lateral wrapping skirts
• Speed-Bar pulleys
• Elasticated Speed-Bar recoil
• Foot-rest ready (retractable models only)
• AIRBAG interchangeable Mylar stiffener

Storage

• Large dorsal storage pocket independent from Airbag
• Zipping lateral storage pockets
• Pre-equipped to receive a radio
• Pre-equipped to accept the hydration pack
• Under the seat speedbar storage capacity

Adjustments

• Shoulder straps adjustments
• Backrest adjustment with lumbar support
• Chest strap adjustment
• Adjustable leg-straps length
• Seat depth adjustment

Materials

• Nylon 210D Ripstop

Certification

• LTF Norm
• EN 1651 Norm

Supair product registration

Register your Supair product here.

Downloads

• Manual
