Phi TENOR light
Select all options to view stock availability
When in stock, UK approx 2-5 workdays, other countries see shipping page
Model Status: Current model
EN Certification: EN B
LTF Certification: LTF B
Technical data
| Size (number) | XS (17) | S (19) | M (21) | L (23) | XL (25) |
|---|---|---|---|---|---|
| certified weight range (kg) | 50-75 | 65-95 | 75-105 | 90-120 | 105-140 |
| standard weight range (kg) | 50-75 | 65-85 | 75-95 | 90-110 | 105-130 |
| extended weight range (kg) | - | 85-95 | 95-105 | 110-120 | 130-140 |
| flat area (m²) | 20.6 | 22.74 | 24.98 | 27.27 | 29.67 |
| projected area (m²) | 17.45 | 19.25 | 21.15 | 23.09 | 25.12 |
| flat aspect ratio | 5.14 | 5.14 | 5.14 | 5.14 | 5.14 |
| projected aspect ratio | 3.67 | 3.67 | 3.67 | 3.67 | 3.67 |
| number of cells | 50 / 100 | 50 / 100 | 50 / 100 | 50 / 100 | 50 / 100 |
| projected span (m) | 8 | 8.41 | 8.81 | 9.21 | 9.61 |
| flat span (m) | 10.29 | 10.81 | 11.33 | 11.84 | 12.35 |
| line length (m) | 6.13 | 6.44 | 6.75 | 7.06 | 7.36 |
| total line length (m) | 226.6 | 238 | 249.5 | 260.7 | 271.9 |
| maximum chord (m) | 2.49 | 2.62 | 2.74 | 2.87 | 2.99 |
| minimum chord (m) | 0.59 | 0.62 | 0.65 | 0.68 | 0.71 |
| weight (kg) | 2.95 | 3.2 | 3.4 | 3.64 | 3.85 |
| certification (EN/LTF) | B | B | B | B | B |
| riser length (mm) | 500 | 500 | 540 | 540 | 540 |
| speedway (mm) | 130 | 150 | 170 | 170 | 170 |
Weight ranges
Colours

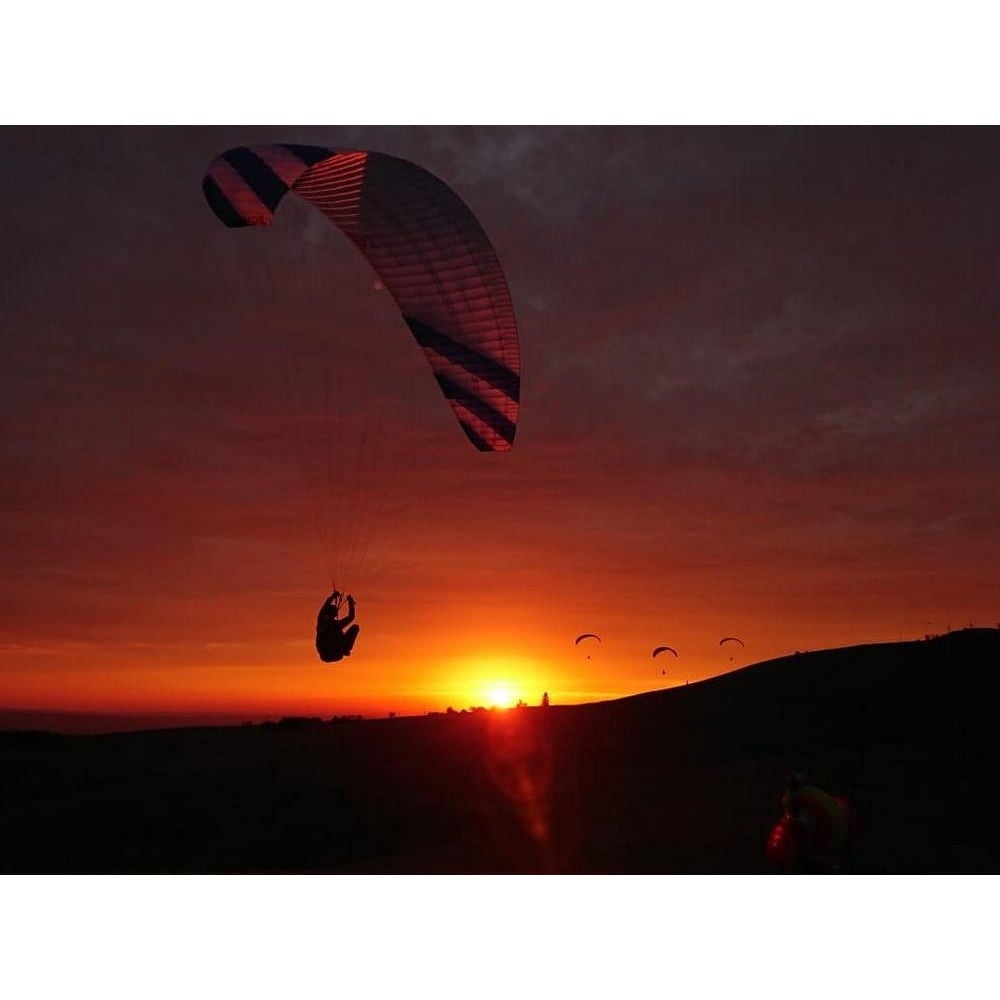

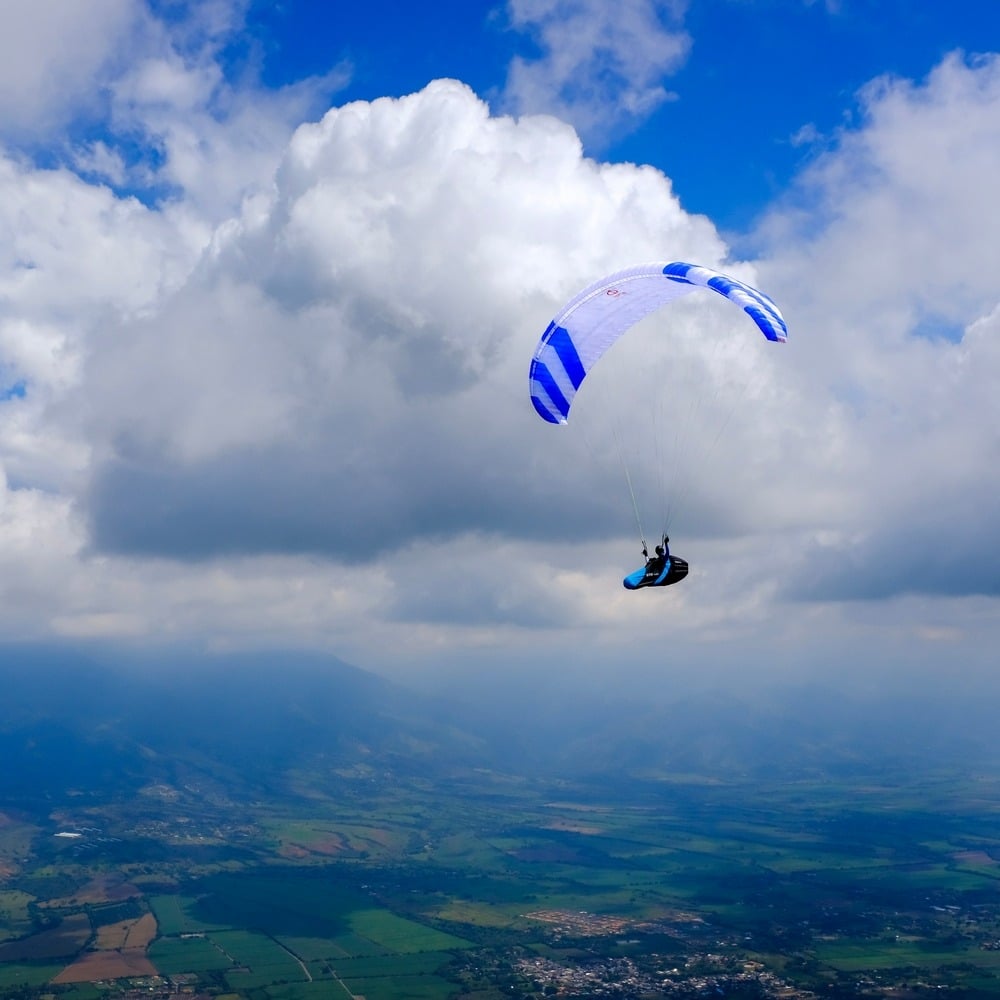

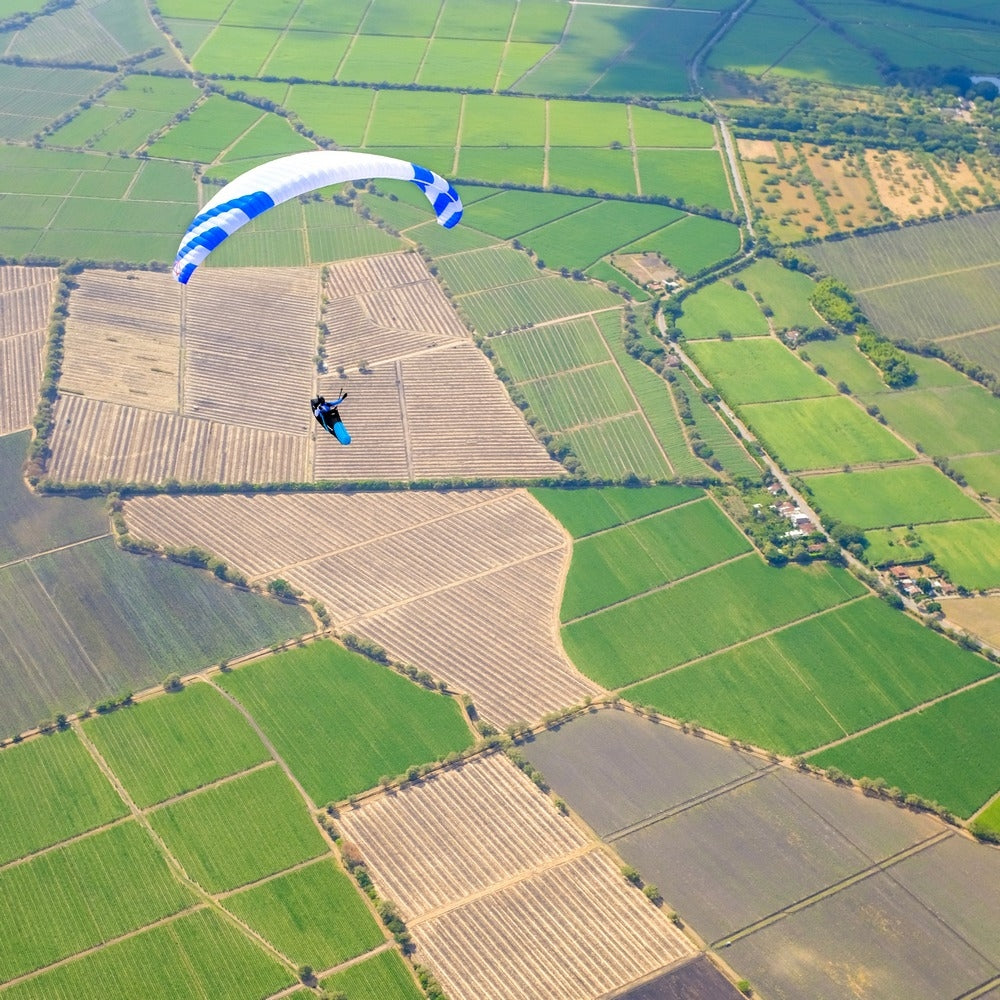

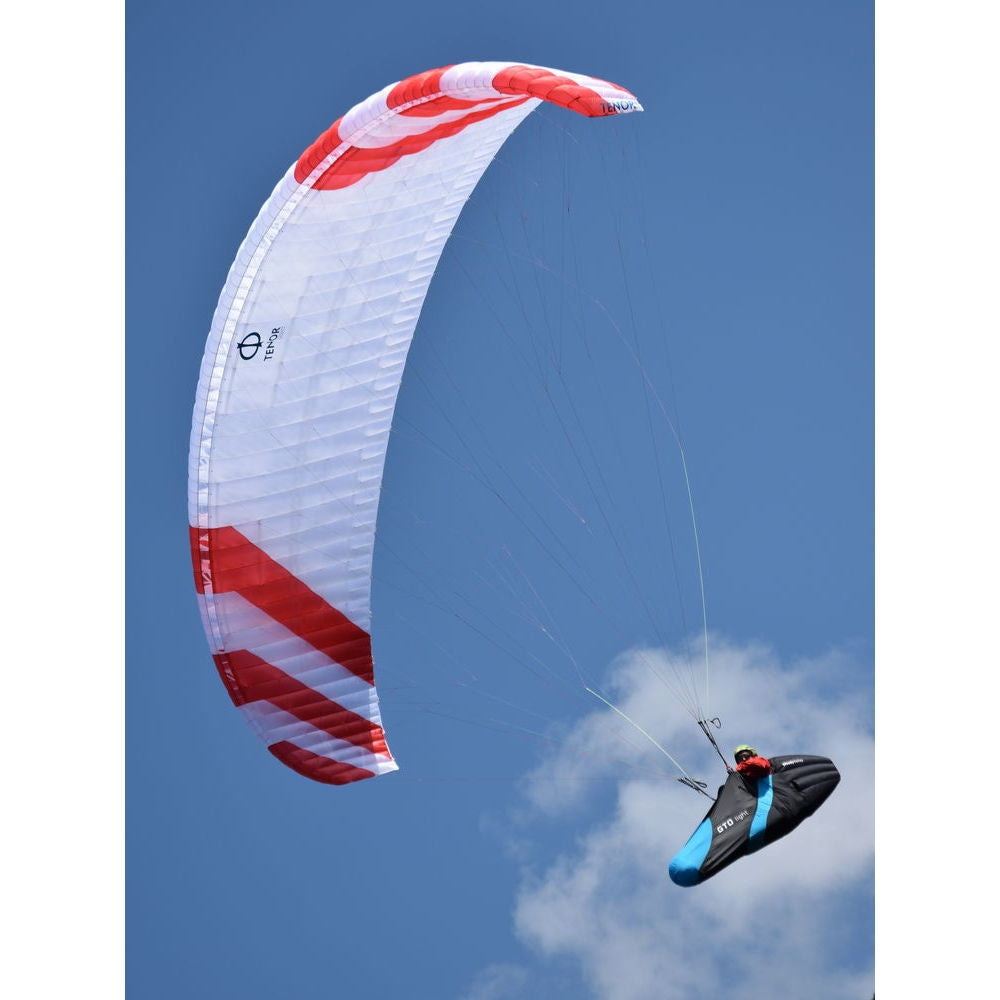

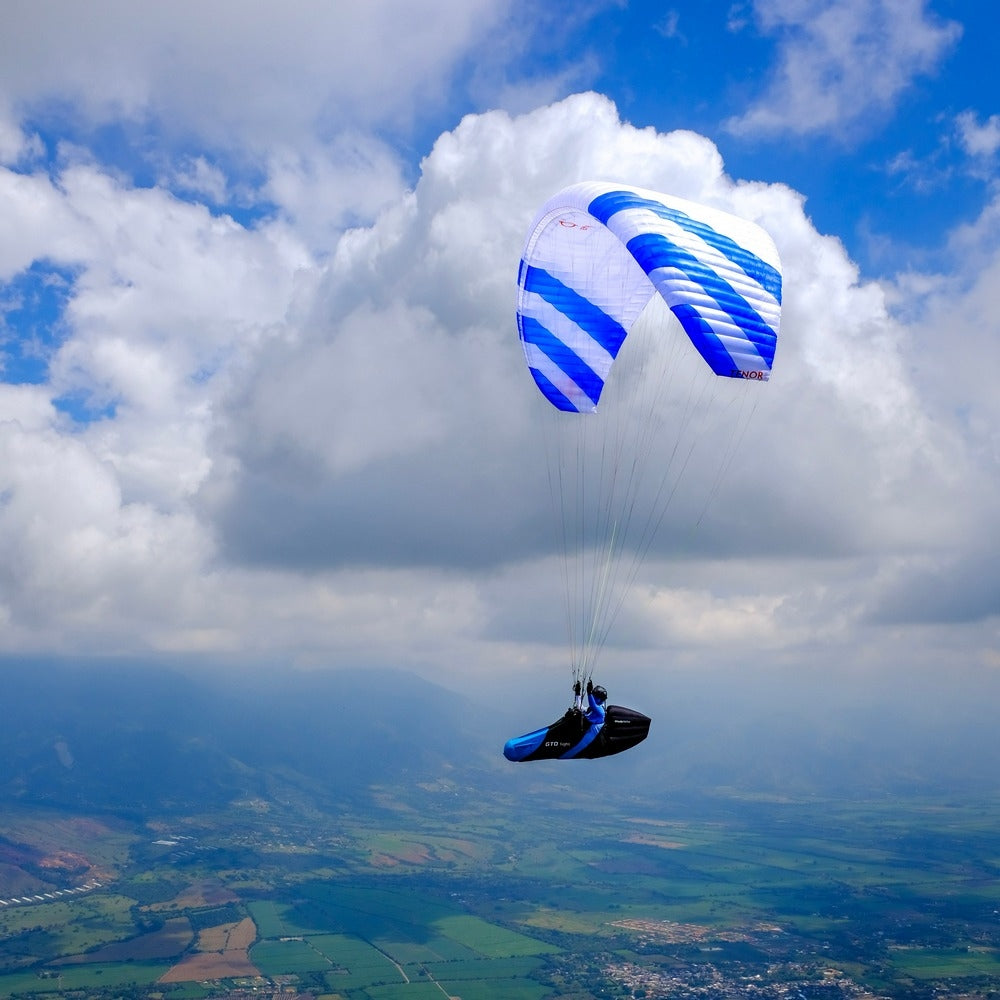

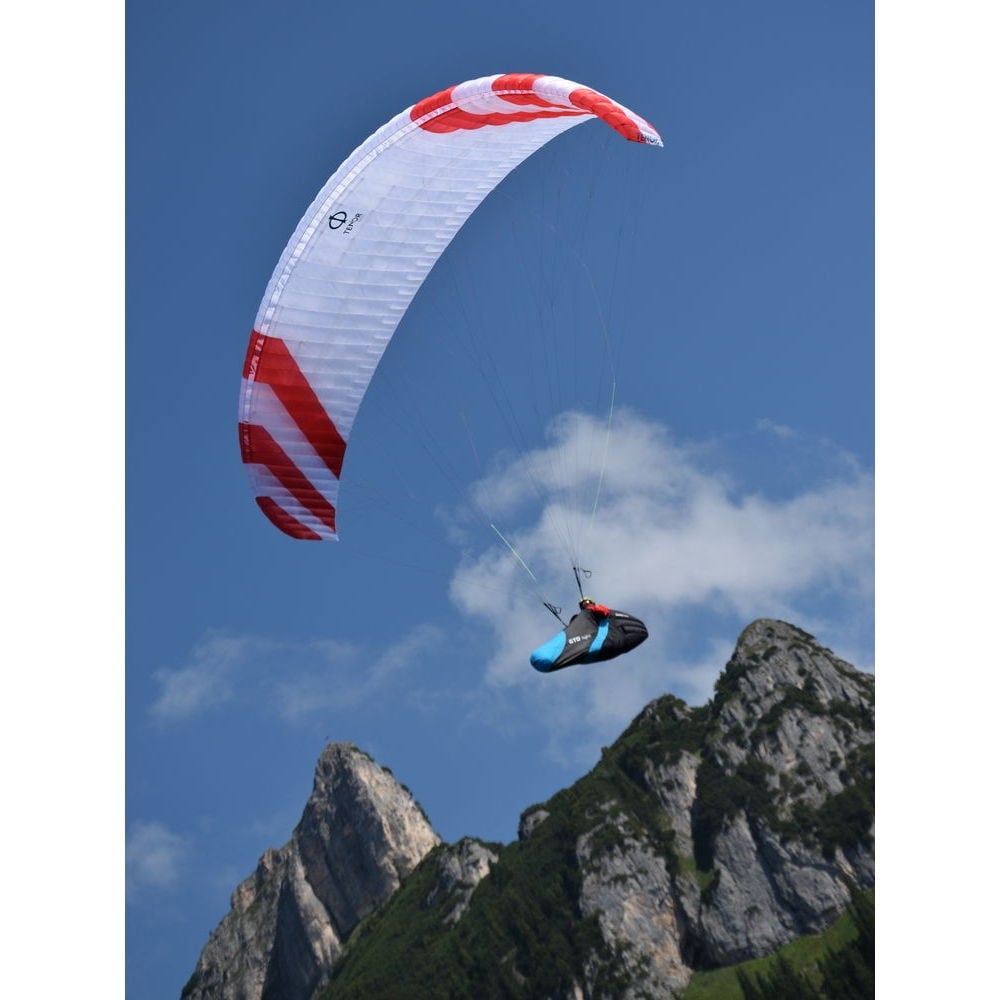

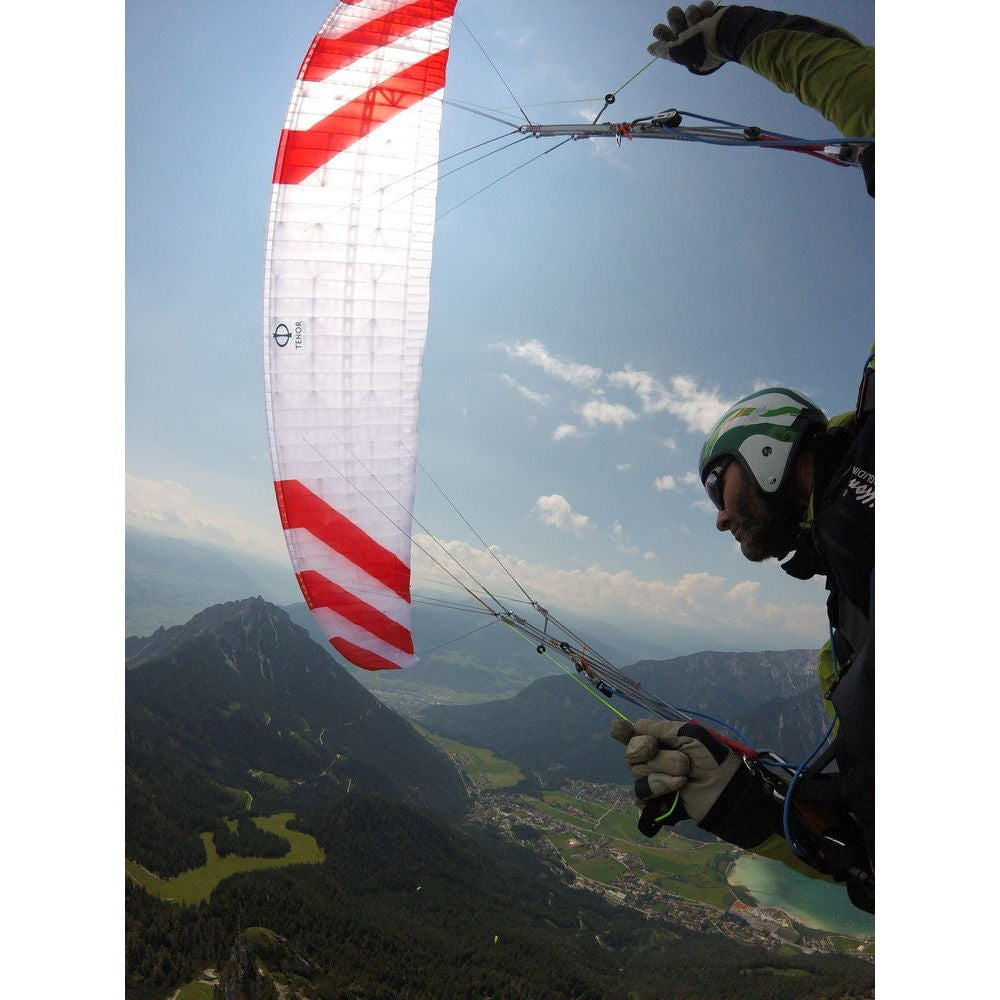

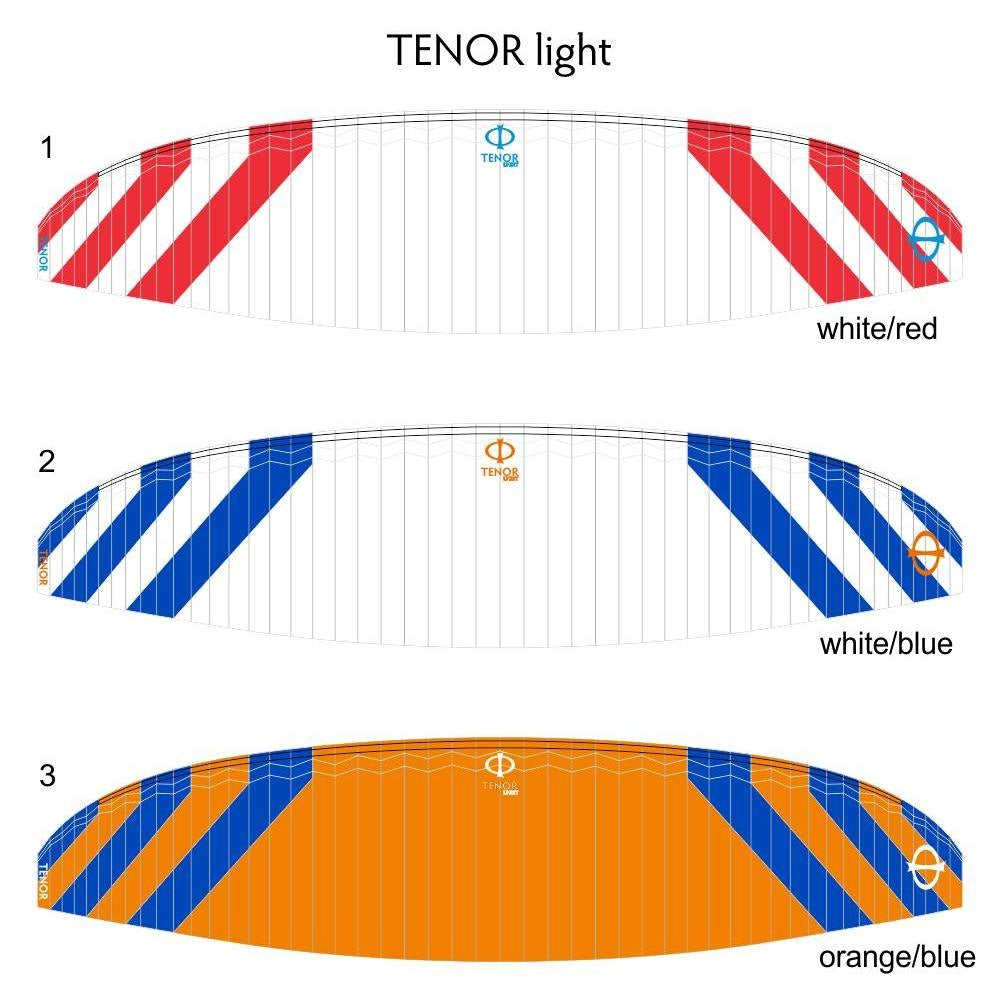

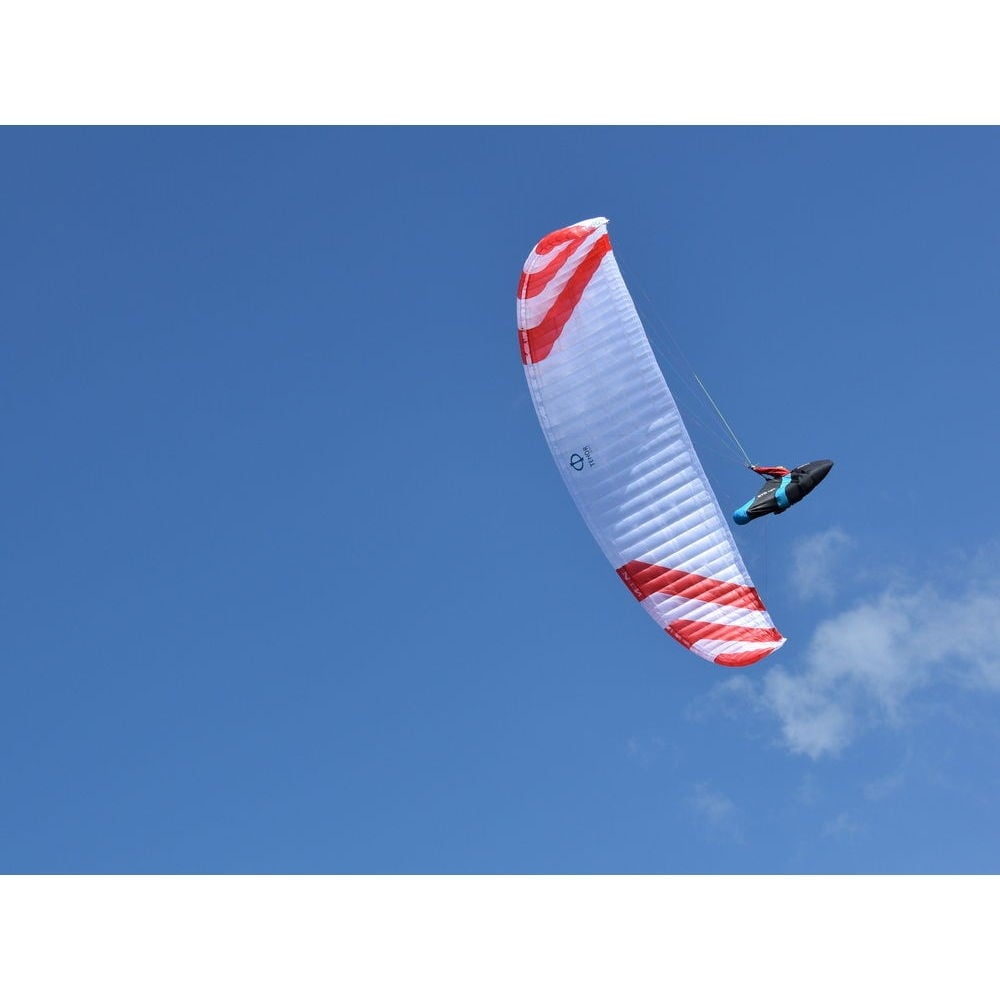

Standard colours: CC1 (White-Red), CC2 (White-Blue), CC3 (Orange-Blue)
Standard colour: CC3 (Orange-Blue)
Custom colours (extra cost, longer delivery)
This wing can be ordered in custom colours. Colours can be chosen from the available serial colours. There is an extra cost and longer delivery time for this; see product options. Full payment is required in advance for all custom colour orders, and one placed these orders cannot be cancelled for any reason. Quoted delivery times are estimates, and may take longer. Email us your desired custom colours with your order, ideally with both text and a screenshot.
Package
Wing, concertina bag, repair material.
TENOR light: lightness at its best
The TENOR light uses modern light construction insights to combine high aerodynamic efficiency with exceptional form stability and incredibly low weight. The performance and speed enables ambitious Hike & Fly adventures that can be relaxing at the same time.
Such lightweight performance and safety has never been seen before! Try it for yourself.
Designer's note
The weight reduction of the TENOR light over the normal TENOR is offering even better recovering after deflations and even less dynamic reactions in extreme manoeuvres. So it was possible to rise the max take off weight by 10kg. This has to be seen as an extended weight range, for pilots who want to fly a high loaded, small, light and very agile wing, offering extreme fun and performance at speed.
Hannes Papesh
Secrets
We played a lot with the rigging system to improve the angle of attach being optimal reduced over the wingspan by stepping into the speed system. Another main point was the high form stability in turbulence or when the brakes are pulled a little.
Testing
Mike and Benni are known to do very hard testings. This is paying off for the pilots when the conditions are getting rough.
Material
Porcher Porcher Skytex 32 / 27.

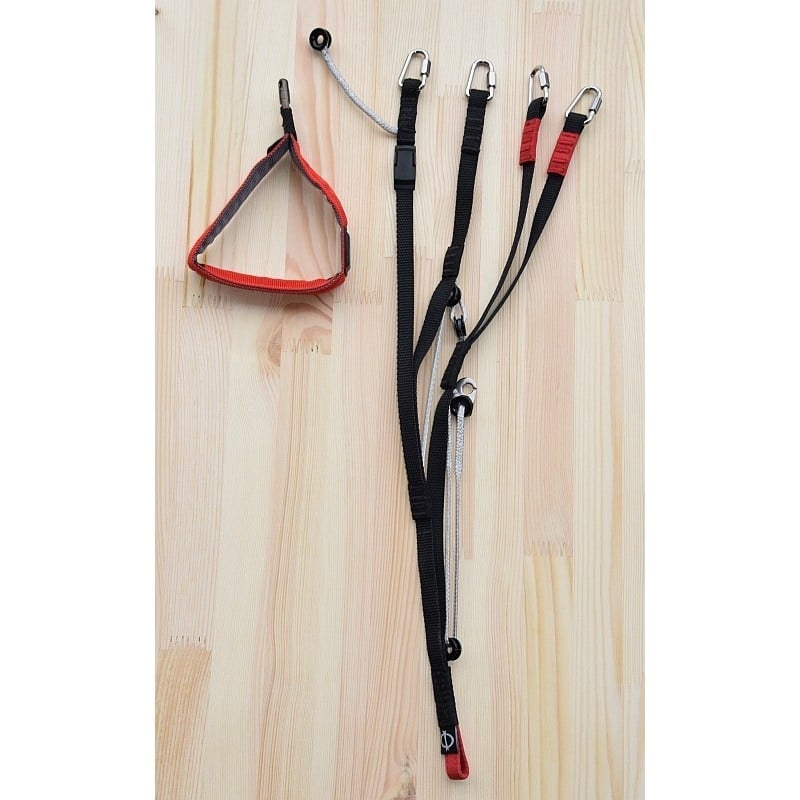

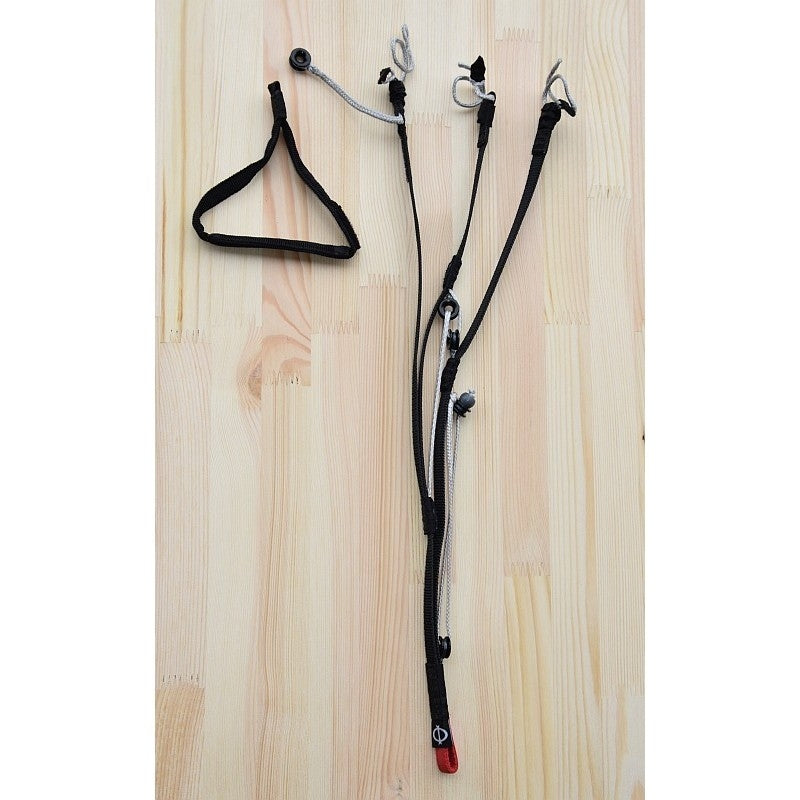

Risers
Standard: Semilight R04 (recommended)
Optional: Superlight RZ3, Superlight + R03
See Phi risers
Reviews
Read Flybubble's expanded written review of the Phi TENOR LIGHT
Phi Promise Guarantee
All PHI wings are covered by the Phi Promise Guarantee. All damages repaired in the first year of use.
Product registration
Register your PHI product here.
