Gin Bonanza 2

£3,999.00

Product code: GIN-BONANZA2

Stock status. Shipping estimate from item in stock. To order, 1-6 weeks

1-3 workdays

Status: Current model

Condition: New

* Required Fields

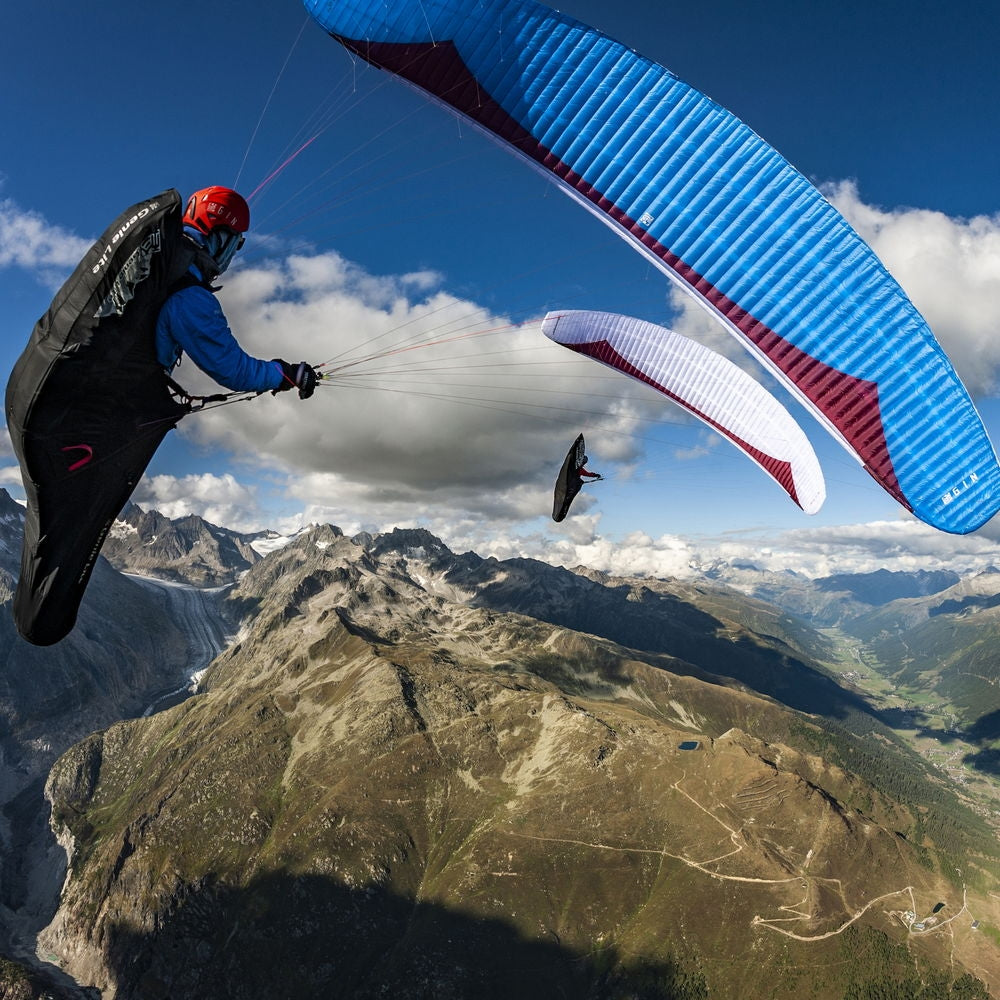

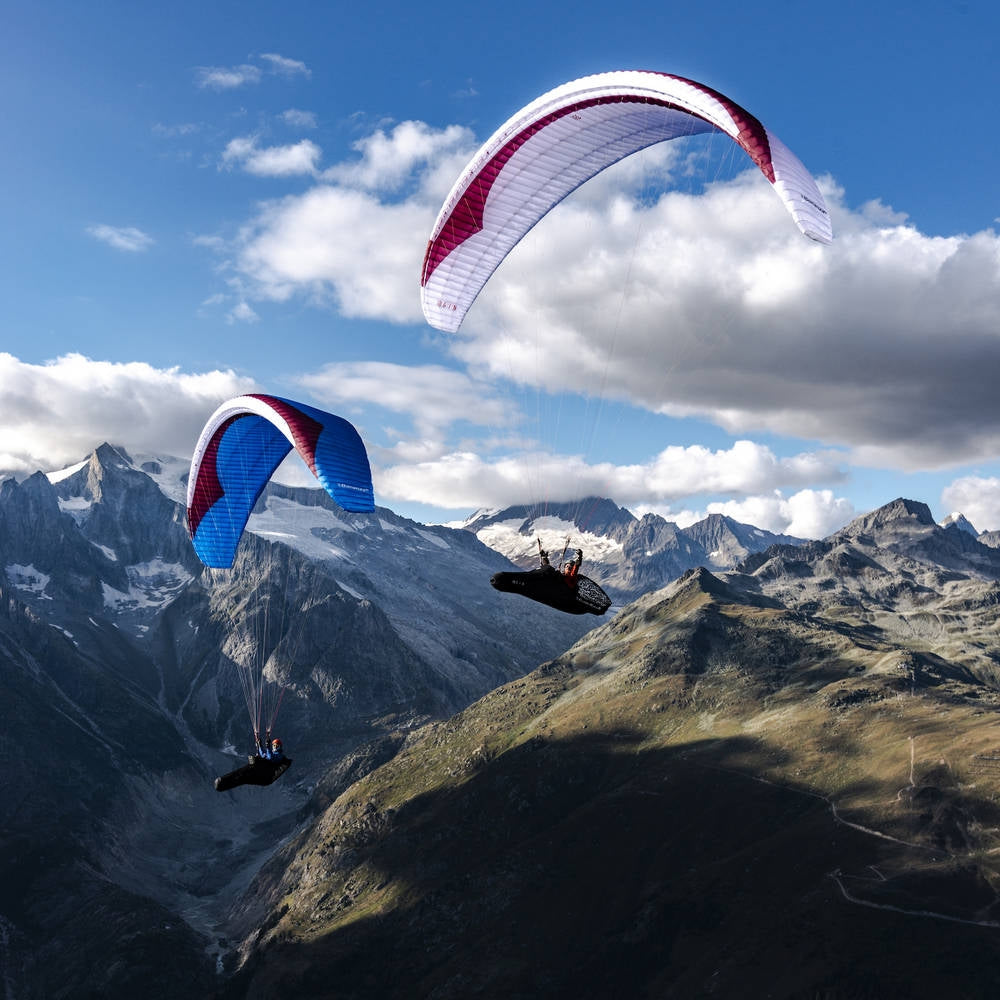

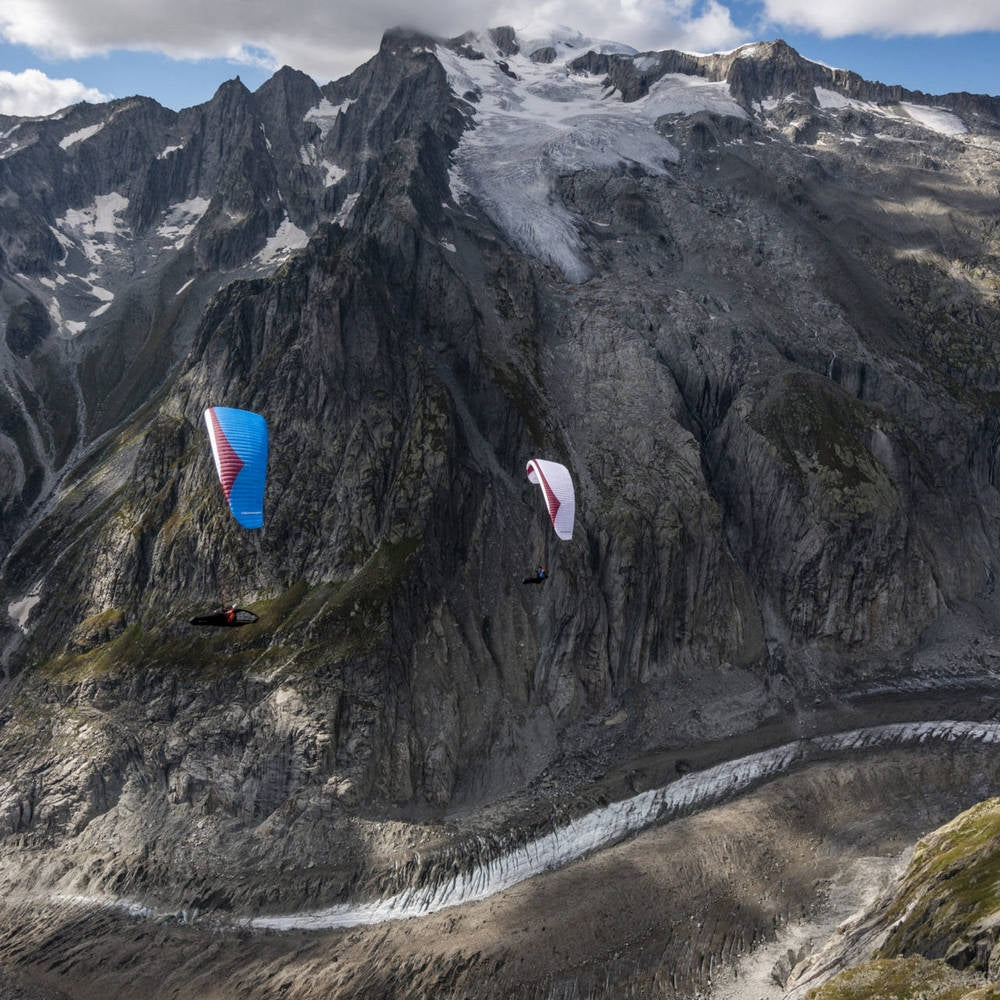

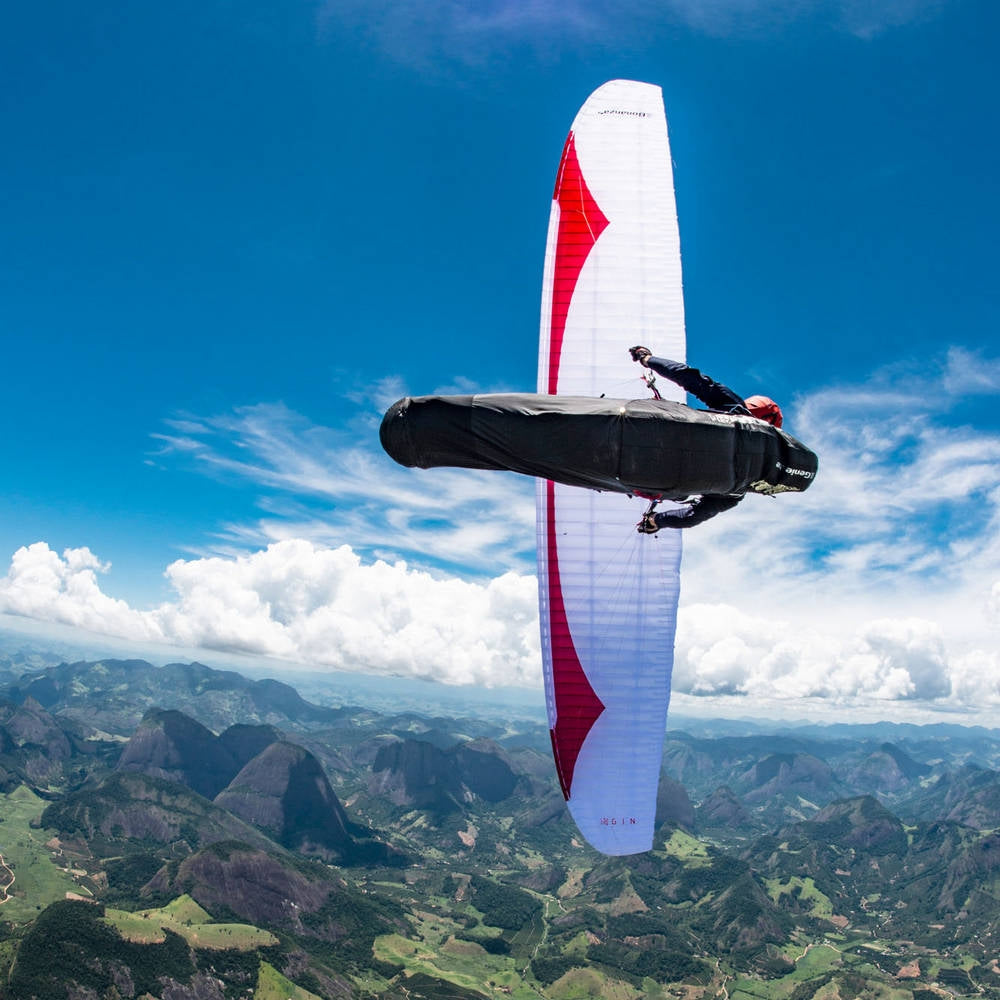

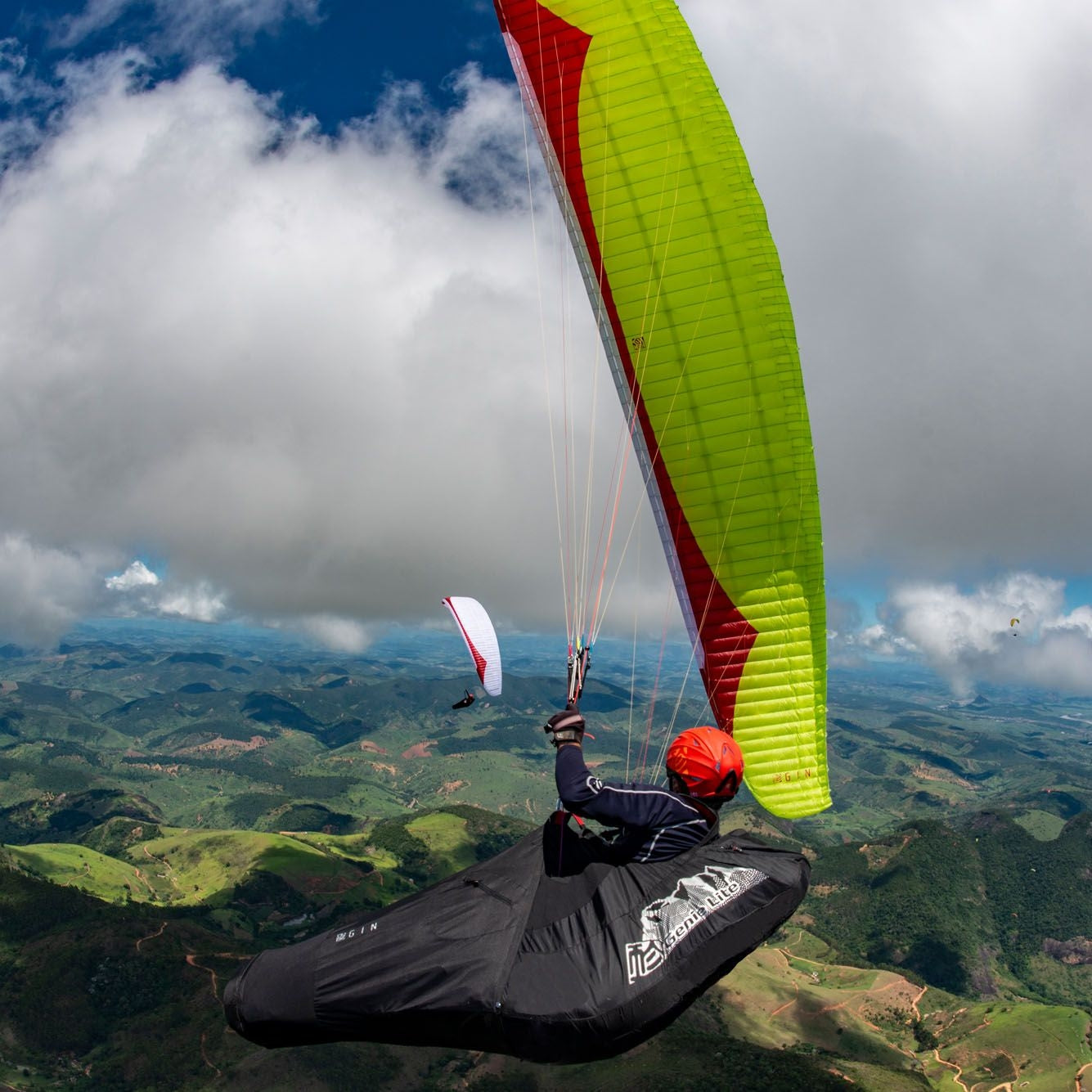

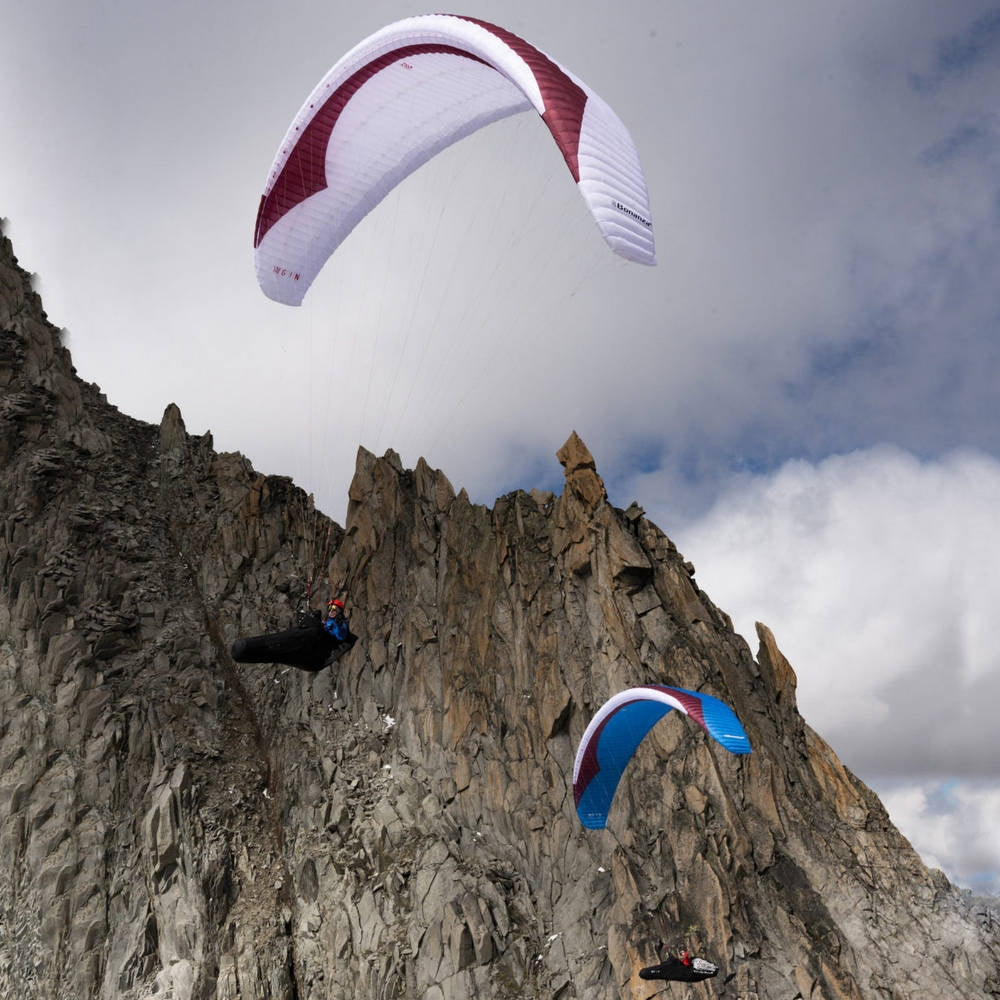

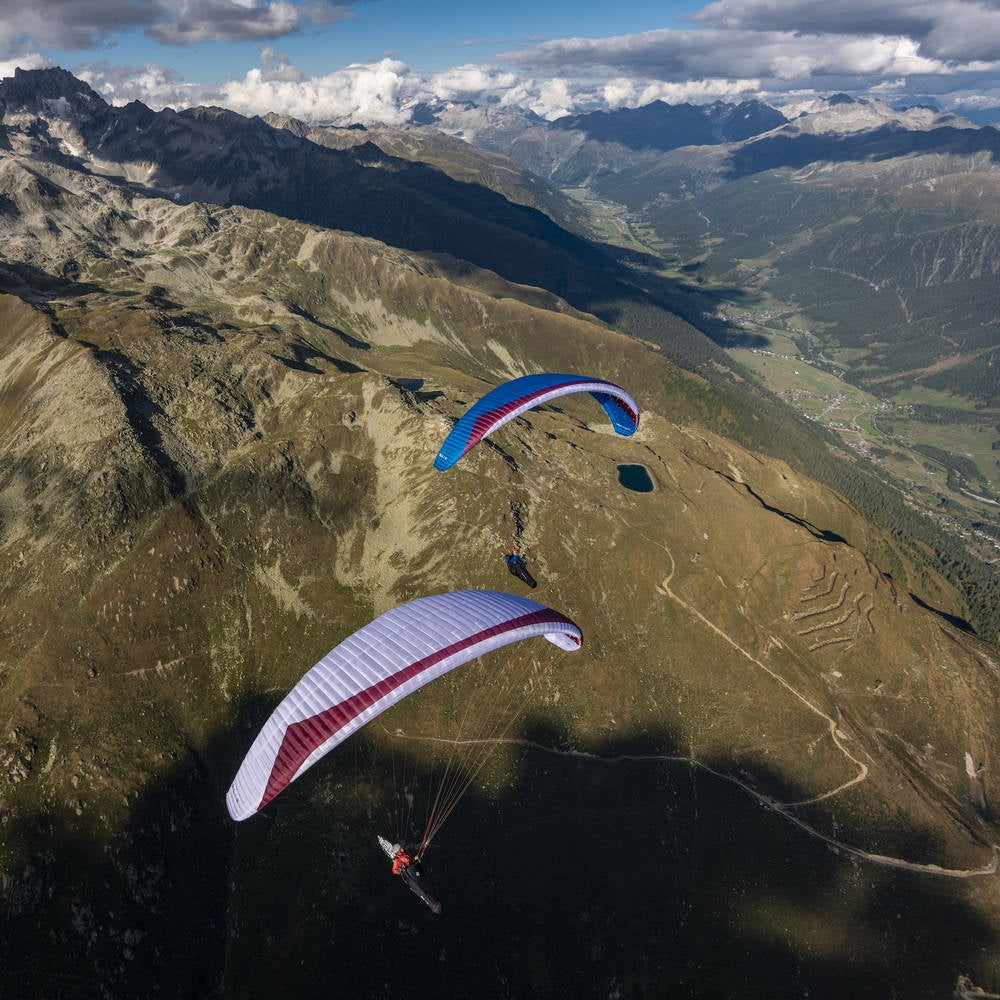

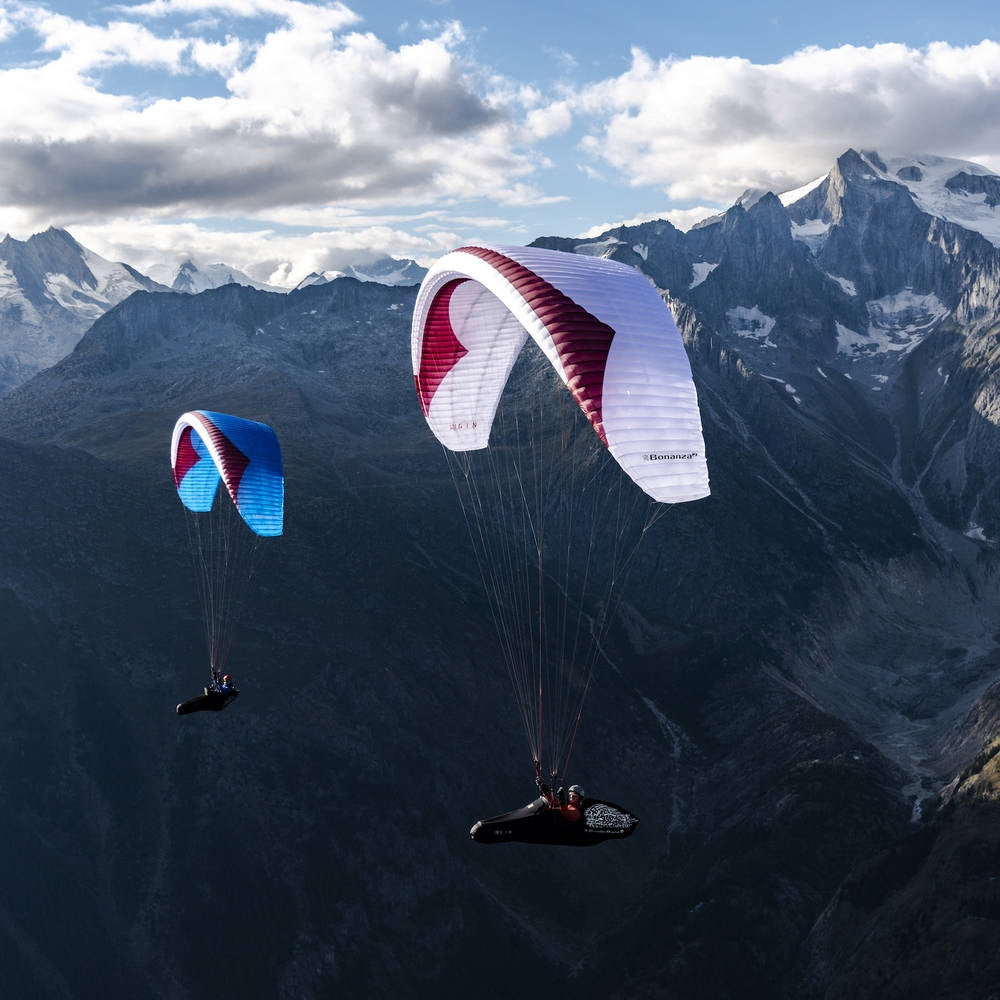

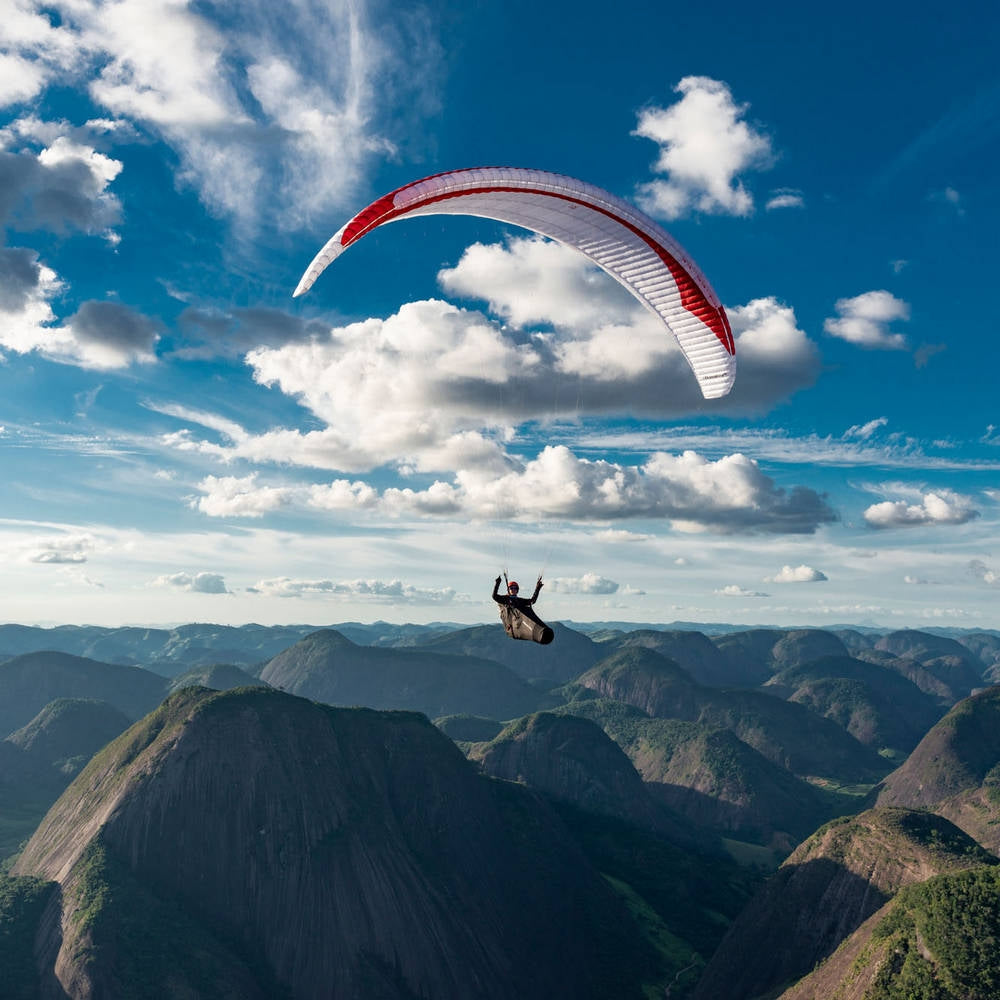

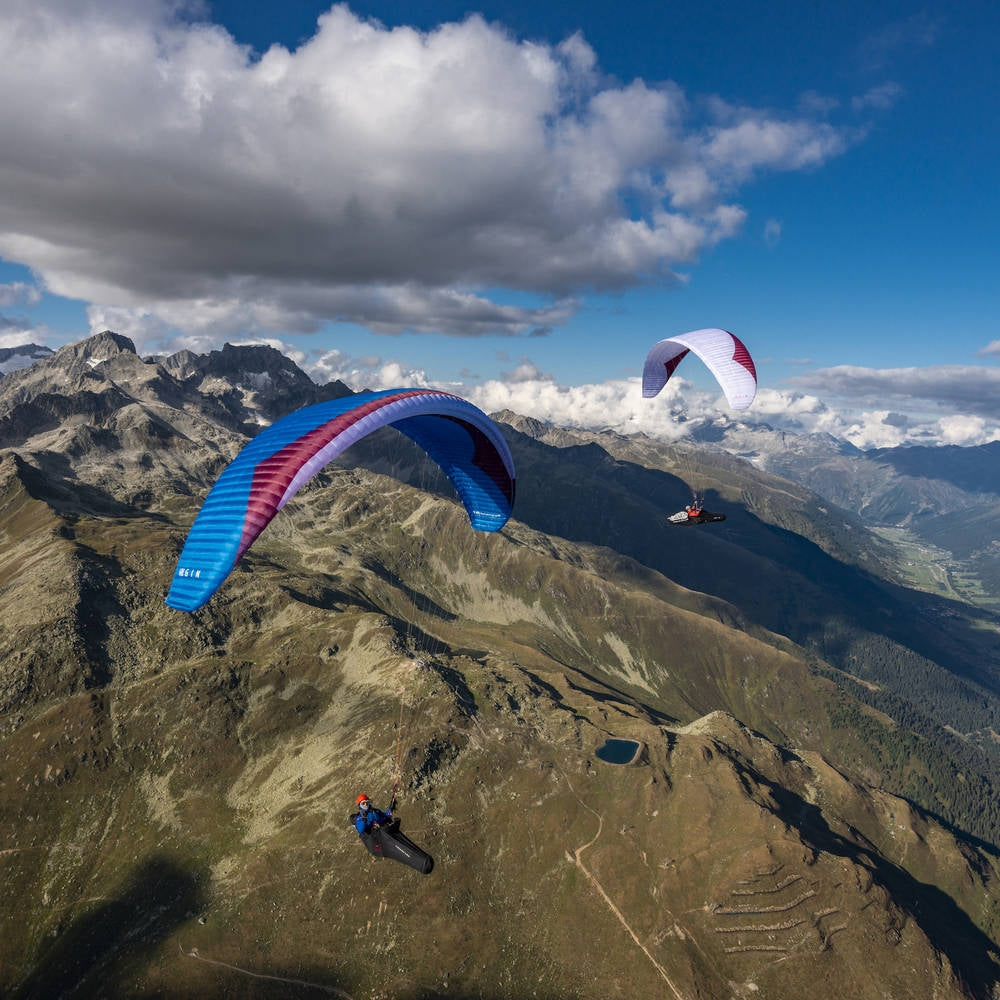

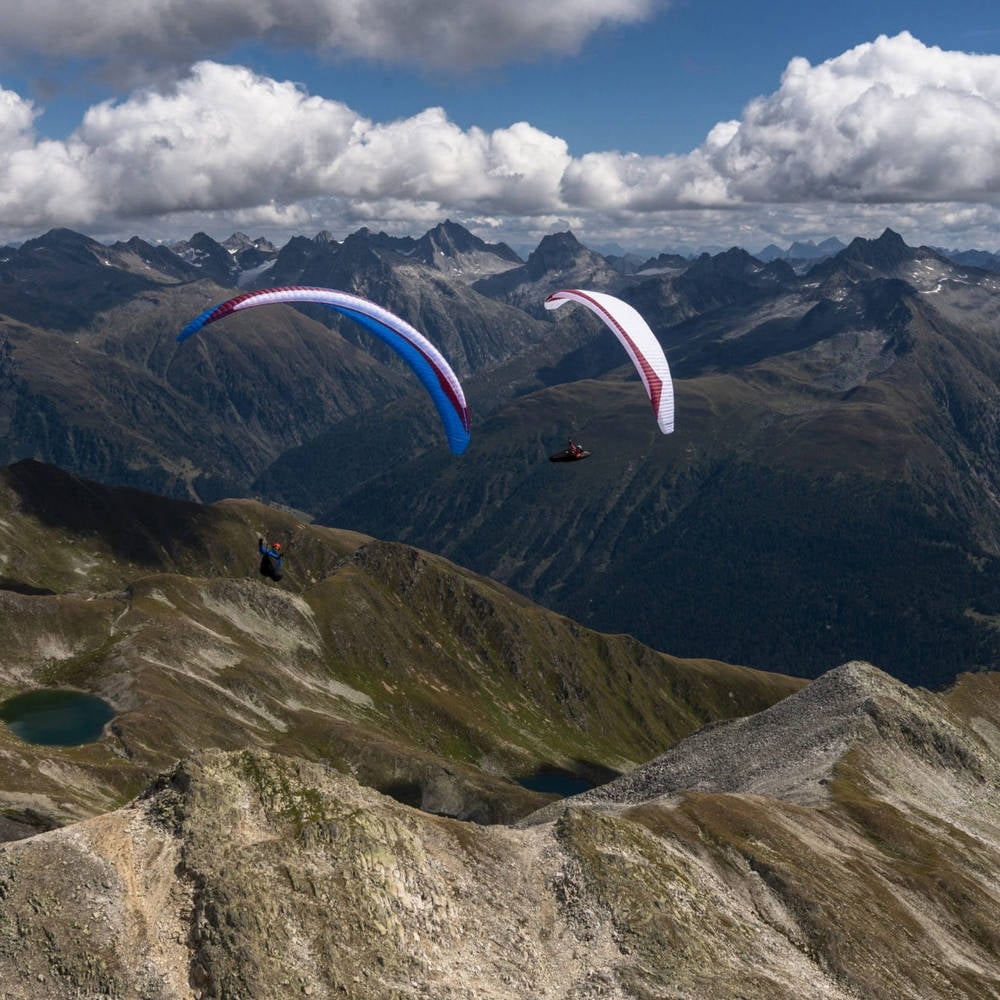

The Bonanza 2 is Gin Gliders' new high performance Sports Class wing for XC pilots who appreciate both ease and performance.

Bonanza 2: For XC Purists

The Bonanza 2 was born to chase the horizon. The GIN R&D team spent a lot of time perfecting the wing’s flying characteristics on the speed bar, as this is crucial for XC performance. The wing accelerates rapidly, has outstanding performance over the entire speed range and excels in turbulence and headwinds. Besides this, it is easy to fly, climbs great and is of a modern, semi-light construction.

  • smooth inflation in all wind conditions
  • excellent performance over the entire speed range
  • very stable, especially on bar
  • well-damped pitch control in strong conditions
  • good climbing ability
  • great passive safety compared to the level of performance

Bonanza 2: For XC Purists

Technical Specifications

SIZEXXSXSSMLXL
Flat area (m2) 19.4 20.7 22.6 24.5 26.5 28.6
Flat span (m) 11.18 11.54 12.06 12.56 13.06 13.57
Flat aspect ratio 6.44 6.44 6.44 6.44 6.44 6.44
Projected area (m2) 16.63 17.75 19.38 21.01 22.72 24.52
Projected span (m) 9.04 9.34 9.76 10.16 10.57 10.98
Projected aspect ratio 4.92 4.92 4.92 4.92 4.92 4.92
Chord (m) 2.17 2.24 2.34 2.44 2.54 2.64
Number of cells 71 71 71 71 71 71
Glider weight (kg) 4.5 4.65 5.15 5.3 5.7 5.95
Certified weight range (kg) 60-75 65-85 75-95 85-105 95-115 105-130
Certification EN C EN C EN C EN C EN C EN C

Designer notes

The original Bonanza remains one of Gin Seok Song’s favourite designs of his 40 year career. Gin believes the Bonanza 2 to be a worthy successor. Gin explains:

“We worked more than two years on this glider and I experimented a lot with new techniques, but finally my experience led me to finish this glider as it is now. The aspect ratio and planform was fixed already at an early stage. As with our other recent wings, we spent a lot of time optimising the sail tension, 3D shaping and line materials and diameters.

Internal construction is also incredibly important for this class of glider. Most of the three cell blocks are connected with “cross-beams”, which give much better stability and performance. As a result, the glider keeps the arc, even if the speed bar is pushed to the maximum. I recommend using the speed bar as much as possible! The glider is not only very stable over the entire speed range, but the acceleration is rapid and smooth. Performance stays good as well!”

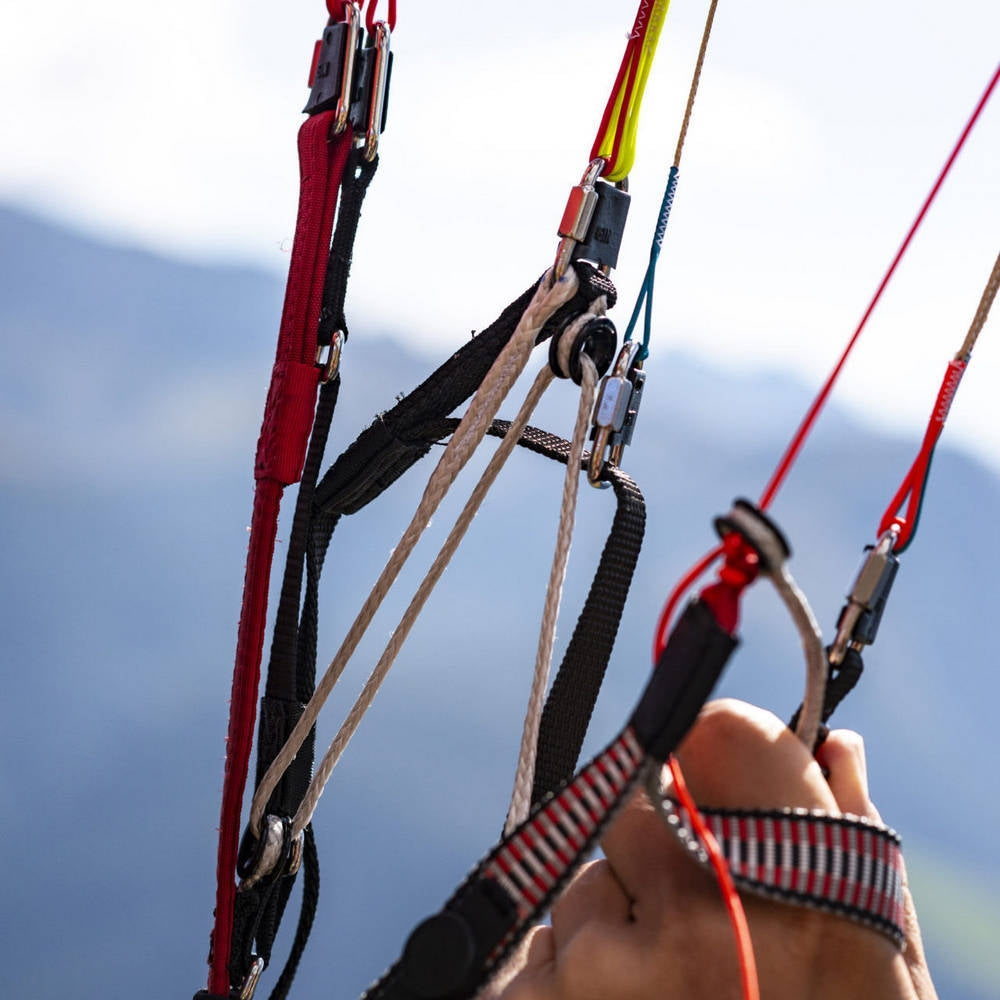

C-riser steering with Smart Risers

The Bonanza 2 also features new Smart Risers for easy pitch control. By acting not just on the C-riser but also on the B-riser, rear riser control is very even and progressive.

The flying characteristics on bar – combined with excellent climbing ability and good passive safety – make the Bonanza 2 a dream wing for pilots who want to fly far with ease.

The Bonanza 2 was born to chase the horizon.

Details

  • Optimized airfoil with Equalized Pressure Technology (EPT) for stability and performance
  • Unsheathed aramid lines with optimized diameters
  • 3 risers / 3 lines spanwise
  • Colour-coded stabilo line for easy identification
  • Optimized internal construction with “cross-beams” to give better stability and performance
  • Improved sail tension on the leading edge
  • Mini-ribs on the trailing edge improve handling and performance
  • Speed system with Harken pulleys
  • Gathering (reefing) system on the trailing edge
  • Fabric selected for ideal compromise between durability and light weight: 38g/sqm front top and bottom and 32g/sqm rear top and bottom
  • Smart riser system for effective rear riser steering

Materials

Canopy cloth

  • Upper surface leading edge: Porcher Skytex, 38 g/m2 (water repellent)
  • Upper surface: Porcher Skytex, 32 g/m2 (water repellent)
  • Lower surface: Porcher Skytex, 32 g/m2 (water repellent)

Lines

  • Upper: Edelrid 8000 / U-050 / 070 / 090 (unsheathed aramid)
  • Middle: Edelrid 8000 / U-050 / 070 (unsheathed aramid)
  • Main: Edelrid 8000 / U-070 / 090 / 130 / 190 / 230 / 280 (unsheathed aramid)

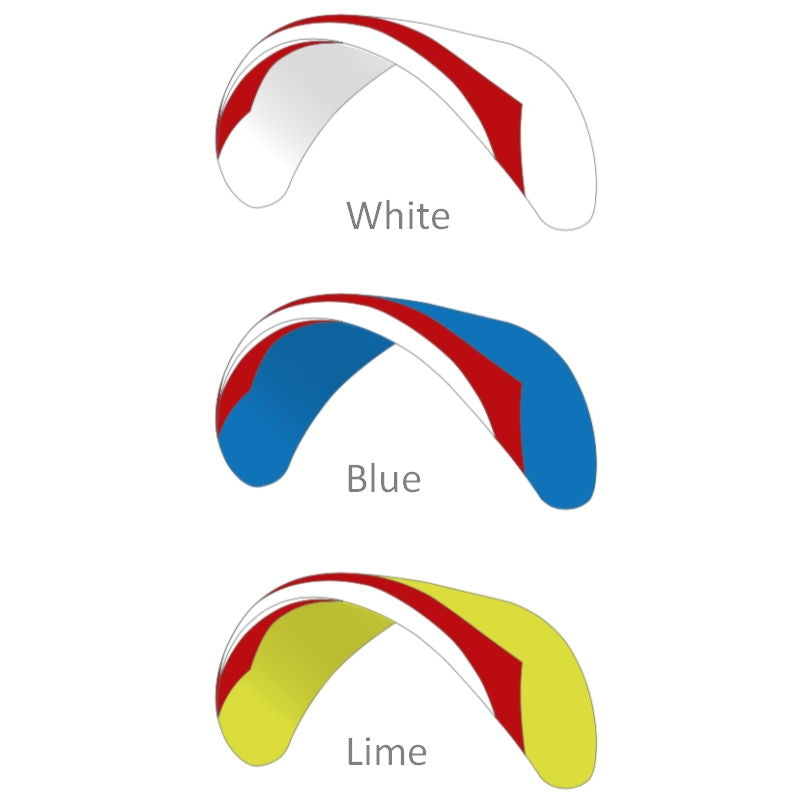

Colours

Standard colours: Blue, White, Lime

Standard colours: Blue, White, Lime

Included with your glider

Rucksack, inner bag, compression strap, repair tape, stickers.

Included with your glider

Downloads

Manual: EN | DE | FR

EN test reports: XXS | XS | S | M | L | XL

Gin Bonanza 2 reviews

Read our expanded written review of the Gin Bonanza 2

Additional Information

Condition New
EN Certification EN C
LTF Certification LTF C
Shipping Details 1-3 workdays
Model Status Current model
